TECHNICAL INFORMATION

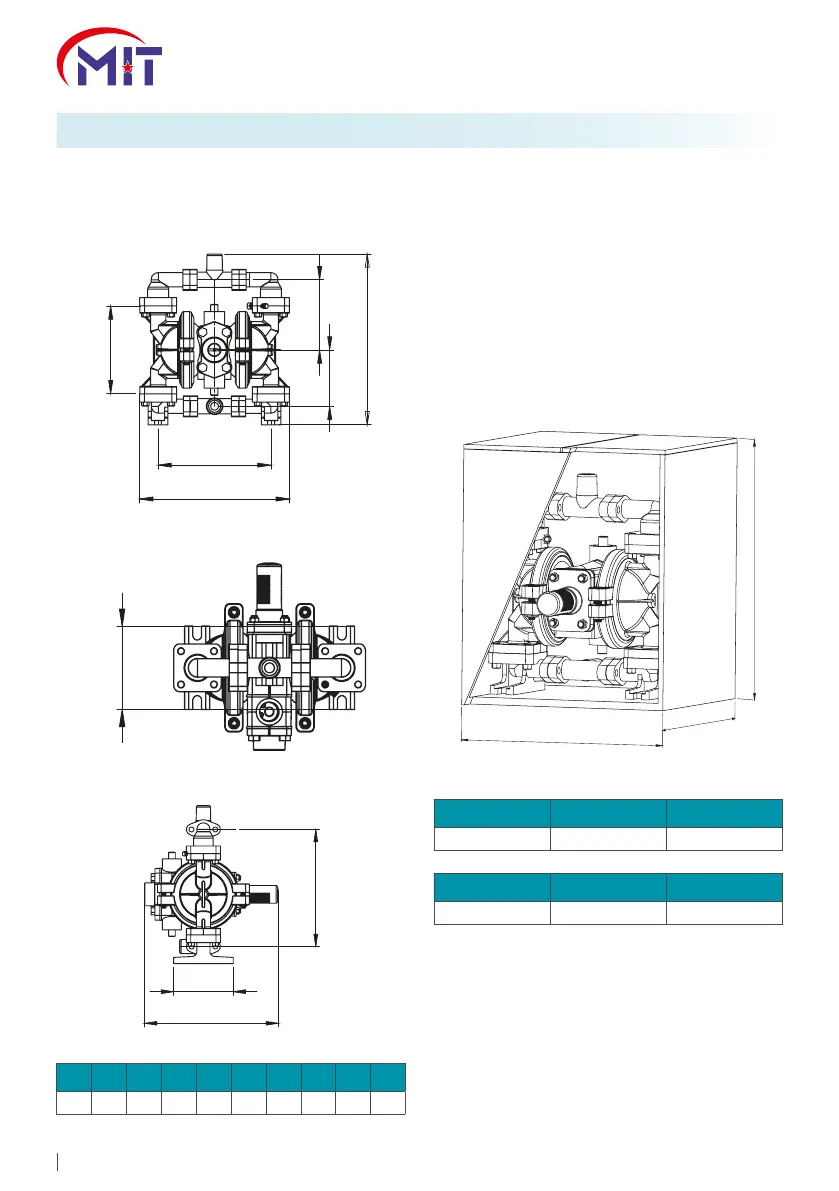

MIT 160 Technical Information
A B C D E F G H I J
212 70 87 186 140 109 157 180 80 80
Pump Weight Package Weight Gross Weight
1.650 kg 250 kg 1.900 kg
A B C
190 150 230
F
E
D
B
A
C
H
G
I
A
B
C
Packaging Sizes and Weights
As it is seen in the following gure, the diaphragm
pump is connected to pump xing board from
its stands via bolt and nut. Lean of the pump is
prevented during transport.
Scaling With Plastic Body
Plastic Body
