MIT 160

12
25
26
12 15
14
13
8
27
17
2B
2C
18
20
21
10
22
9
3
5
6A
29
30
31
24
24
28
6A
6A
6A
6
6
2
1
2C
2B
4
23
19
16
11
1A
31
30
31
31
31
2A
30
7
5

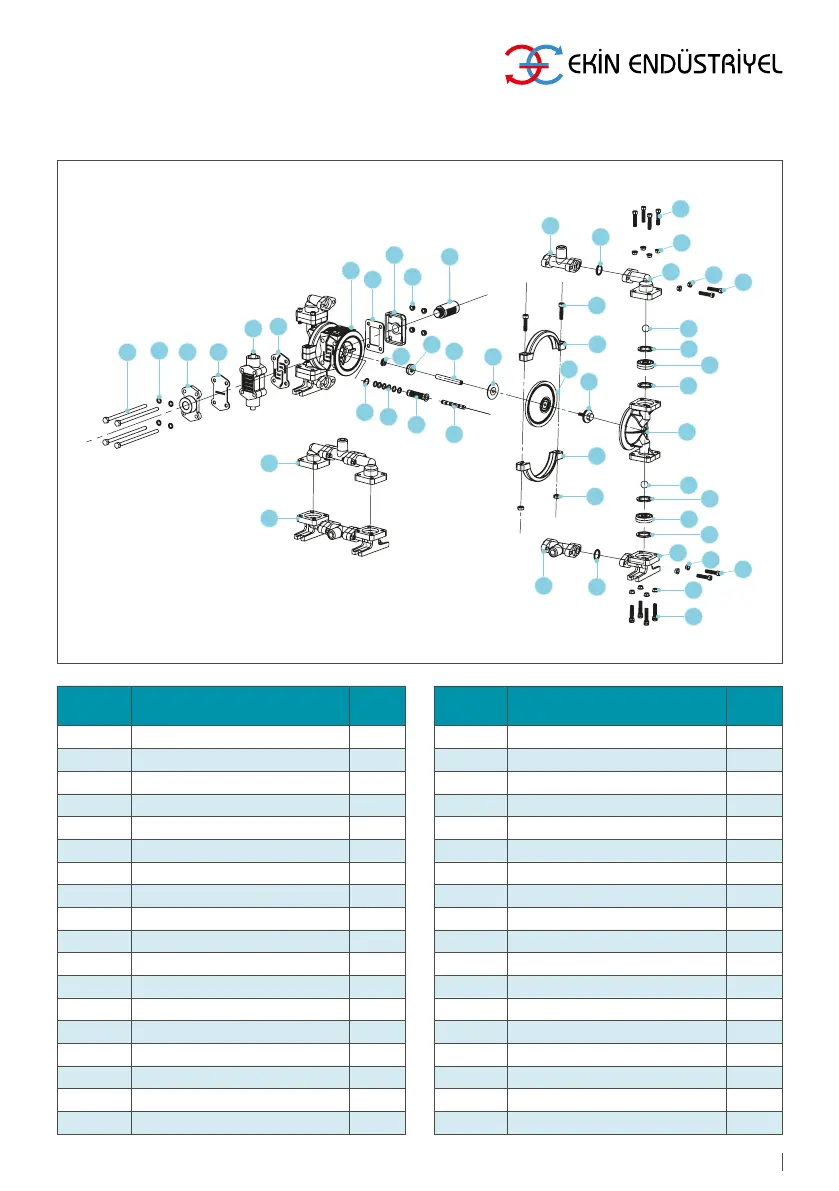

Spare Part Drawing (Plastic)
Item No Desctription Piece
1 Suction Line 1
1A Elbow, Suction 2
2 Discharge Line 1
2A Elbow, Discharge 2
2B Manifold, Vertical 2
2C Seal, Manifold 8
3 Main Body 1
4 Chamber Outher 2
5 Ball, Check 4
6 Ball Seat 4
6A Gasket, Ball Seat 8
7 Diaphragm 2
8 Cap, Air Inlet Exhaust 1
9 Air Valve Body 1
10 Bumper 1
11 Ring Retaining, For Pilot Valve 1
12 Cap, Air Inlet 1
13 Gasket, Air Discharge 1
Item No Desctription Piece
14 Gasket, Intermediate Bracket 1
15 Gasket, Valve Body 6
16 O-Rings, Pilot Valve Case 2
17 Plate, Inner Diaphragm 2
18 Plate, Outher Diaphragm 2
19 Sleeve, For Pilot Valve 1
20 Srod, Diaphragm 1
21 Oil Seal 2
22 Mufer 1
23 Spool, Pilot Valve 1
24 Clamp 2
25 Capscrew Hex Head M6x115 4
26 Washer M6 Stainless 4
27 Nut Hex Flange M6 Stainless 4
28
Capscrew Soc Head M6x115 Stainless
4
29 Nut Hex M6 4
30 Capscrew M5x25 Stainless 24
31 Nut Hex M5 Stainless 24
