20
4. Press the arm downwards to the horizontal position. You will feel some
resistance while doing so. This is normal as the pressure starts to secure the
CPU in place.

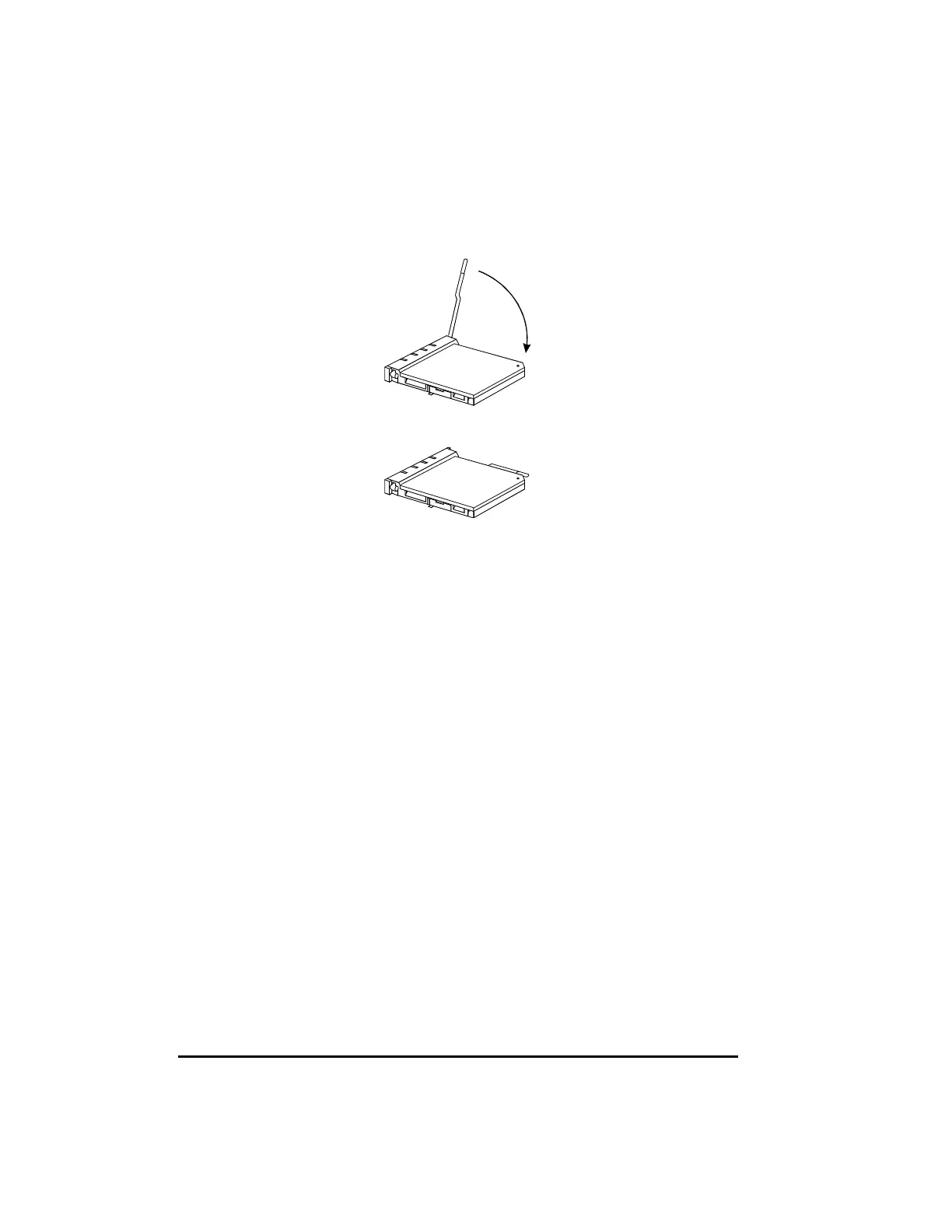

Figure 4-2. Installing CPU
