5
2. MACHINE DESCRIPTION

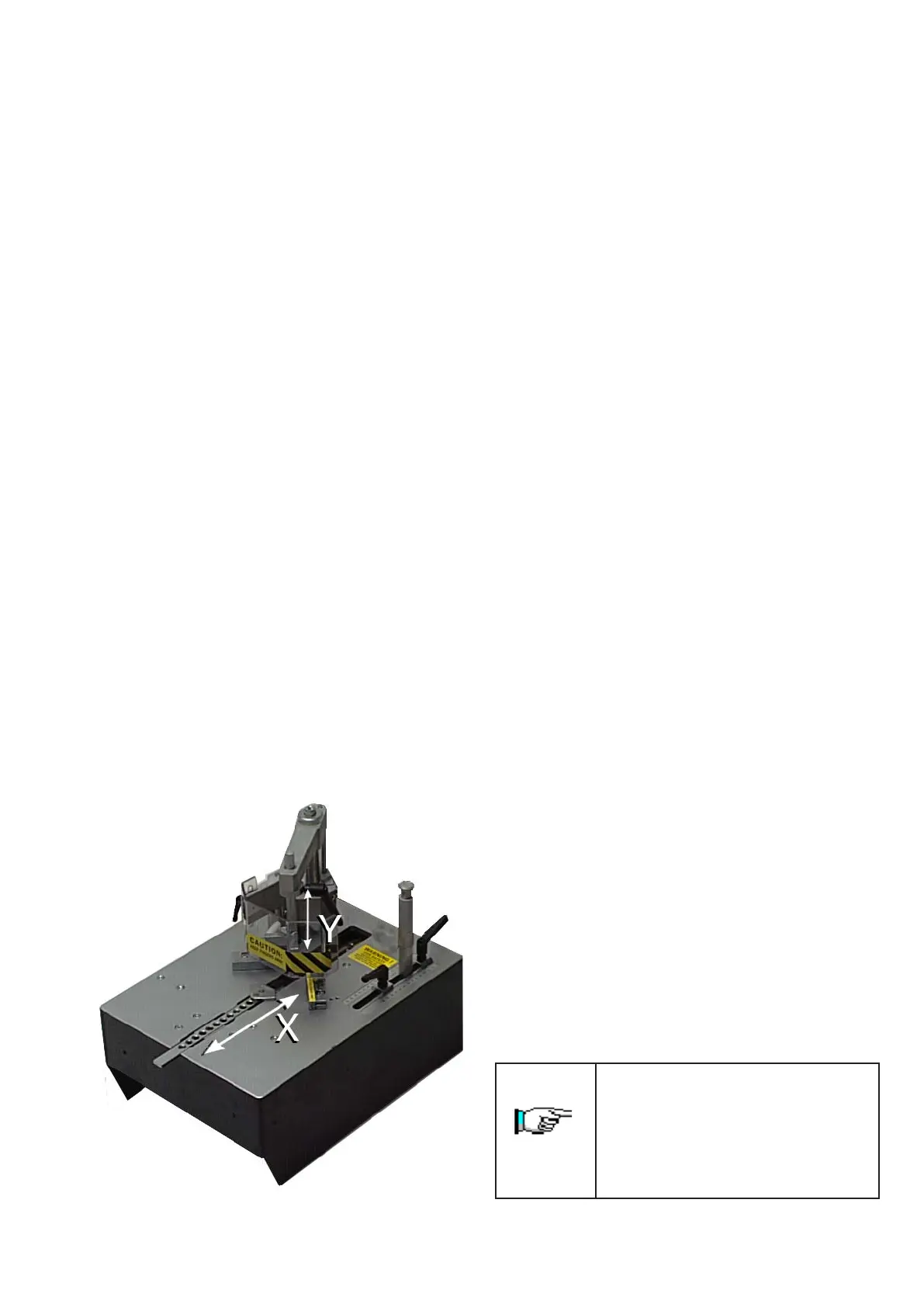

2.3 MACHINE STRUCTURE
The movement directions during the machine working are
the followings:
- X AXIS
Movement of the horizontal clamp
- Y AXIS
Movement of vertical clamp
2.4 DIMENSIONS
The overall dimensions are reported on table 2.9-A
2.5 SURROUNDING CONDITIONS
The machine does not need special surrounding conditions.
It has to be installed inside an industrial building, lit, aired
and with a compact and flat floor. The admitted temperatures
go from 41°F to 104°F (, with an humidity not higher than
50% at 104° F or 90% at 68° F.
2.6 LIGHTING
Premises lighting must be conformed to the norms in force
in that Country where the machine is installed and has to
guarantee a clear visibility and can not create dangerous
situations.
The average quadratic weighed level, according to the
acceleration frequency to which arms are exposed does not
exceed 2,5 m/s2.
2.7 VIBRATIONS
In standard conditions conformed to the indication of
machine proper utilization, the vibrations do not create
dangerous conditions. The average quadratic weighed level,
according to the acceleration frequency to which arms are
exposed does not exceed 2,5 m/s2.
2.8 NOISE EMISSIONS
The machine is designed and projected for reducing the
noise emission level to its source. In standard working
conditions the Machine noise power level is:
Acoustic Continuous Equivalent weighed
pression A <70dB
Acoustic Istantaneous weighed
pression <130dB
The noise levels indicated are emission levels and are not
representative of operating levels. In spite of an existing
relationship between emission levels and exposure ones,
this can not be used in a reliable way to define if further
precautions are necessary. The factors determining the
exposure level to which the working force is subjected,
include exposure length, working premises characteristics
and other noise sources (number of machines, closed bldg,
etc…). Furthermore, the allowed exposure levels could
change according to several different Countries. At any rate,
the information provided, will allow the Machine Operator
to achieve a better evaluation of the danger and risks he is
submitted to.
The indicated noise levels are emission
ones measured in standard conditions of
use. In case of any machine modification,
the above mentioned levels could be
changed and should be checked on the
same machine.
2.1 WORKING PRINCIPLE
The Mitre-Mite VN 42 is a pneumatic frame assembling
machine particularly suitable with large sized frames.
The frame assembling machine Miter Mite VN 42 uses
V-nails with “pulling power” in different sizes.
2.2 MAIN COMPONENTS
The main components constituting the machine are:
• Frontal clamping device to have a perfect joint.
• Position brake to easily insert intermediate V-nails in
any profile
• Adjustable tilting fences.
• Floor stand
• Dual function foot pedal for separate control of clamping
and nail insertion
• Nail heads sizes 7, 10 and 15 mm.
