9
Picture 2
4.6.1 Pneumatic connection
The Mitre-Mite VN 42 works by compressed air and is
controlled by a foot pedal & a thumb-button that allows the
activation of the frontal clamp,vertical clamp and V-nail
firing.
Attach your airline to the machine by using the provided
fast clutch fitting or a different fast clutch fitting suitable
with your pneumatic system.

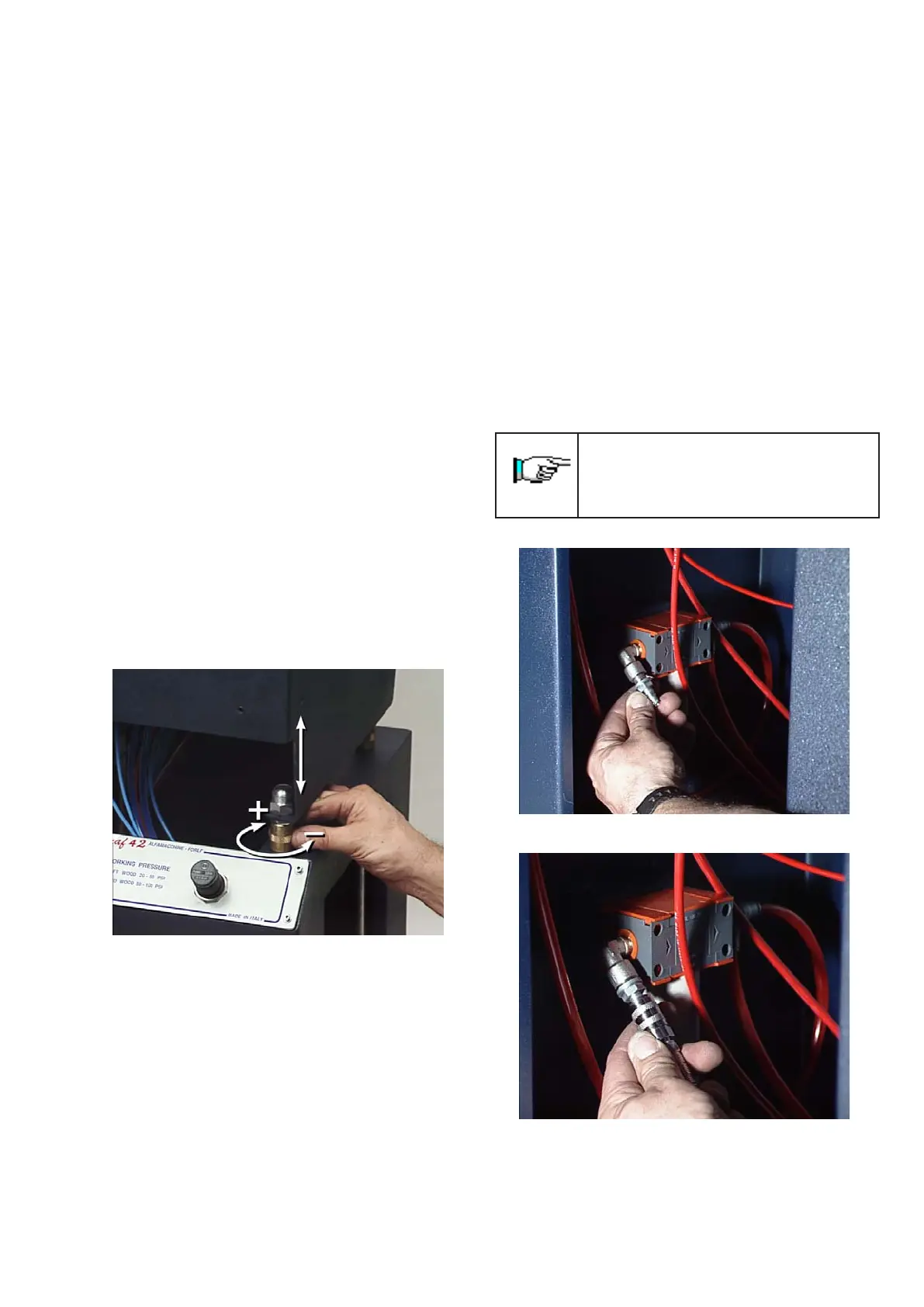

Screw the fitting (see fig. 3-4) into the air filter located on
the right side of the floor stand.
Take the pressure gauge out from the floorstand and screw it
onto the air filter. Then connect your air supply line to the
machine.
It is advisable that you use silicone oil for
pneumatic systems. Avoid generic lubricating
oil. The use of inappropriate oil could damage
the valves.
Picture 4
Picture 3
4.2 STORAGE
In case of long inactivity, the machine must be stored with
cautions concerning storage place and times.
• Store the machine indoors
• Protect the machine from jarring impacts and stresses
• Protect the machine from humidity and high
temperatures
• Avoid storing the machine near corrosive materials
• Lubricate the parts which are not painted
4.3 PRELIMINARY ARRANGEMENTS
To install the machine it is necessary to prepare a working
area adequate to the machine’s dimensions and the length of
moulding you will be using.
4.6 CONNECTIONS
To avoid any problems while setting up the machine, we
suggest you follow the instructions listed below.
4.4 UNPACKING
The machin is shipped packed into an appropriate carton
and protected with polystyrene parts.
Remove the external packing and save it for future uses.
Check for any casual shipping damage and report them
immediately. Shipping damages or any other defects must
be reported to ITW/AMP within 3 days from the time
you receive the machine.
4.5 MACHINE POSITIONING
Position the machine in its working area. Adjust the height
of the machine by using the 4 screws. raise it up until you
reach the desired height (see fig. 2).
