2.9 TECHNICAL DATA
We have listed below the Machine data and technical
characteristics. You can use it for reference for any eventual
contact with the Producer for Technical Assistance.
-Frames thickness min-max 1/4”- 2.75”
-Frames widthmin-max 3/8”- 4.75”
-Max distance among V-nails 4.75”
-V-nail magazine capacity n. 230
-V-nails size 7, 10, 15 mm.
-V-nails size on request 3, 5, 12 mm.
-Pneumatic supplying 50-100 PSI
-Weight about 132lb
-Height of working bench adjustable
-Overall dimensions 20”x17”x49”
2.10 STANDARD EQUIPMENT
The equipment listed below are the standard ones.
2.10.1 Standard accessories
Once you have removed the packaging, please check the
presence of the following accessories.
-N.1 nail head mm. 7
-N.1 nail head mm.10
-N.1 nail head mm.15
-N.1 L shaped pressure pad in rubber
-N.1 Allen Wrench 5 mm. for V-nails head replacement
-N.1 Brass rod magnet to remove V-nails
2.10.2 Upgrading and implementing of mechanical
parts
The machine has been manufactured following a modular
criterion, therefore the existing equipment can be further
upgraded with additional accessories that will not alter its
basic structure.
Technical upgrades on the machine model, if any, will be
such that they can be installed at any time without requiring
any substantial modifications to the machine’s structure.
2.10.3 Optional accessories
• Wooden working bench extension
• Metallic working bench extension
• V-nails claw heads size 3-5-12 mm.

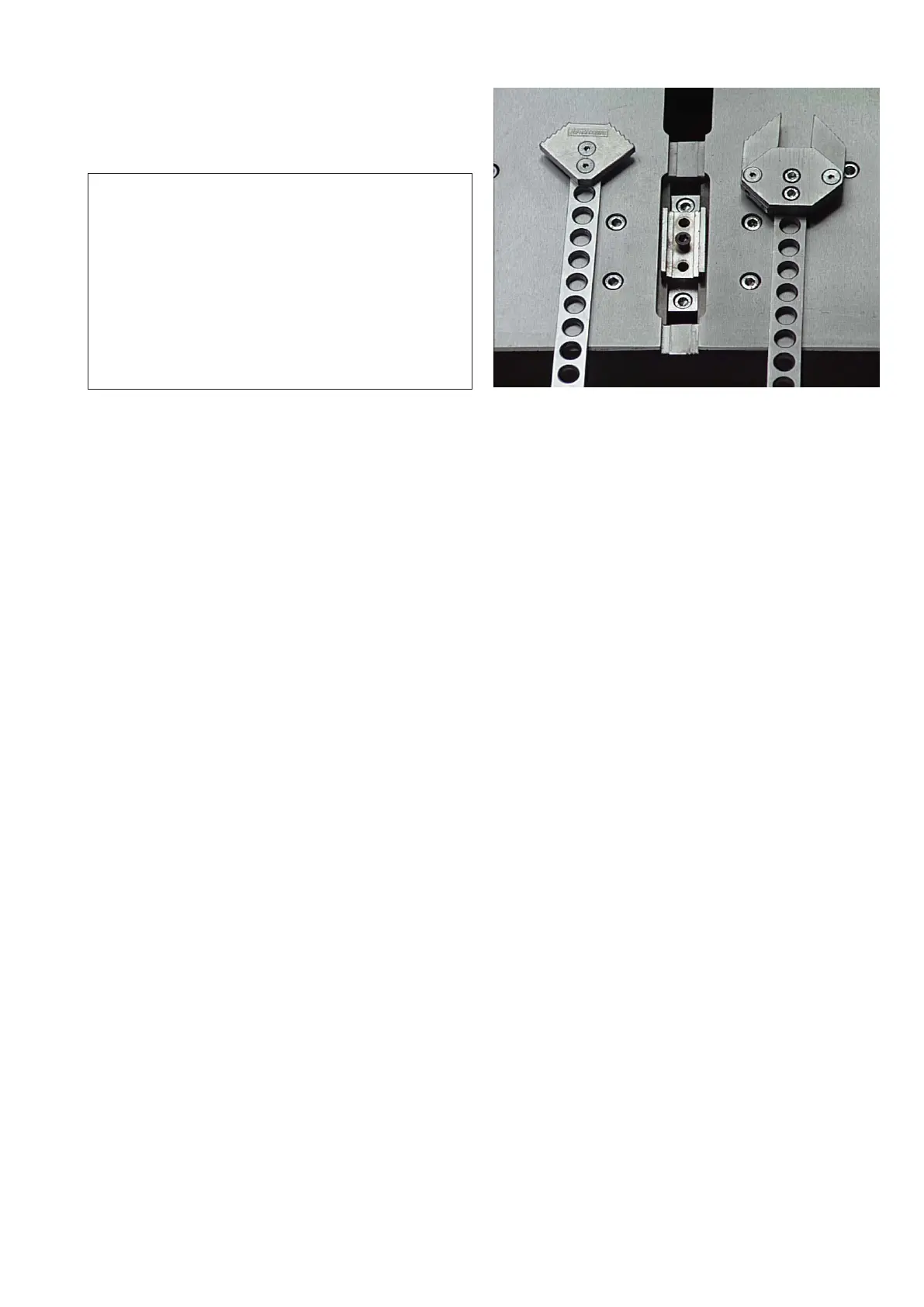

• Spring loaded front clamp (see fig.1)
2.10.4 Customized optional accessories
Thanks to its versatility this machine can be ‘custom-made’
to meet our users’ requirements. You can have your local
machine shop make accessories that can make frame
assembling easier: e.x. special fences for peculiar shaped
moulding shapes, special clamps to ensure the mouldings
are locked properly during V-nail firing, and so on.
2.11 ELECTROMAGNETIC AMBIENT
The Machine is designed to operate properly in an industrial
electromagnetic ambient without altering it being an
exclusively pneumatic machine.
