8

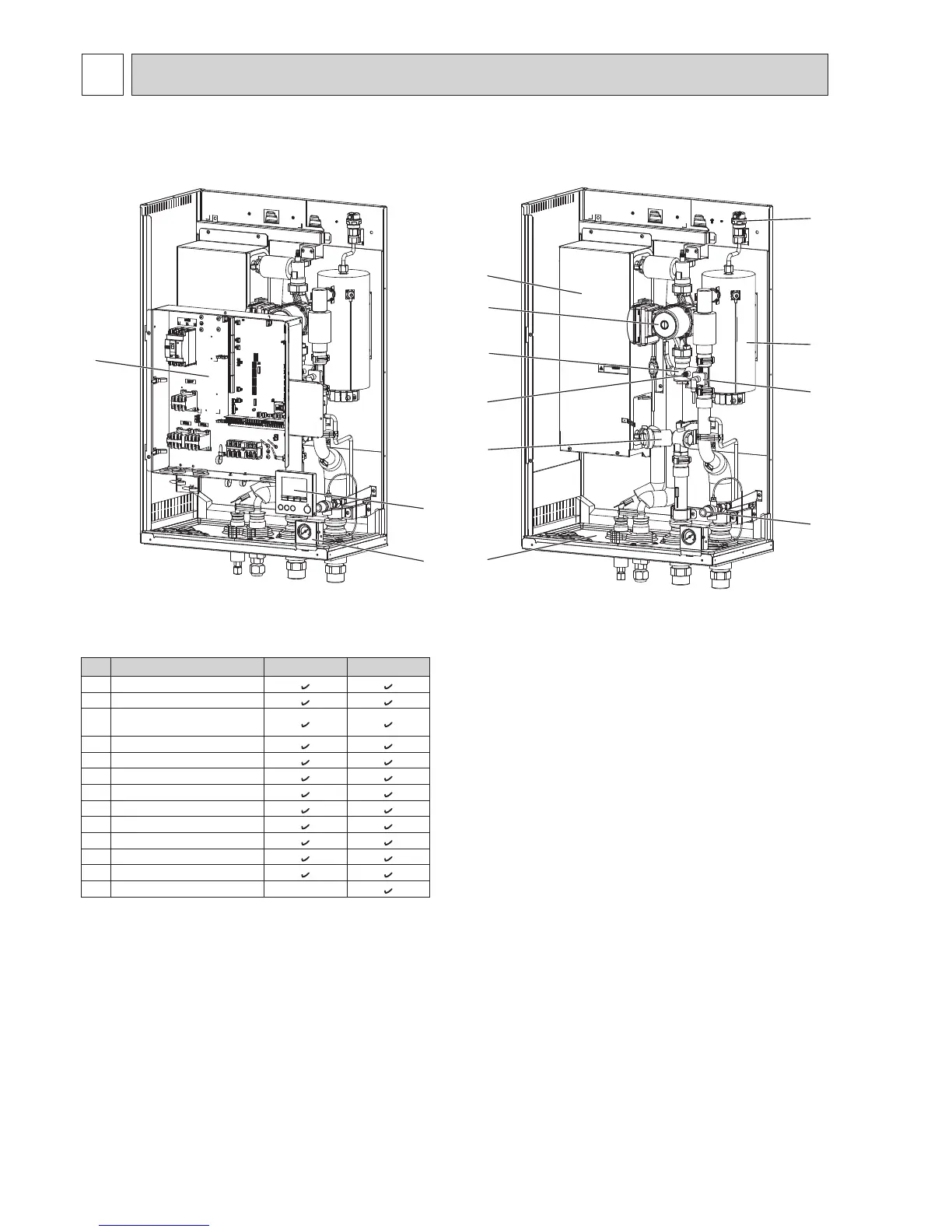

PARTS NAMES AND FUNCTIONS
4
11
7
8
<E*SE-*M*EC>
1
2
9
10
3
4
5
12
13
6
No. Partsname EHSE-*M*EC ERSE-*M*EC
1 Control and electrical box
2 Main remote controller
3
Plateheatexchanger
(Refrigerant-Water)
4 Watercirculationpump1
5 Pumpvalve
6 Draincock(Primarycircuit)
7 Booster heater 1,2
8 Flowsensor
9 Manometer
10 Pressurereliefvalve(3bar)
11 Automaticairvent
12 Strainer valve
13 Drain pan —
OCH590B
