Mitsubishi Electric FX3G SERIES User Manual

259
FX3G/FX3U/FX3UC Series Programmable Controllers
Programming Manual - Basic & Applied Instruction Edition
9 Move and Compare – FNC 10 to FNC 19
9.7 FNC 16 – FMOV / Fill Move
1
Introduction
2
Overview
3
Instruction List
4
Devices in Detail
5
Specified the Device & Constant
6
Before Programming
7
Basic Instruction
8
FNC00-FNC09 Program Flow
9
FNC10-FNC19 Move & Compare
10
FNC20-FNC29 Arith. & Logic Operation

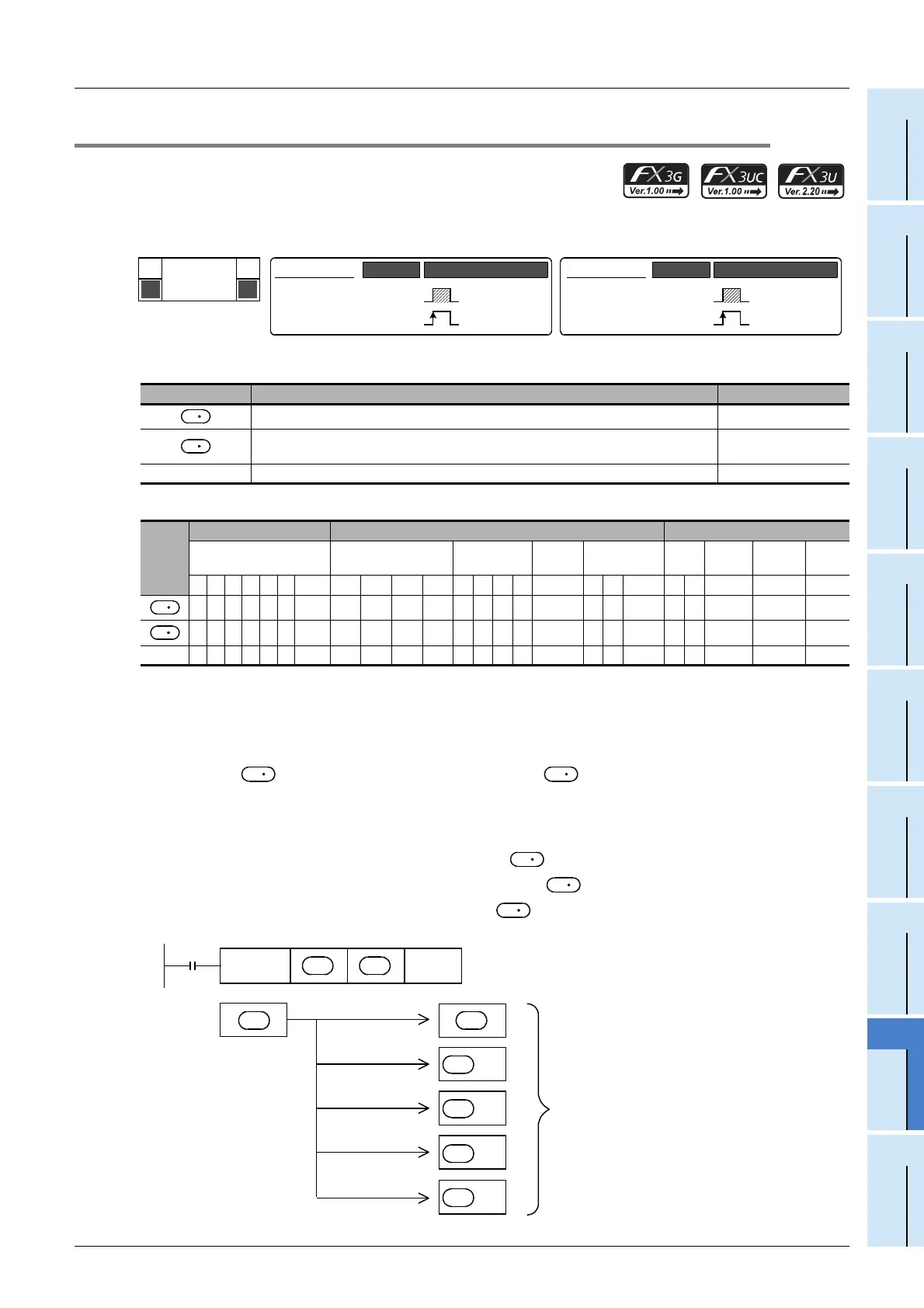

9.7 FNC 16 – FMOV / Fill Move
Outline
This instruction transfers same data to specified number of devices.
1. Instruction format
2. Set data
3. Applicable devices
S: This function is supported only in FX3U/FX3UC PLCs.
Explanation of function and operation
1. 16-bit operation (FMOV and FMOVP)
The contents of are transferred to "n" devices starting from .
• The contents will be same among all of "n" devices.
• If the number of points specified by "n" exceeds the device number range, data is transferred within the possible
range.
• While the command input is OFF, the transfer destination does not change.
• While the command input is ON, the data of the transfer source does not change.
• When a constant (K) is specified as the transfer source , it is automatically converted into binary.
Operand Type Description Data Type
Transfer source data or device number storing data 16- or 32-bit binary
Head word device number of transfer destination (Same data is transferred from the
transfer source at one time.)
16- or 32-bit binary
n Number of transfer points [K1 ≤ n ≤ K512, H1 ≤ n ≤ H1FF] 16-bit binary
Oper-
and
Type
Bit Devices Word Devices Others
System User Digit Specification System User
Special
Unit
Index
Con-
stant
Real
Number
Charac-
ter String
Pointer
XYMTCSD.b KnX KnY KnM KnS T C D R U\G V Z Modify K H E ""P
33333333 S 33333
3333333 S 3
n 33
DFMOV
DFMOVP
Mnemonic Operation Condition
P
FNC 16
FMOV
D
16-bit Instruction
7 steps
FMOV
FMOVP
Mnemonic Operation Condition
Continuous
Operation
Pulse (Single)
Operation
32-bit Instruction
13 steps
Continuous
Operation
Pulse (Single)
Operation
S
D
S
D
S D
D
S
S
FNC 16
FMOV
n
S  D 
Command
input
+1
+2
+3
+4
n
S  D 
D 
D 
D 
D 
