Mitsubishi Electric Hydrobox EHSD-VM2D - Component Parts

<Figure 3.3>
<Figure 3.4>
5
Technical Information
3
en

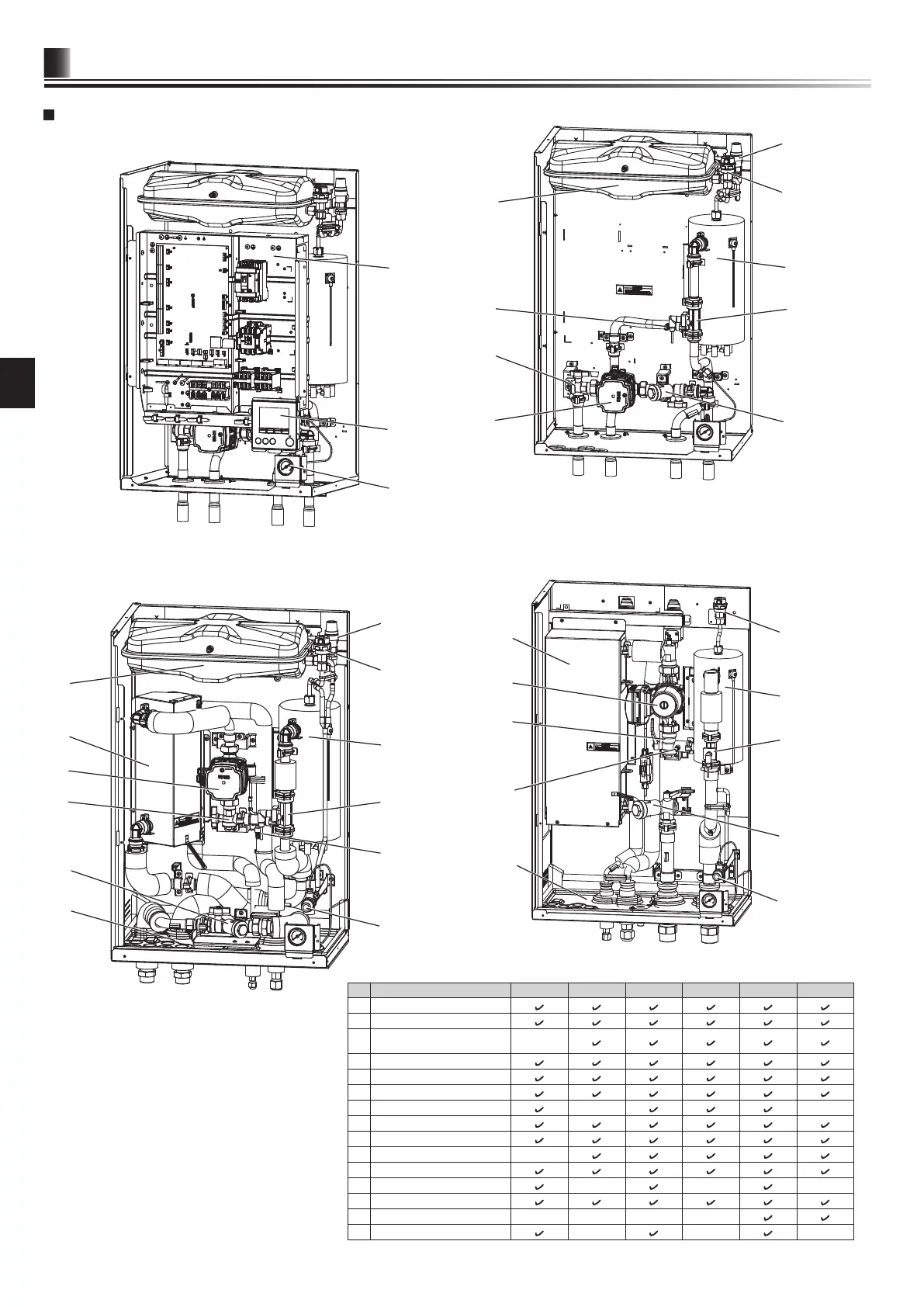

No. Part name EHPX-*M*D EHS*-MED EHS*-*M*D EHS*-*M*ED ERS*-VM2D ERSC-MED
1 Control and electrical box
2 Main remote controller
3
Plate heat exchanger
(Refrigerant - Water)
-
4 Water circulation pump 1
5 Pump valve
6 Drain cock (Primary circuit)
7 Booster heater 1,2 - -
8 Flow sensor
9 Manometer
10 Pressure relief valve (3bar) -
11 Automatic air vent
12 Expansion vessel - - -
13 Strainer valve
14 Drain pan - - - -
15 Pressure relief valve (5bar) - - -
<Table 3.3>
<E*S*-*M**D> (Split model system)
6
10
8
7
13
11
3
4
5
15
12
<E*SE-*M*ED>
14
13
3
5
14
6
8
7
11
10
Component Parts
1
2
9
8
7
13
11
5
4
6
<EHPX-*M*D> (Packaged model system)
<Figure 3.1>
<Figure 3.2>
15
12
4
