7 Applied Instructions
7.11 Data Transfer 2
445
FXCPU Structured Programming Manual
(Basic & Applied Instruction)
1
Outline
2
Instruction List
3
Configuration of Instruction
4
How to Read Explanation of Instructions
5
Basic Instruction
6
Step Ladder Instructions
7
Applied Instructions
8
Interrupt Function and Pulse Catch Function
A
Relationships between devices and addresses

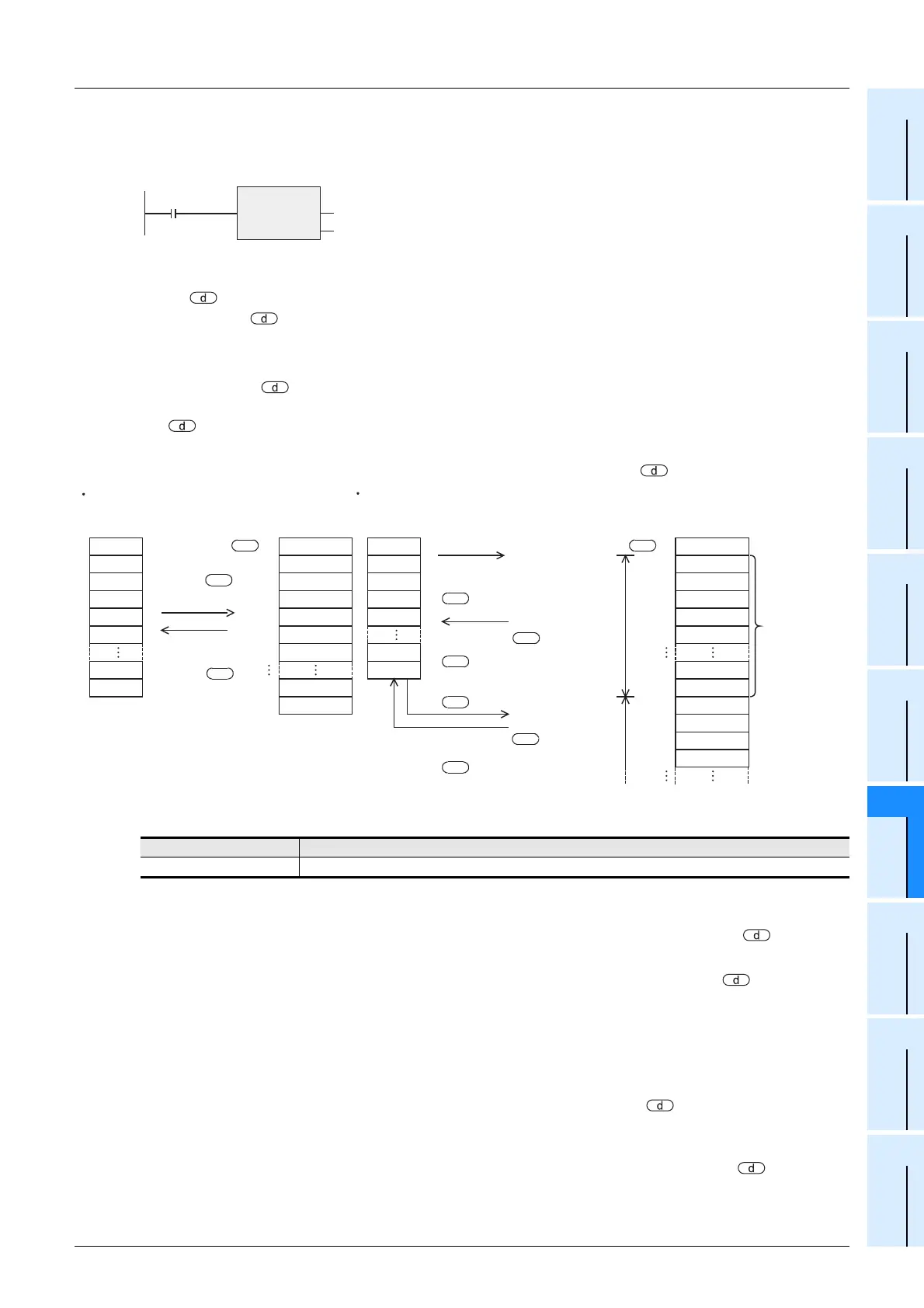

Function and operation explanation
1. 16-bit operation (ZPUSH/ZPUSHP)
1) Contents of index registers V0 to V7, Z0 to Z7 are temporarily retracted in and after the device specified
by . When the contents of index registers are retracted, the number of retracting of the device
specified by is incremented by +1.
2) To restore the data, use ZPOP instruction.
Use ZPUSH, ZPOP instructions in pair.
3) By specifying by the same device, ZPUSH and ZPOP instructions can be used as nesting. In this
case, every time the ZPUSH instruction is executed, the region to be used after the device specified by
is added by 16 points each. Hence, you must preliminarily reserve the region for the number of
times to be used by nesting.
4) The composition of the data to be retracted after the device specified by is as shown below.
Related instructions
Cautions
• Without action of nesting, please clear the number of retraction of the device specified by before
execution of ZPUSH instruction.
• With action of nesting, please clear the number of retraction of the device specified by before first
execution.
Error
It is an operation error in the following case, and error flag M8067 is turned ON, and error code is stored in
D8067.
• When the range of the number of points used after the device specified by by ZPUSH exceeds the
range of the corresponding device.
(Error code: K6706)
• In ZPUSH instruction execution, when the number of retraction of the device specified by is negative.
(Error code: K6707)
Instruction Content
ZPOP This instruction restores the index registers V0 to V7, Z0 to Z7 once retracted by ZPUSH instruction.
Command
input
ZPUSH
EN ENO
d
Head device for retracting
the contents of index registe
r
No action of nesting
Index
register
Retraction
data
Z0
V0
Z1
V1
Z2
V2
Z7
V7
Times of retraction
+1
+0
+3
+2
+5
+4
+6
+16
+15
With action of nesting
Index
register
Retraction
data
Z0
V0
Z1
V1
Z2
Z7
V7
Times of retraction
+1
+0
+3
+2
+5
+4
+16
+15
1) ZPUSH instruction
4) ZPOP
instruction
Z0
V0
Z1
V1
+17
+19
+18
+20
2) ZPUSH instruction
3) ZPOP
instruction
Z0
V0
Z1
V1
Z2
V2
Z7
V7
Z0
V0
Z1
V1
Z2
Z7
V7
Portion of
one nesting:
16 points
First time of nesting
Times of retraction
Times of retraction
Second time of nesting
Times of retraction
+1 to number
of times of
retraction
by ZPUSH
instruction
1)
d
2) -1 to number
of times of
retraction
by ZPOP
instruction
d
d
:0→1
d
:1→0
d
:1→2
d
:2→1
d
=2
d
=1
d
d
