Mitsubishi Electric MELSEC iQ-F FX5U - External Dimensions and Component Names

176
APPENDIX
Appendix 5 I/O Module

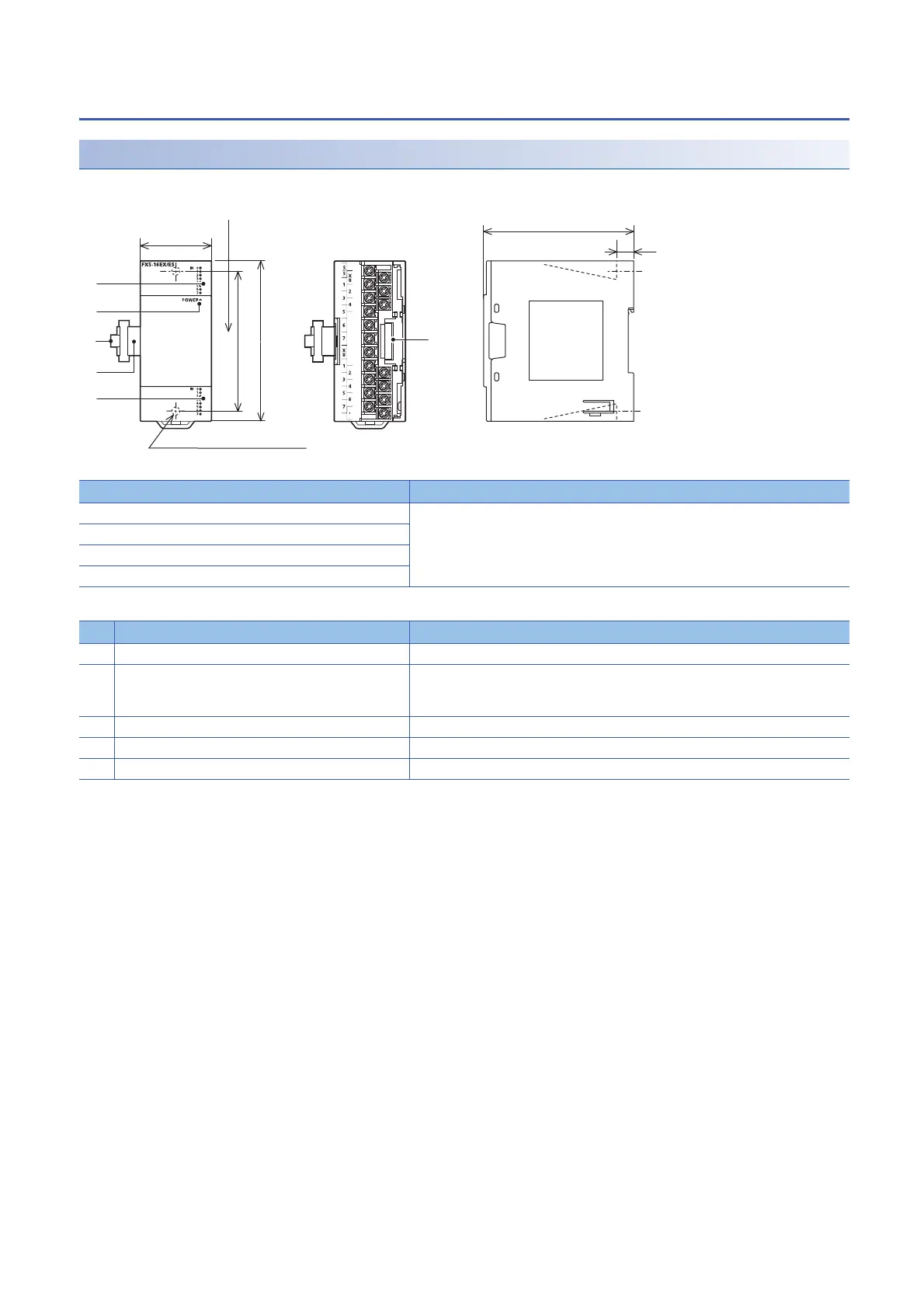

External dimensions and component names
Input module/output module
■Extension cable type
External dimensions
Part names
Model W: mm
FX5-8EX/ES 40
FX5-8EYR/ES, FX5-8EYT/ES, FX5-8EYT/ESS
FX5-16EX/ES
FX5-16EYR/ES, FX5-16EYT/ES, FX5-16EYT/ESS
No. Name Description
[1] Input display LED, output display LED Lit when input or output is on.
[2] POWER LED Indicates whether the input modules/output modules is powered or not.
Lit: Powered
Off: Not powered or hardware error
[3] Pullout tab They are used when drawing out an extension cable.
[4] Extension cable Cable used to connect the extension module
[5] Extension connector Connector for connecting the extension cable of an extension module.
Without cover
W
8
83
80
(mounting hole pitch)
90
2-4.5 mounting holes
[5]
Unit: mm
[2]
[4]
[1]
[3]
[1]
