EN-9

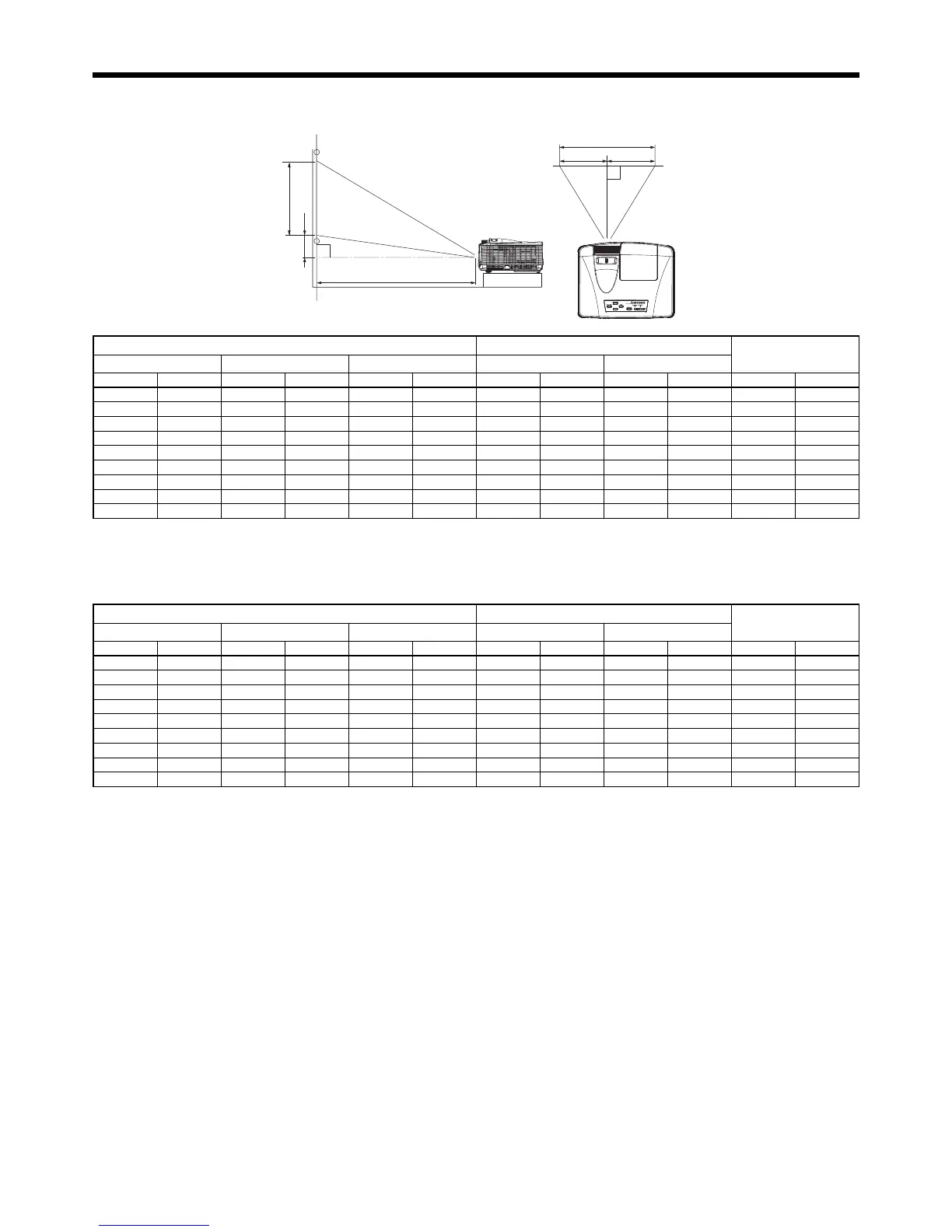

Layout of XD550U/XD560U
Image size varies depending on the distance between the screen and the projector.
SH
Hd
L
SW
A
A=B
B
Screen size Projection distance : L
Hd
Diagonal size Width : SW Height : SH Shortest (Wide) Longest (Tele)
inch cm inch cm inch cm inch m inch m inch cm
40 102 32 81 24 61 45 1.1 73 1.9 3.6 9
60 152 48 122 36 91 67 1.7 110 2.8 5.4 14
80 203 64 163 48 122 90 2.3 148 3.8 7.2 18
100 254 80 203 60 152 113 2.9 185 4.7 9.0 23
120 305 96 244 72 183 136 3.4 222 5.6 10.8 27
150 381 120 305 90 229 170 4.3 278 7.1 13.5 34
200 508 160 406 120 305 227 5.8 371 9.4 18.0 46
250 635 200 508 150 381 284 7.2 - - 22.5 57
300 762 240 610 180 457 341 8.7 - - 27.0 69
• The above fi gures are approximate and may be slightly different from the actual measurements.
Layout of WD570U
Image size varies depending on the distance between the screen and the projector.
Screen size Projection distance : L
Hd
Diagonal size Width : SW Height : SH Shortest (Wide) Longest (Tele)
inch cm inch cm inch cm inch m inch m inch cm
40 102 34 86 21 54 49 1.2 75 1.9 2.6 7
60 152 51 129 32 81 74 1.9 114 2.9 4.0 10
80 203 68 172 42 108 99 2.5 152 3.9 5.3 13
100 254 85 215 53 135 124 3.2 191 4.8 6.6 17
120 305 102 258 64 162 150 3.8 229 5.8 7.9 20
150 381 127 323 79 202 188 4.8 287 7.3 9.9 25
200 508 170 431 106 269 251 6.4 384 9.7 13.2 34
250 635 212 538 132 337 314 8.0 - - 16.6 42
300 762 254 646 159 404 377 9.6 - - 19.9 50
• The above fi gures are approximate and may be slightly different from the actual measurements.
Installation
