4G9 ENGINE (E-W) -
Rocker Cover and Camshafts (MIVEC)
11A-8a-1
PWEE9502-A
E
Nov. 1995Mitsubishi Motors Corporation
Added

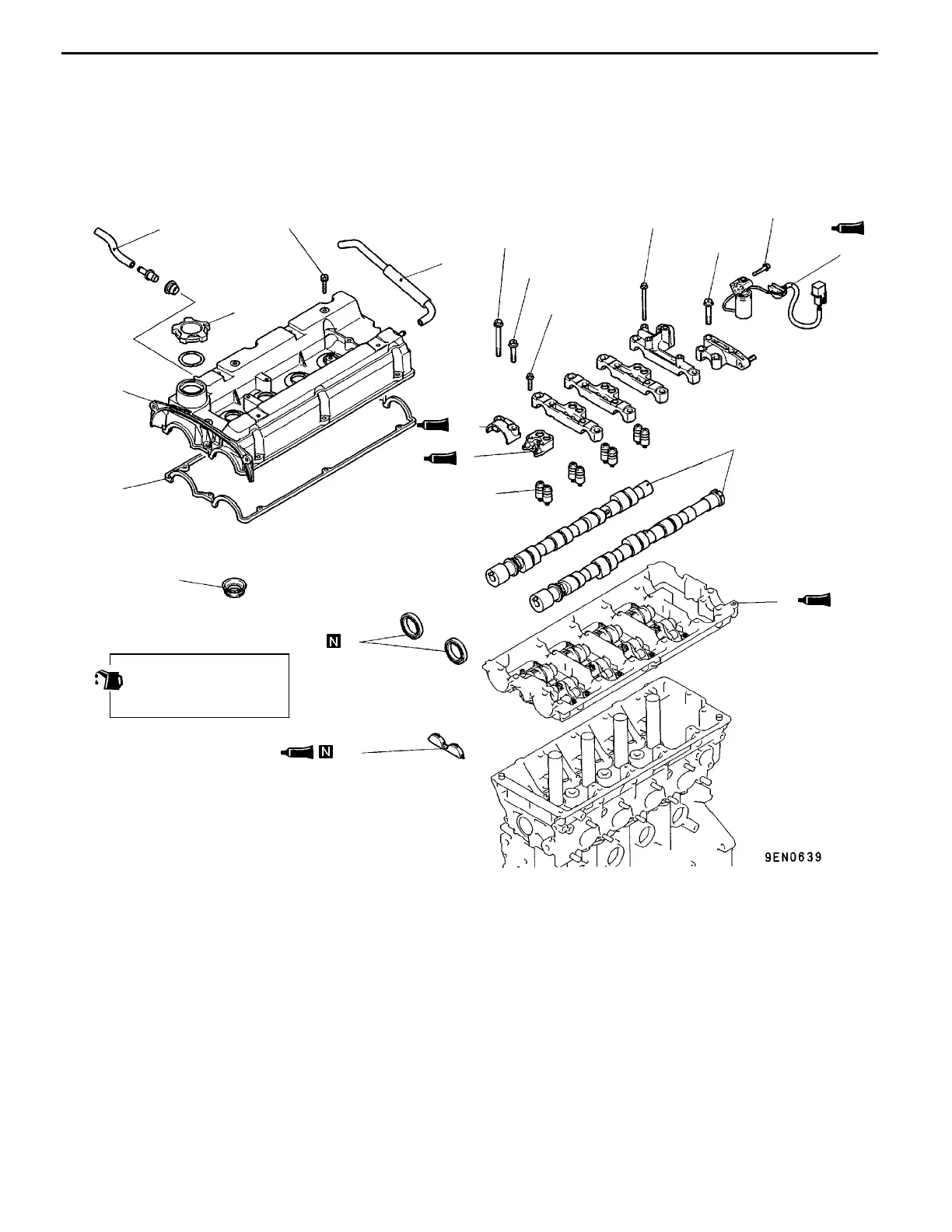

8a. ROCKER COVER AND CAMSHAFTS (MIVEC)
REMOVAL AND INSTALLATION
3.5 Nm
9Nm
Apply engine oil to
all moving parts be-
fore installation.
2
3
1
4
5
9
13
10
8
11
12
6
7
14
11 Nm
23 Nm
23 Nm
23 Nm
11 Nm
Removal steps
1. Breather hose
2. PCV hose
3. Oil filler cap
"
G
A
4. Rocker cover
5. Rocker cover gasket
6. Oil seal
"
F
A
7. Oil seal
"
E
A
8. Oil control valve
9. Arm spring holder
"
D
A
10. Camshaft bearing cap
"
D
A
11. Arm spring
"
C
A
12. Camshaft
"
B
A
13. Camshaft holder
"
A
A
14. Semi-circular packing

Mitsubishi 4G92 Specifications

General

Engine Type	Inline-4
Bore x Stroke	81.0 mm x 77.5 mm
Compression Ratio	10.0:1
Engine code	4G92
Fuel type	Petrol
Engine Block Material	Cast Iron
Cylinder Head Material	Aluminum
Displacement	1597 cc
Fuel System	Electronic Fuel Injection
Valvetrain	DOHC, 16-valve
