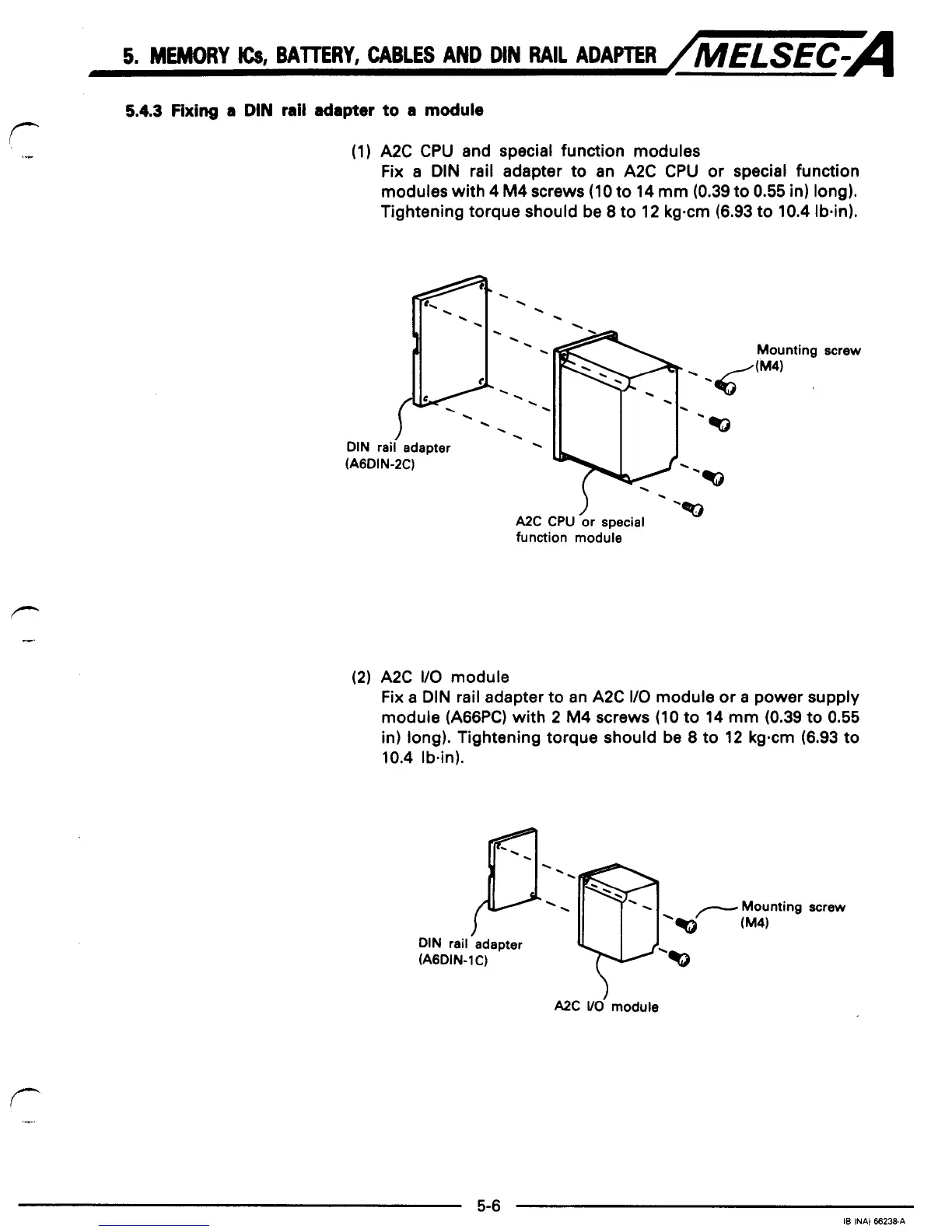

5. MEMORY 0, BA~RY, CABLES AND DIN RAIL ADAPTER /"ELSEC-A
5.4.3 Fixing a DIN rail adapter to a module
(1) A2C CPU and special function modules
Fix a DIN rail adapter to an A2C CPU or special function
modules with
4 M4 screws (10 to 14 mm (0.39 to 0.55 in) long).
Tightening torque should be
8 to 12 kgscm (6.93 to 10.4 Ib-in).
DIN
\
.
Mounting screw
( M4)
\ .
-40
A2C CPU or special
function module
(2) A2C I/O module
Fix a DIN rail adapter to an A2C I/O module or a power supply
module
(A66PC) with 2 M4 screws (10 to 14 mm (0.39 to 0.55
in) long). Tightening torque should be 8 to 12 kg-cm (6.93 to
10.4 Ib-in).
P
\
-.
..
DIN rail adapter
(A6DIN-IC)
A2C YO' module
P
..- 5-6
IB INA) 6623EA
