Mitsubishi A2CCPU User Manual

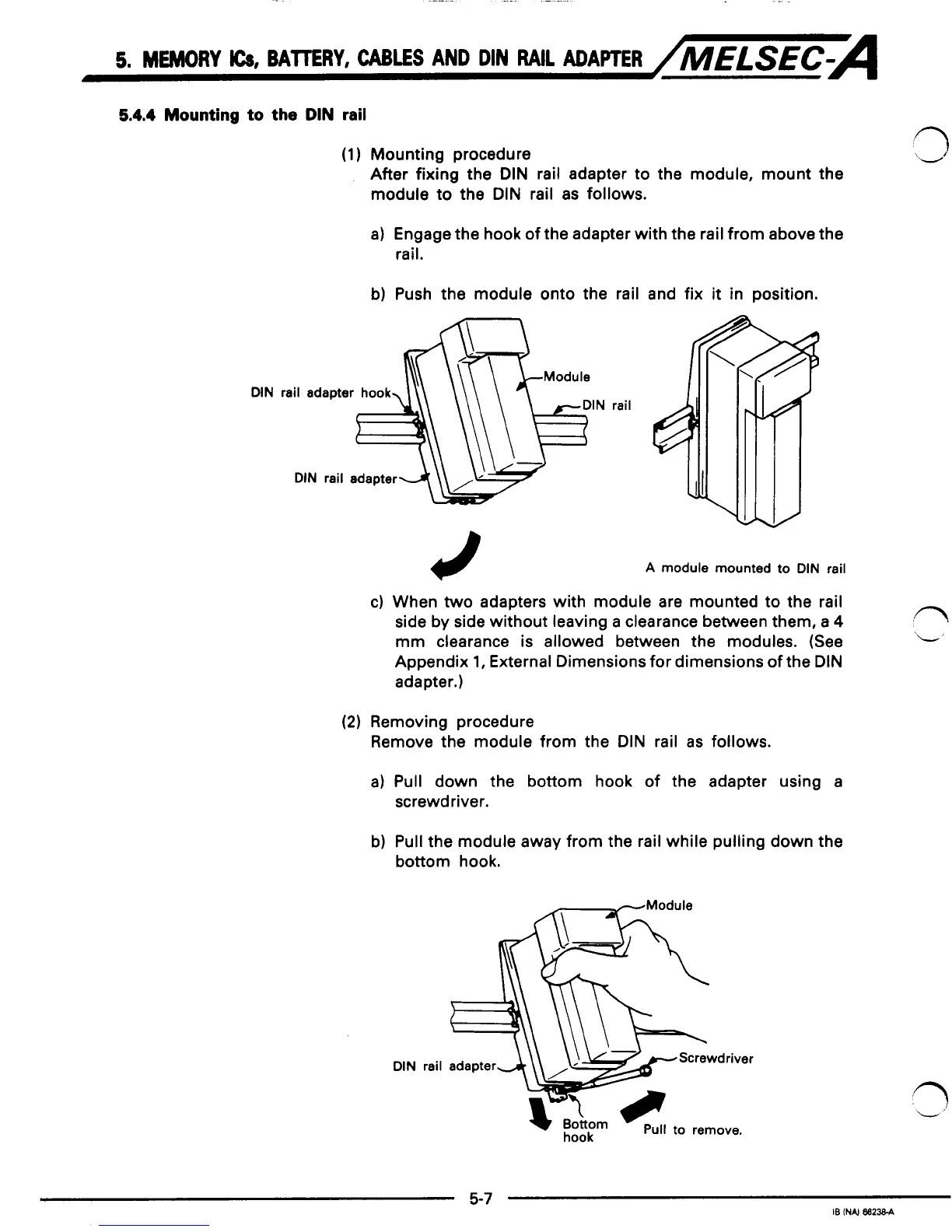

5.4.4 Mounting to the DIN rail
(1) Mounting procedure
After fixing the DIN rail adapter to the module, mount the
module to the DIN rail
as follows.
a) Engage the hook of the adapter with the rail from above the
rail.
b) Push the module onto the rail and fix
it in position.
Dl N
rail adapter
hook
IN
4J
rail
r
J
A module mounted to DIN rail
c) When two adapters with module are mounted to the rail
side by side without leaving
a clearance between them, a 4
mm clearance is allowed between the modules. (See
Appendix 1, External Dimensions for dimensions of the DIN
adapter.)
(2) Removing procedure
Remove the module from the DIN rail
as follows.
a) Pull down the bottom hook of the adapter using a
screwdriver.
b) Pull the module away from the rail while pulling down the
bottom hook.
Ai?
Module
DIN rail
hook
I UII LU IC
i
5-7 J
IB fNAJ 882384
