9. TROUBLESHOOTING /MELSEC-A

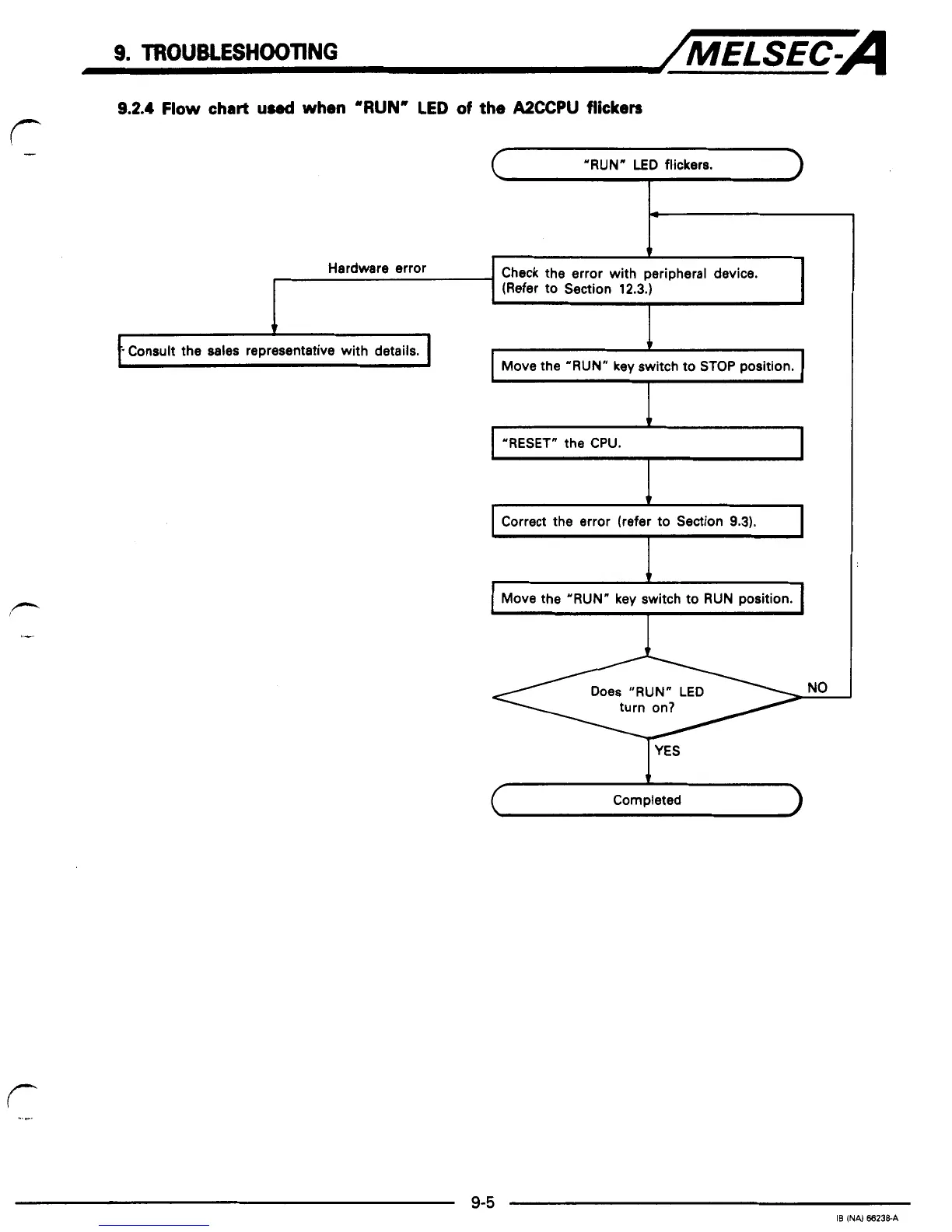

9.2.4 Flow chart used when 'RUN" LED of the AZCCPU flickers
"RUN" LED flickers.
+
Hardware error Check the error with peripheral device.
I (Refer to Section 12.3.) I
I I
4
*Consult the sales representative with details.
I
1
Move the "RUN" key switch to STOP position.
L
I "RESET" the CPU. I
C-
+
Correct the error (refer to Section 9.3). I
F
/c4
P
L-
C-
t
Move the "RUN" key switch to RUN position.
Does "RUN" LED
turn on?
I YES
r Completed >
