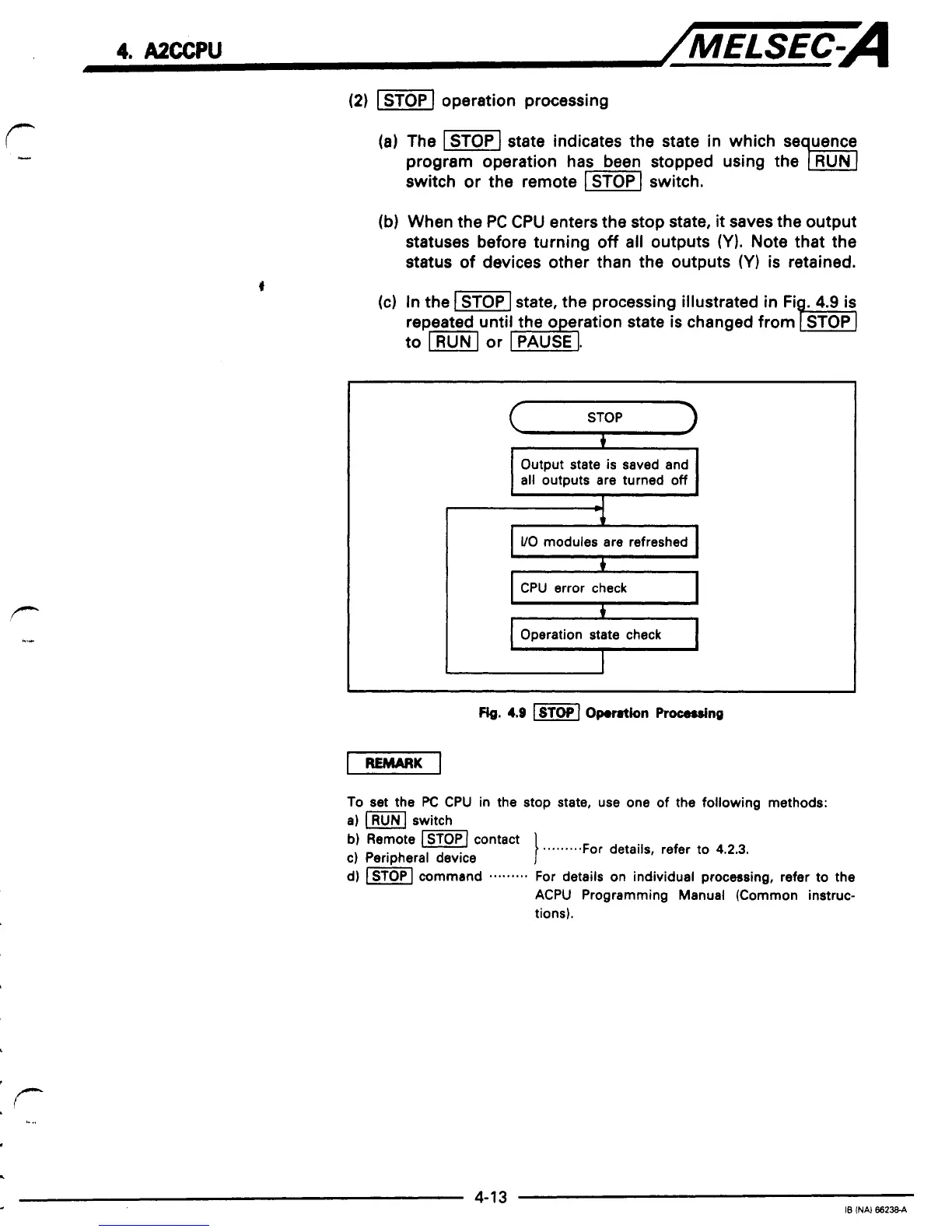

4. AzccPlJ /MELSEC-A
(2) operation processing
(b) When the
PC CPU enters the stop state, it saves the output
statuses before turning
off all outputs (Y). Note that the
status
of devices other than the outputs (Y) is retained.
t
to ml or PAUSE 1.
STOP
1 +
Output state is saved and
all outputs are turned
off
UO modules are refreshed
4
CPU error check
4
Operation state check
I
To set the PC CPU in the stoD state. use one of the followina methods:
I
a) (=I switch
b) Remote contact
c) PeriDheral device
} ......... For details, refer to 4.2.3.
d) I*] command ......... ' For deteils on individual processing, refer to the
ACPU Programming Manual (Common instruc-
tions).
