Important:
Important:

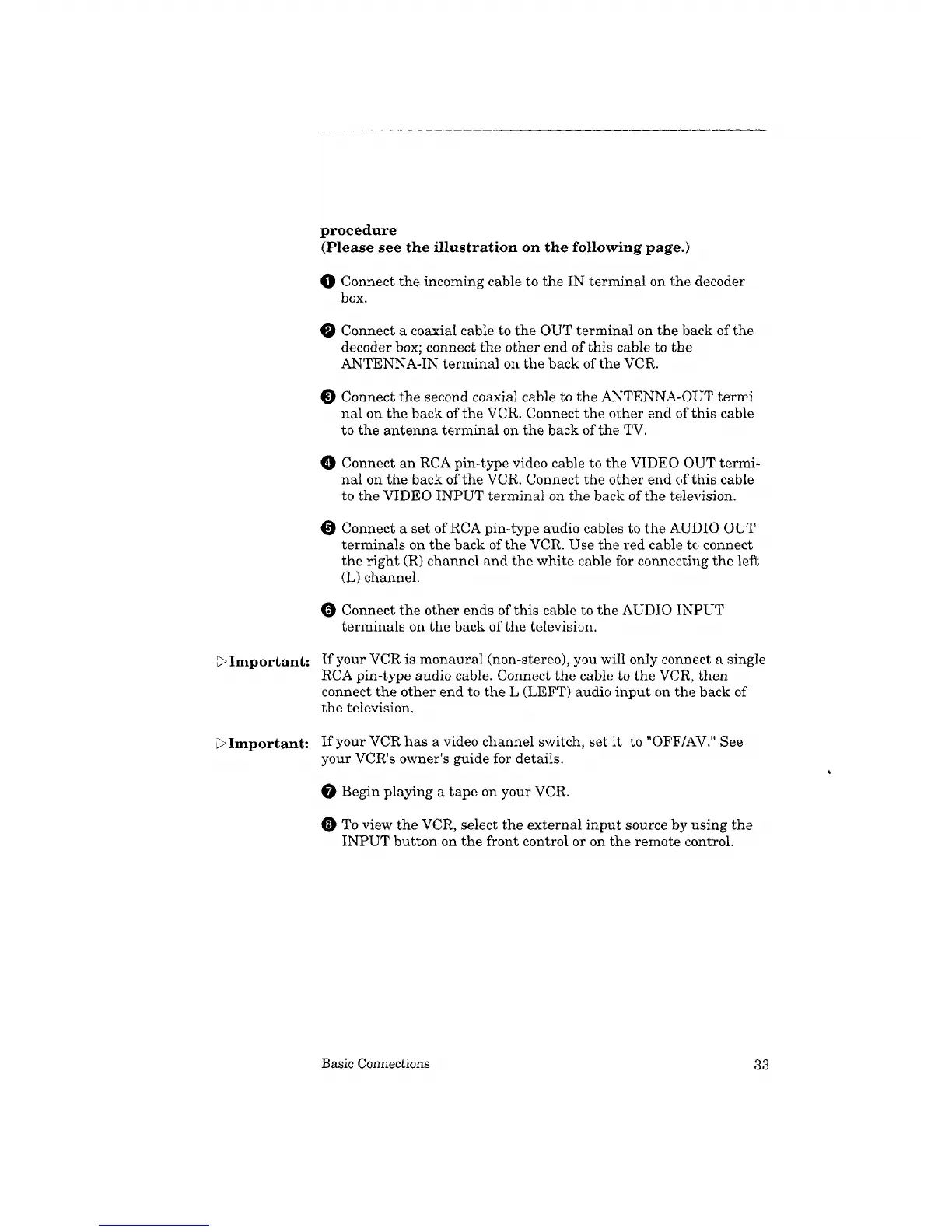

procedure
(Please see the illustration on the following page.)
I_ Connect the incoming cable to the IN terminal on the decoder
box.
O Connect a coaxial cable to the OUT terminal on the back of the
decoder box; connect the other end of this cable to the
ANTENNA-IN terminal on the back of the VCR.
Connect the second coaxial cable to the ANTENNA-OUT termi
hal on the back of the VCR. Connect lobe other end of this cable
to the antenna terminal on the back of the TV.
O Connect an RCA pin-type video cable to the VIDEO OUT termi-
nal on the back of the VCR. Connect the other end of this cable
to the VIDEO INPUT terminal on the back of the television.
O Connect a set of RCA pin-type audio cables to the AUDIO OUT
terminals on the back of the VCR. Use the red cable to connect
the right (R) channel and the white cable for connecting the left
(L) channel.
Connect the other ends of this cable to the AUDIO INPUT
terminals on the back of the television.
If your VCR is monaural (non-stereo), you will only connect a single
RCA pin-type audio cable. Connect the cable to the VCR, then
connect the other end to the L (LEFT) audio input on the back of
the television.
If your VCR has a video channel switch, set it to "OFF/AV." See
your VCR's owner's guide for details.
Begin playing a tape on your VCR.
To view the VCR, select the external input source by using the
INPUT button on the front control or on the remote control.
Basic Connections 33
