Mitsubishi F5MR1 User Manual

MANUAL TRANSMISSION (E-W) -
Transmission
22A-3-12
PWEE9508
E
May 1995Mitsubishi Motors Corporation
"
K
A

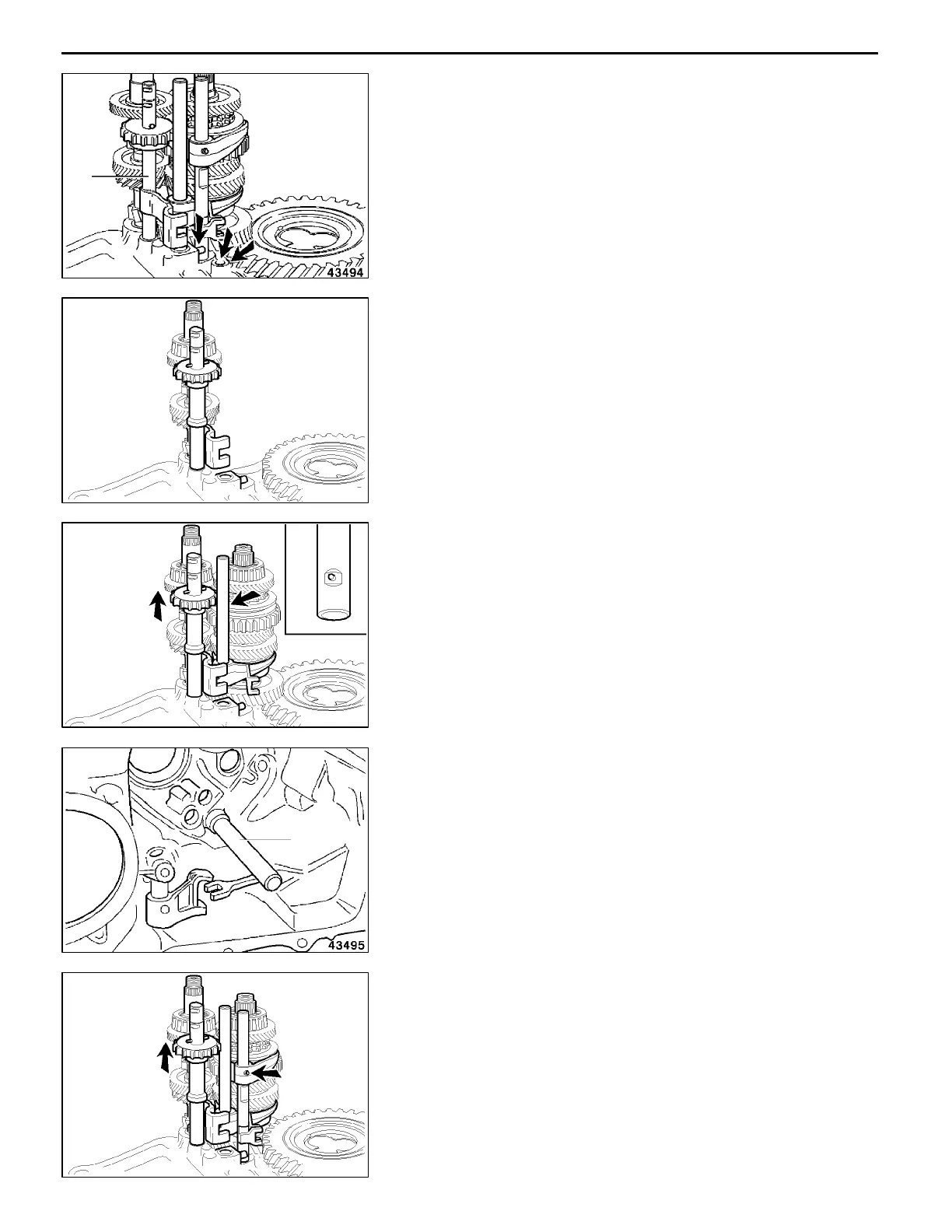

REVERSE IDLER GEAR SHAFT INSTALLATION
(1) Raise the input and output shafts slightly.
(2) Locate the reverse idler gear shaft 8.
(3) Put the shafts into neutral so that the interlock plungers
are lying clear.
"
L
A
REVERSE IDLER GEAR SHAFT INSTALLATION
(1) Raise the input shaft slightly.
(2) Locate the reverse idler gear shaft.
"
M
A
OUTPUT SHAFT INSTALLATION
(1) Fit the small dowel pin in the shift rail assembly.
(2) Raise the reverse idler gear shaft slightly and push the
long dowel pin into the hole.
(3) Locate the shift rail assembly together with th e 1st and
2nd gear shift fork in the synchronizer sleeve.
(4) Locate the two shafts in the clutch housing.
"
N
A
5TH GEAR SHIFT RAIL ASSEMBLY INSTALLATION
(1) Locate th e shift rail assembly 9.
(2) Fit the poppet spring and ball.
(3) Depress t he ball and raise the shift rail assembly until
the ball engages the second recess (neutral position).
NOTE
Put th e shift rail assembly into neutral so that th e interlock
plungers are lying clear.
"
O
A
3RD/4TH GEAR SHIFT RAIL ASSEMBLY
INSTALLATION
(1) Raise the reverse idler gear shaft slightly.
(2) Locate the shift rail assembly together with t h e 3rd and
4th gear shift fork in the synchronizer sleeve.
(3) Locate the shaft in the clutch housing.
Fit a new spring pin in the shift fork (it must b e fully
inserted in the shift fork).
NOTE
The slit in the spring pin must b e in axial alignment with
the shift rail assembly.
AddedPWEE9508-BMitsubishi Motors Corporation
May 1996
E
8
RMT0018
RMT0019
9
RMT0020
