MANUAL TRANSMISSION (E-W) -
Transmission
22A-3-13
PWEE9508
E
May 1995Mitsubishi Motors Corporation
"
P
A

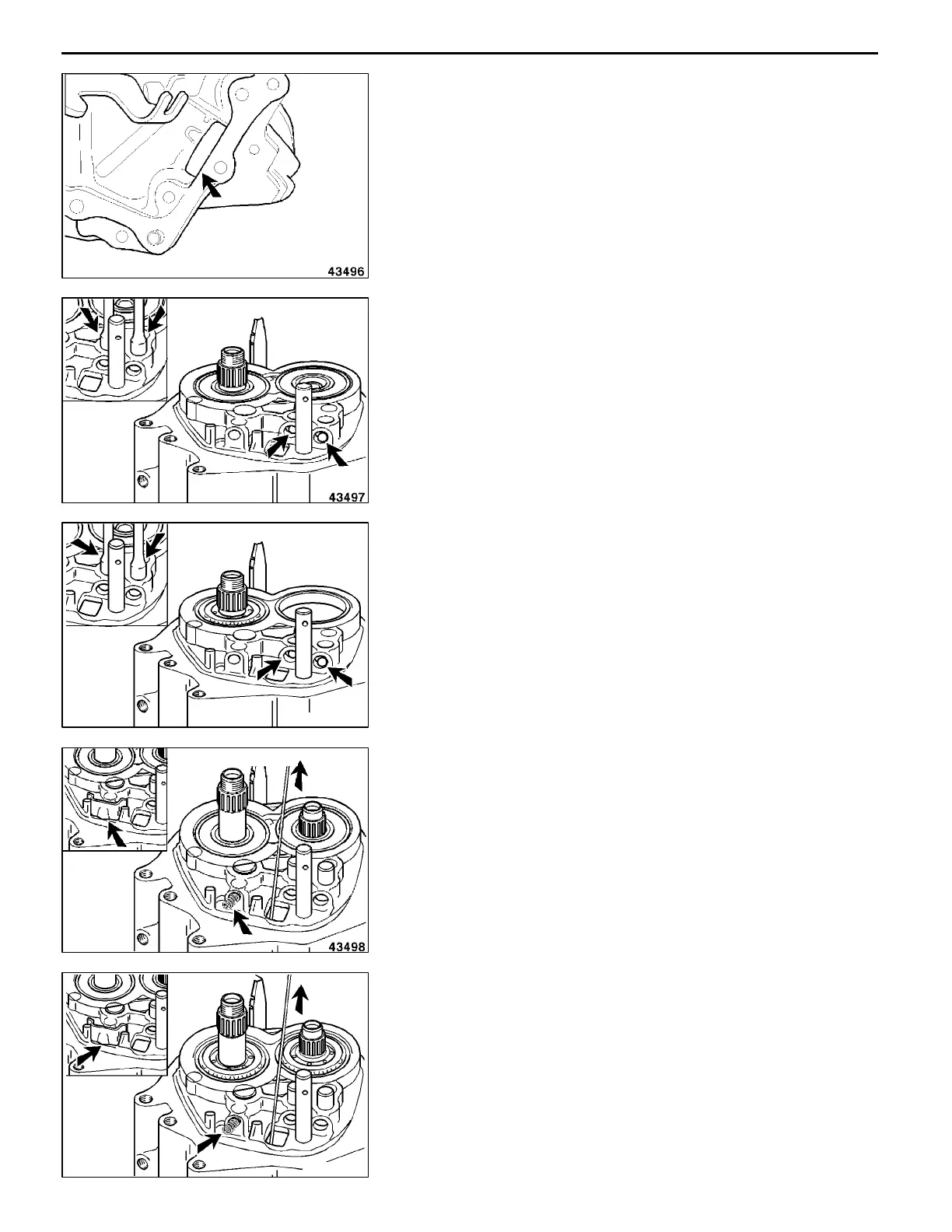

MAGNET INSTALLATION
Fit the magnet in the differential housing.
"
Q
A
POPPET BALL/POPPET SPRING/TRANSMISSION
CASE INSTALLATION
(1) Apply liquid gasket cement (Loctite 518) to the mating
face.
NOTE
Do not apply too much gasket cement. Let the gasket
cement dry for at least thirty minutes before filling the
manual transmission with oil.
(2) Locate the transmission case over the shafts.
(3) Locate the balls and poppet springs for the 1st, 2nd,
3rd and 4 t h gear shift rail assemblies, using two hex
nut drivers.
(4) Now press the transmission case on to the mating face,
insert some of the retaining bolts a n d secure them
finger-tight.
NOTE
If necessary, push up the 5th gear shift rail assembly
a short distance.
"
R
A
POPPET BALL/POPPET SPRING/COVER PLATE
INSTALLATION
(1) Pull the reverse idler gear shaft upwards with a wire hook.
(2) Locate the ball and poppet spring and fit the retainer
plate (with the bulge underneath).
<F5MR1, F5MR2>
<F5MR3>
RMT0021
<F5MR1, F5MR2>
AddedPWEE9508-BMitsubishi Motors Corporation
May 1996
E
<F5MR3>
RMT0022
