MANUAL TRANSMISSION (E-W) -
Transmission
22A-3-14
PWEE9508
E
May 1995Mitsubishi Motors Corporation

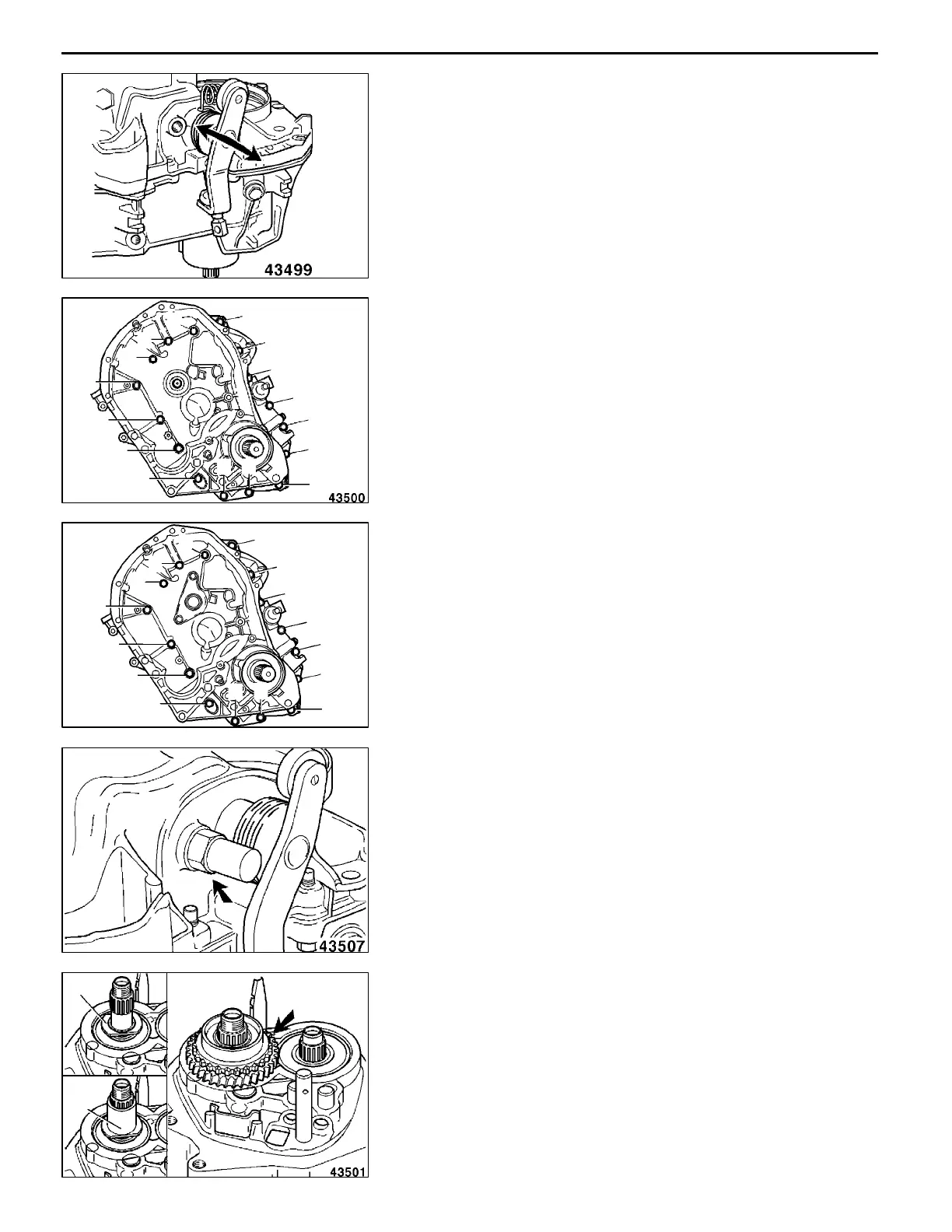

(3) Rotate the input shaft and check whether the remote
control arm can move freely.
(4) Check that all the gears can be engaged and disengaged.
(5) Fit the bolts as shown in the illustration.
NOTE
The bolts have three different lengths:
A = long (45 mm)
B = medium (40 mm)
C = short (35 mm)
"
S
A
LOCATING PIN INSTALLATION
(1) Apply sealant (Loctite 572) to the locating pin.
(2) Fit and tighten the locating pin.
"
T
A
RETAINING RING/BEARING SLEEVE/5TH SPEED
GEAR/SYNCHRONIZER RING INSTALLATION
(1) Locate the retaining ring 10 on the shaft with the collar
facing towards the bearing.
(2) Locate the bearing sleeve 11 over the input shaft.
(3) Locate the 5th speed gear together with the synchronizer
ring over the shaft.
A
B
C
B
B
B
B
B
B
A
A
A
A
C
<F5MR1,
F5MR2>
<F5MR3>
RMT0023
A
B
C
B
B
B
B
B
A
A
A
A
B
C
B
A
AddedPWEE9508-BMitsubishi Motors Corporation
May 1996
E
10
11
