Mitsubishi F5MR1 User Manual

MANUAL TRANSMISSION (E-W) -
Output Shaft
22A-4-9
PWEE9508
E
May 1995Mitsubishi Motors Corporation
"
N
A

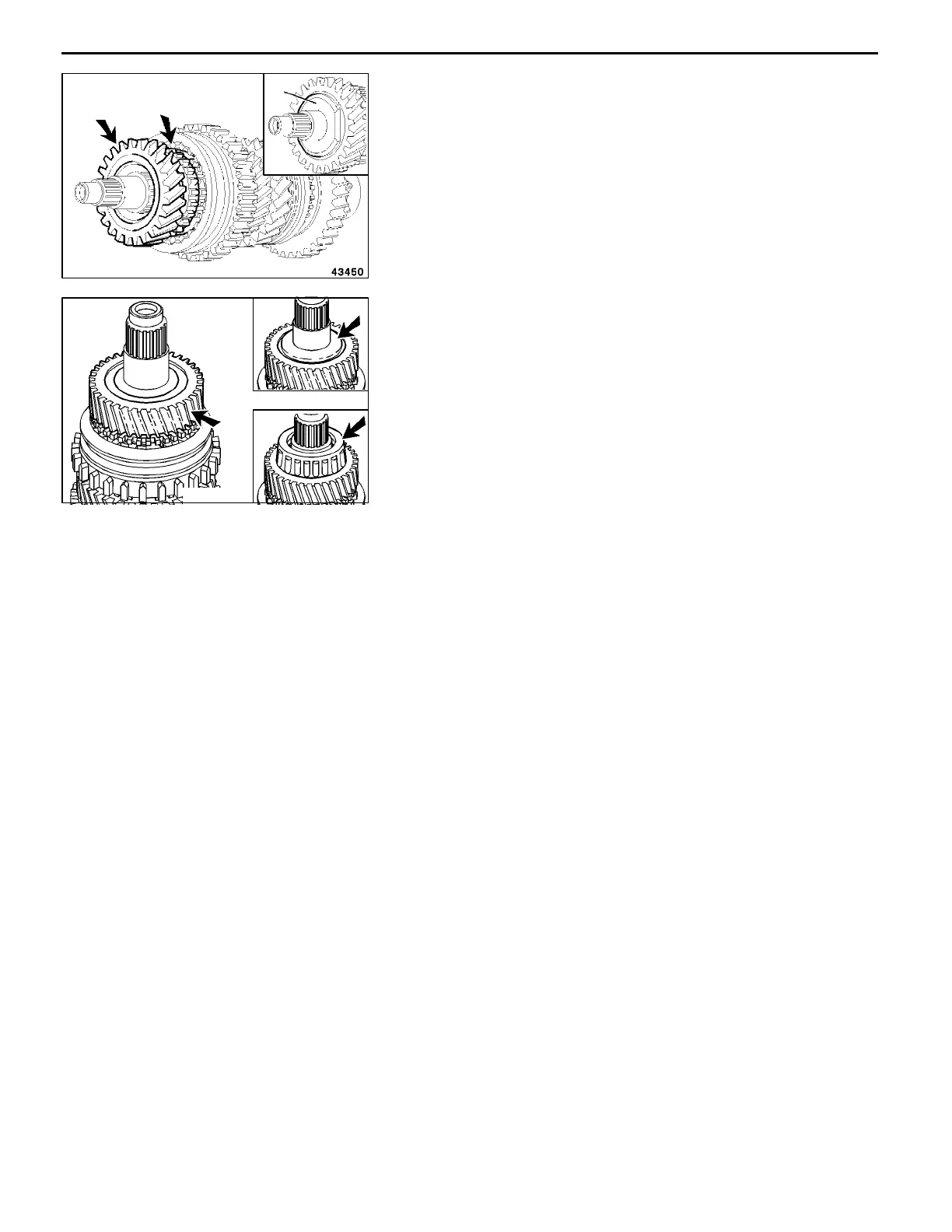

4TH GEAR WHEEL INSTALLATION
(1) Locate the gear wheel together with the synchronizer
ring on the shaft.
(2) Fit the shim 1.
NOTE
Make sure that the lugs of the synchronizer ring engage
the recesses in the synchronizer sleeve.
"
O
A
4TH GEAR WHEEL INSTALLATION
(1) Locate the synchronizer ring.
(2) Locate the gear wheel on the bearing bush.
(3) Fit the shim.
NOTE
In th e case of old bearings: fit the old shim.
In the case of new bearings: fit a shim with a thickness
of 1.6 mm.
(4) Fit the bearing.
AddedPWEE9508-BMitsubishi Motors Corporation
May 1996
E
1
RMT0041
