MANUAL TRANSMISSION (E-W) -
Differential
22A-5-6
PWEE9508
E
May 1995Mitsubishi Motors Corporation
(7) Press the nut on to the threaded end with socket wrench
MB996003 until it catches the thread and then tighten
the nut to 18 Nm.
(8) Remove the counterhold.
(9) Rotate the differential a few times.
(10)Fit counterhold MB996005.
(11)Tighten the nut to 130 Nm.
(12)Remove the counterhold.
"
G
A

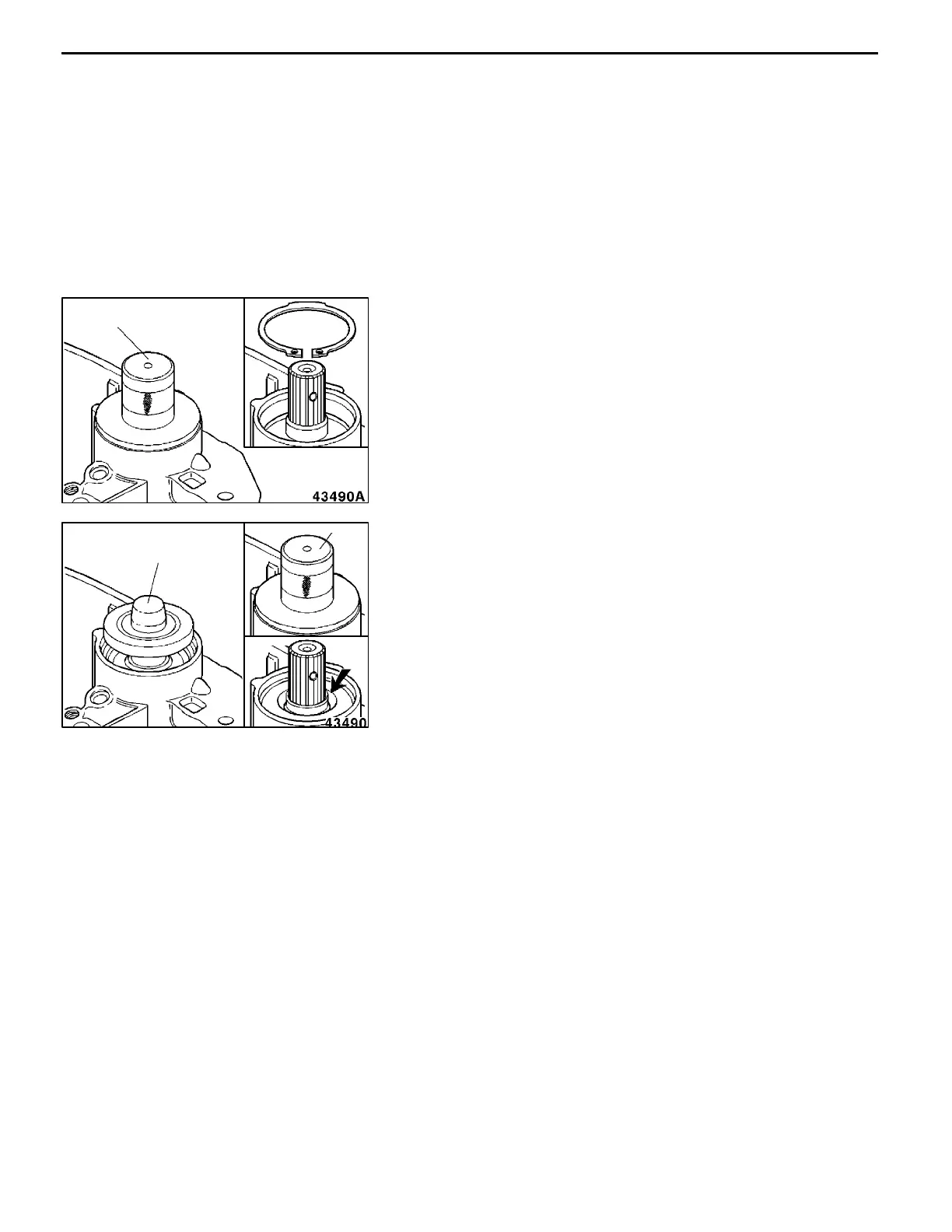

SNAP RING INSTALLATION
(1) Locate the differential in the clutch housing.
(2) Place the clutch housing under a press and support the
differential.
(3) Using special tool MB996010, press the housing
downwards until it abuts against the stop.
(4) Now press the housing downwards, against the spring
pressure, until it is possible to fit the snap ring.
(5) Fit the snap ring.
"
H
A
OIL SEAL INSTALLATION
(1) Pack the lip of the new oil seal with grease.
(2) Place the guide on the shaft a n d locate the oil.
(3) Fit the oil seal with drift MB996010.
(4) Fit a new O-ring.
MB996010
AddedPWEE9508-BMitsubishi Motors Corporation
May 1996
E
MB996010
MB996010
