MANUAL TRANSMISSION (E-W) -
Differential
22A-5-5
PWEE9508
E
May 1995Mitsubishi Motors Corporation
"
B
A

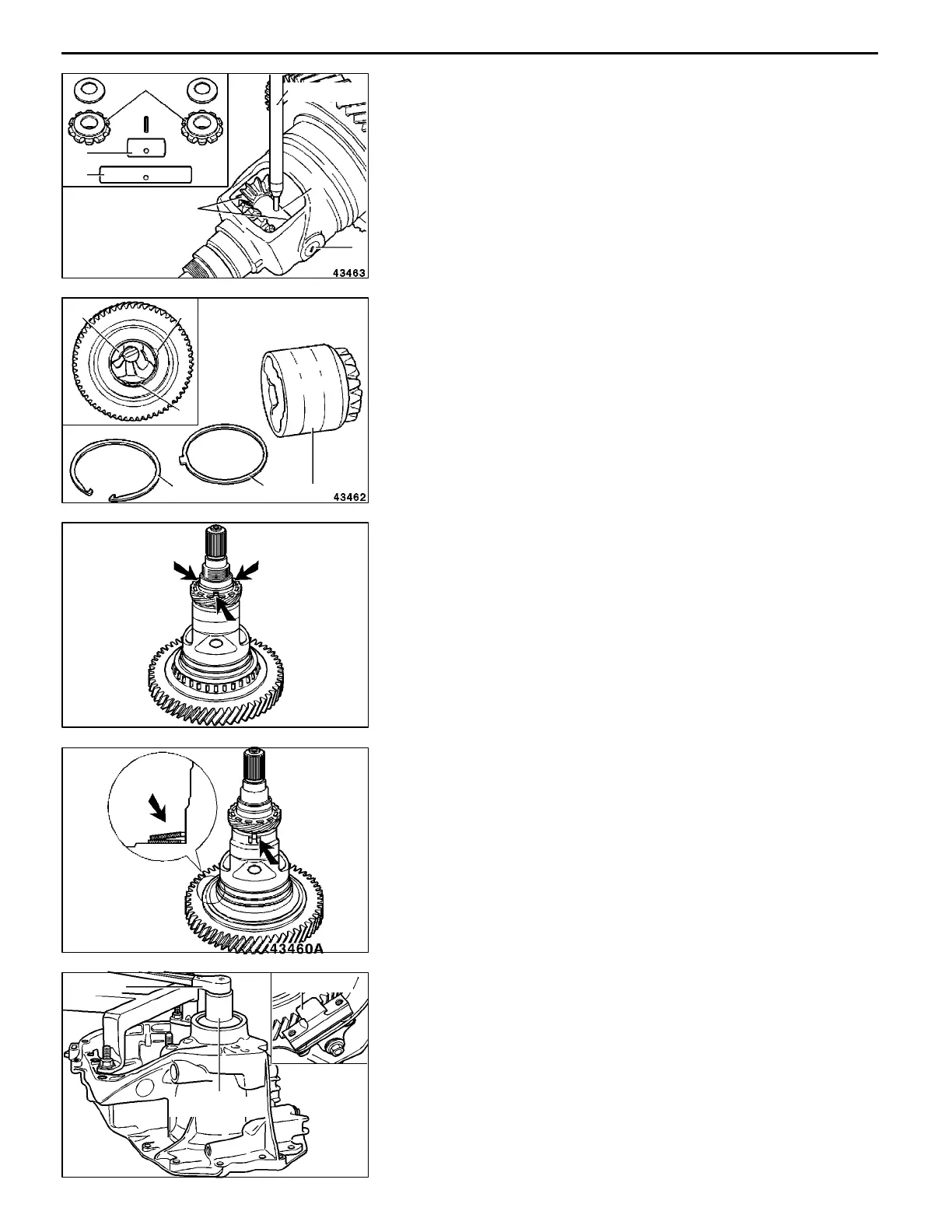

PINION GEARS INSTALLATION
(1) Smear the pinion gears and thrust washers with grease.
(2) Locate the pinion gears 6 together with the thrust washers
and fit the shaft 4.
(3) Locate the bush 5 over the shaft.
(4) Locate the pinion gears 6 together with the thrust washers
and press the shaft in further.
(5) Fit th e spring pin with th e slit at right-angles to t h e shaft
and tap it in with spring pin installer MD998245.
"
C
A
SIDE GEAR INSTALLATION
(1) Smear the side gears with grease.
(2) Insert the side gear 3.
(3) Locate the shim 2.
(4) Fit the snap ring 1.
"
D
A
SPEEDOMETER DRIVE GEAR INSTALLATION
(1) Locate the speedometer drive gear with the locking lug
in th e recess in the differential.
(2) Place the guard ring on the differential.
(3) Place the spring ring on the differential.
"
E
A
SPEEDOMETER DRIVE GEAR/SPRING RING/
GUARD GEAR INSTALLATION
(1) Locate the speedometer drive gear with the locking lug
in the recesses in the differential.
(2) Place the guard ring on the differential.
(3) Place the spring ring on the differential.
"
F
A
DIFFERENTIAL GEAR ASSEMBLY INSTALLATION
(1) Locate the differential gear assembly in the clutch housing.
(2) Lock the differential gear assembly with counterhold
MB996005.
(3) Fit the shim.
(4) Locate the bearing.
(5) Smear the nut with a locking agent (Loctite 270).
(6) Fit the nut with the opening facing towards the bearing.
MD998245
6
6
5
4
4
5
AddedPWEE9508-BMitsubishi Motors Corporation
May 1996
E
1
1
2
3
3
2
RMT0044
RMT0045
130 Nm
MB996005
MB996003
