Mitsubishi F5MR1 User Manual

MANUAL TRANSMISSION (E-W) -
Differential
22A-5-4
PWEE9508
E
May 1995Mitsubishi Motors Corporation
A
E
"

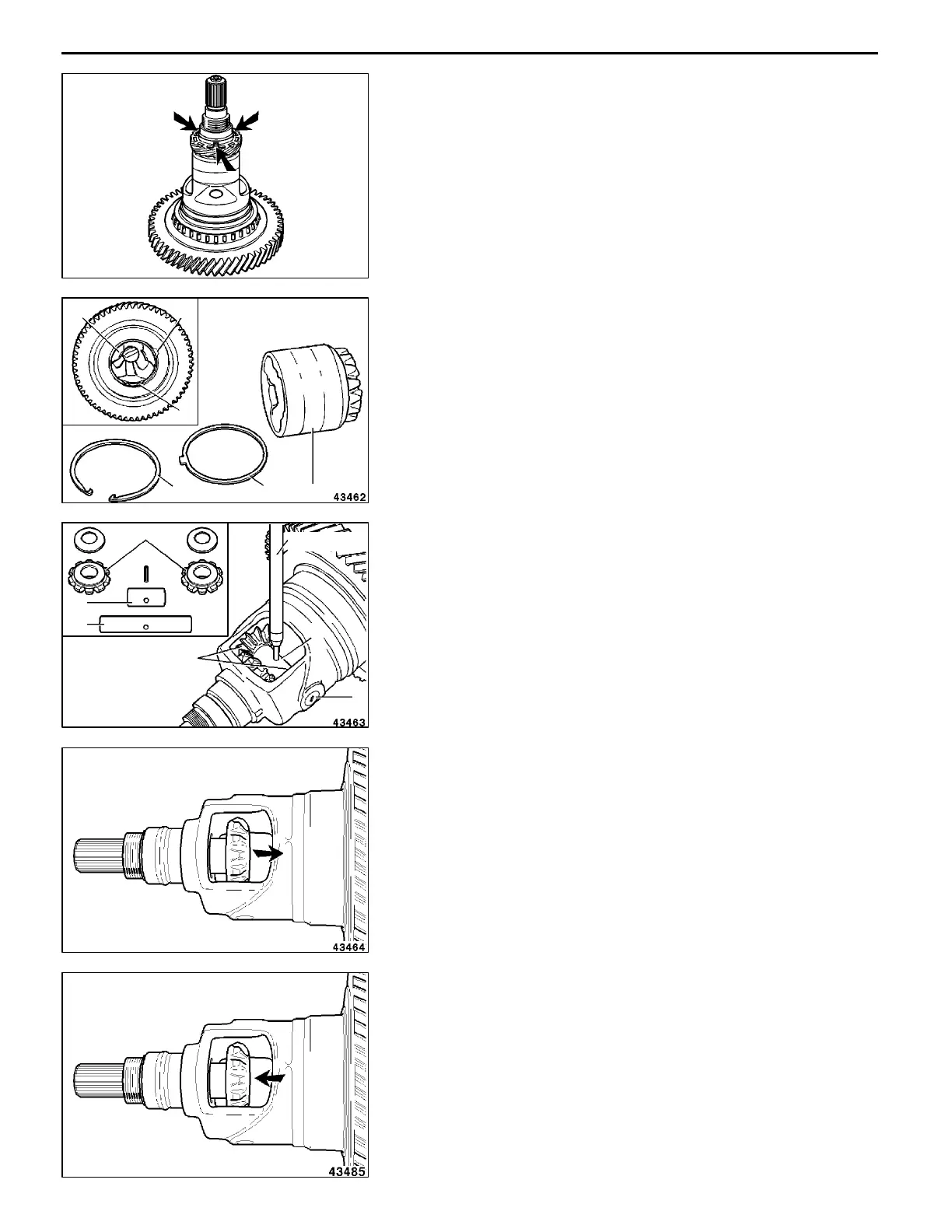

SPEEDOMETER DRIVE GEAR REMOVAL
Take the speedometer drive gear out of the differential.
A
F
"
SIDE GEAR REMOVAL
(1) Remove the snap ring 1.
(2) Remove the shim 2.
(3) Withdraw the side gear 3.
A
G
"
PINION GEAR REMOVAL
(1) Remove the spring pin with spring pin extractor
MD998019.
(2) Take out the shaft 4 together with the bush 5.
(3) Remove the pinion gears 6 together with the thrust
washers.
A
H
"
SIDE GEAR REMOVAL
Take the side gear out of the differential case.
REASSEMBLY SERVICE POINTS
"
A
A
SIDE GEAR INSTALLATION
(1) Smear the side gears with grease.
(2) Locate the side gear in the differential case.
RevisedPWEE9508-BMitsubishi Motors Corporation
May 1996
E
RMT0044
1
1
2
3
3
2
MD998019
6
6
5
4
4
5
