MANUAL TRANSMISSION (E-W) -
Differential
22A-5-3
PWEE9508
E
May 1995Mitsubishi Motors Corporation

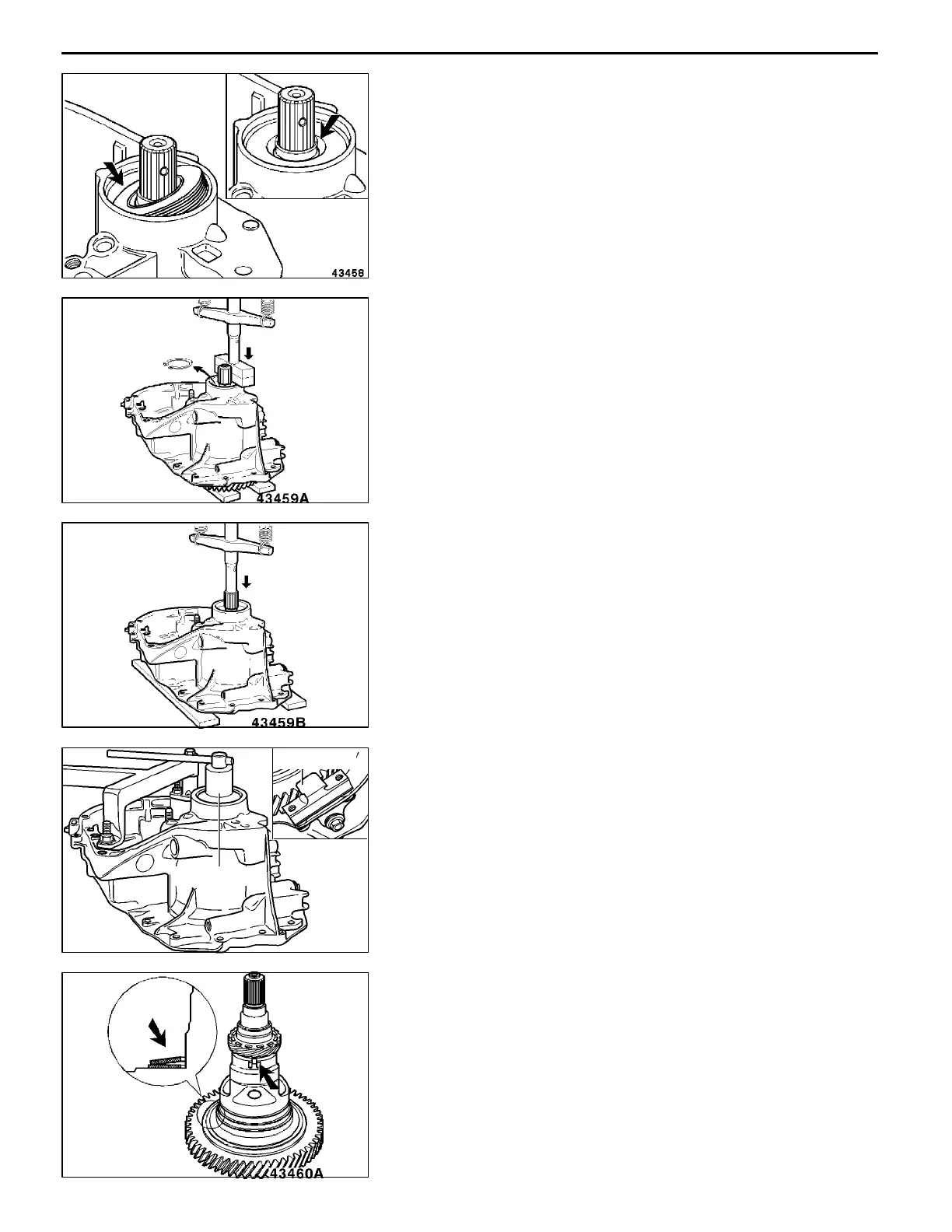

DISASSEMBLY SERVICE POINTS
A
A
"
OIL SEAL REMOVAL
(1) Remove the O-ring.
(2) Tap the oil seal inwards at one side a nd remove it at
the other side.
A
B
"
SNAP RING REMOVAL
(1) Place the clutch housing under a press and support the
differential gear assembly.
(2) Press th e clutch housing downwards (1 mm).
(3) Make sure that the bearing abuts accurately against its
seating.
NOTE
The open side of the bearing must be facing inwards.
(4) Support the clutch housing and press cut the differential
assembly out.
A
C
"
DIFFERENTIAL GEAR ASSEMBLY REMOVAL
(1) Lock the differential gear assembly with counterhold
MB996005.
(2) Remove the nut with socket wrench MB996003.
(3) Remove the counterhold and take out the differential gear
assembly.
(4) Remove the shim.
(5) Take out the bearing.
A
D
"
SPEEDOMETER DRIVE GEAR/SPRING RING/
GUARD GEAR REMOVAL
(1) Take the speedometer drive gear off the differential.
(2) Remove th e spring ring.
(3) Remove the guard ring.
RevisedPWEE9508-BMitsubishi Motors Corporation
May 1996
E
+1mm
RMT0043
MB996003
MB996005
