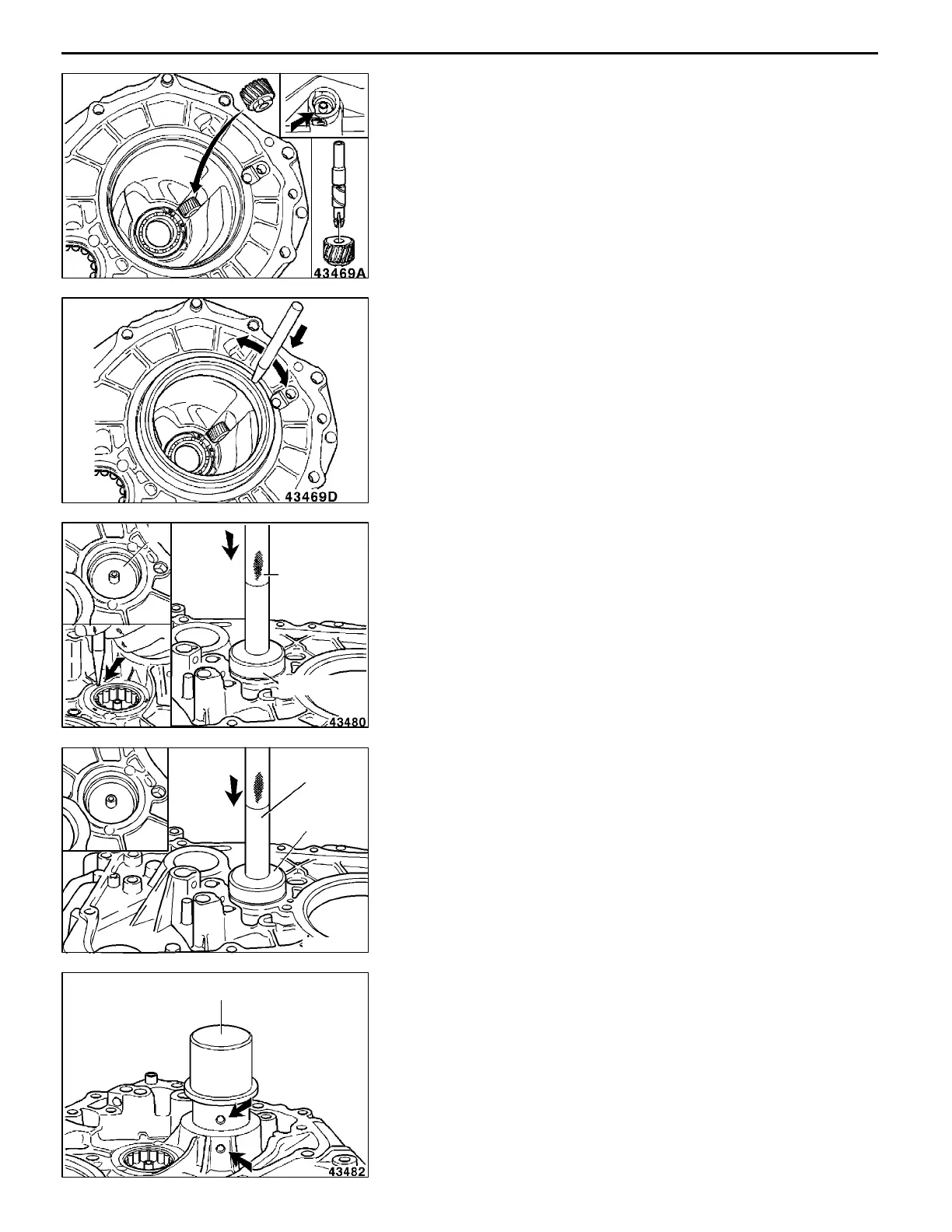

SPEEDOMETER DRIVE GEAR INSTALLATION
(1) Introduce the shaft together with the speedometer drive
gear in the clutch housing and note the position of the
speedometer drive gear relative to the shaft.
(2) Press the shaft firmly into place (snap connection).
(3) Smear liberal amounts of grease on the gears.
"
D
A
LARGE BEARING INSTALLATION
(1) Coat the mating face with the specified sealant.
(2) Fit the bearing by tapping it in with a plastic -hammer.
(3) Make sure that the bearing abuts accurately against its
seating.
NOTE
The open side of the bearing must be facing inwards.
"
E
A
OUTPUT SHAFT BEARING INSTALLATION
(1) Fit the oil baffle 1.
(2) Coat the mating face with the specified sealant.
(3) Tap in the bearing with handle MB990938 and installer
MB990931.
(4) Stake the lock washers (upset: about 1 mm) with a centre
punch.
NOTE
The bearing must be flush with the housing.
"
F
A
OUTPUT SHAFT BEARING INSTALLATION
(1) Fit the oil baffle.
(2) Coat the mating face with the specified sealant.
(3) Tap in the bearing with handle MB990938 and installer
MB990931.
NOTE
The bearing must be flush with the housing.
"
G
A
INPUT SHAFT BEARING INSTALLATION
(1) Coat the mating face with the specified sealant.
(2) Locate the bearing so that the oil passages of the bearing
and the housing are opposed.
(3) Press in the bearing with installer MD998717.
NOTE
The bearing must be flush with the housing.
AddedPWEE9508-BMitsubishi Motors Corporation
May 1996
E
MB990938
MB990931
1
MB990931
MB990938
RMT0051
MD998717
