MANUAL TRANSMISSION (E-W) -
Clutch Housing
22A-6-4
PWEE9508
E
May 1995Mitsubishi Motors Corporation
A
F
"

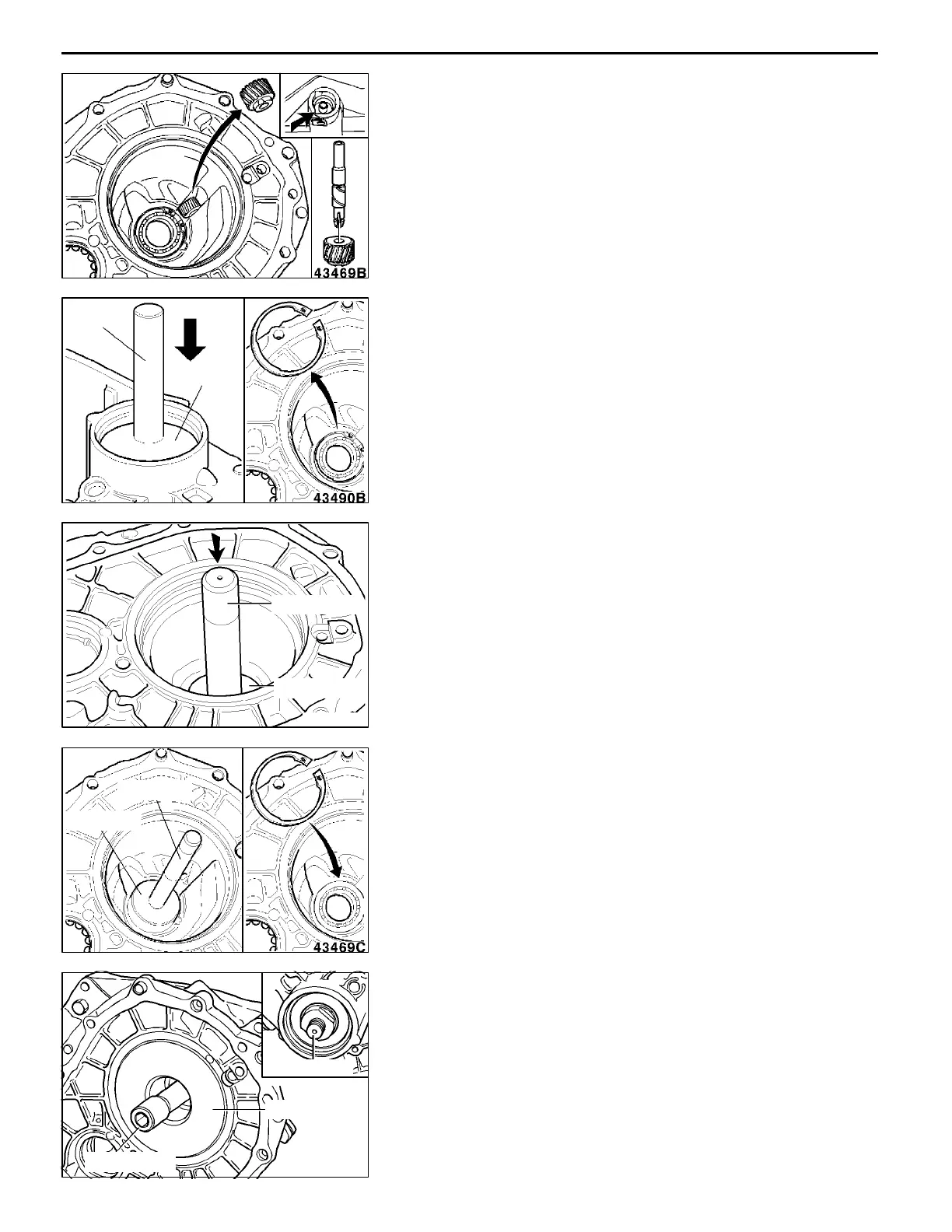

SPEEDOMETER DRIVE GEAR REMOVAL
(1) Pull the shaft out of the speedometer drive gear with
a pair of needle nose pliers.
NOTE
Break the shaft if it cannot be released.
(2) Take the speedometer drive gear out of the differential
housing.
A
G
"
SMALL BEARING REMOVAL
(1) Remove the snap ring with a pair of pliers.
(2) Remove the bearing with handle MB990938 and installer
MB990930.
(3) In the case of a new clutch housing, transfer the following
parts:
Studs
Fitted sleeves
A
H
"
SMALL BEARING CUP REMOVAL
(1) Remove the bearing cup with handle MB990938 and
installer MB990932.
(2) In the case of a new clutch housing, transfer the following
parts:
- threaded ends;
- fitted dowels.
REASSEMBLY SERVICE POINTS
"
A
A
SMALL BEARING INSTALLATION
(1) Coat the mating face with the specified sealant.
(2) Press in the bearing with handle MB990938 and installer
MB990934.
(3) Fit the snap ring with a pair of pliers and secure in the
groove.
"
B
A
LARGE AND SMALL BEARING CUP
INSTALLATION
(1) Coat the mating faces with the specified sealant.
(2) Press in the bearing cups with spindle MB996000 and
installers MB996004 and MB996008.
AddedPWEE9508-BMitsubishi Motors Corporation
May 1996
E
MB990938
MB990930
MB990932
MB990938
RMT0049
MB990938
MB990934
MB996008
MB996000
MB996004
RMT0050
