Mitsubishi F5MR1 User Manual

MANUAL TRANSMISSION (E-W) -
Clutch Housing
22A-6-3
PWEE9508
E
May 1995Mitsubishi Motors Corporation

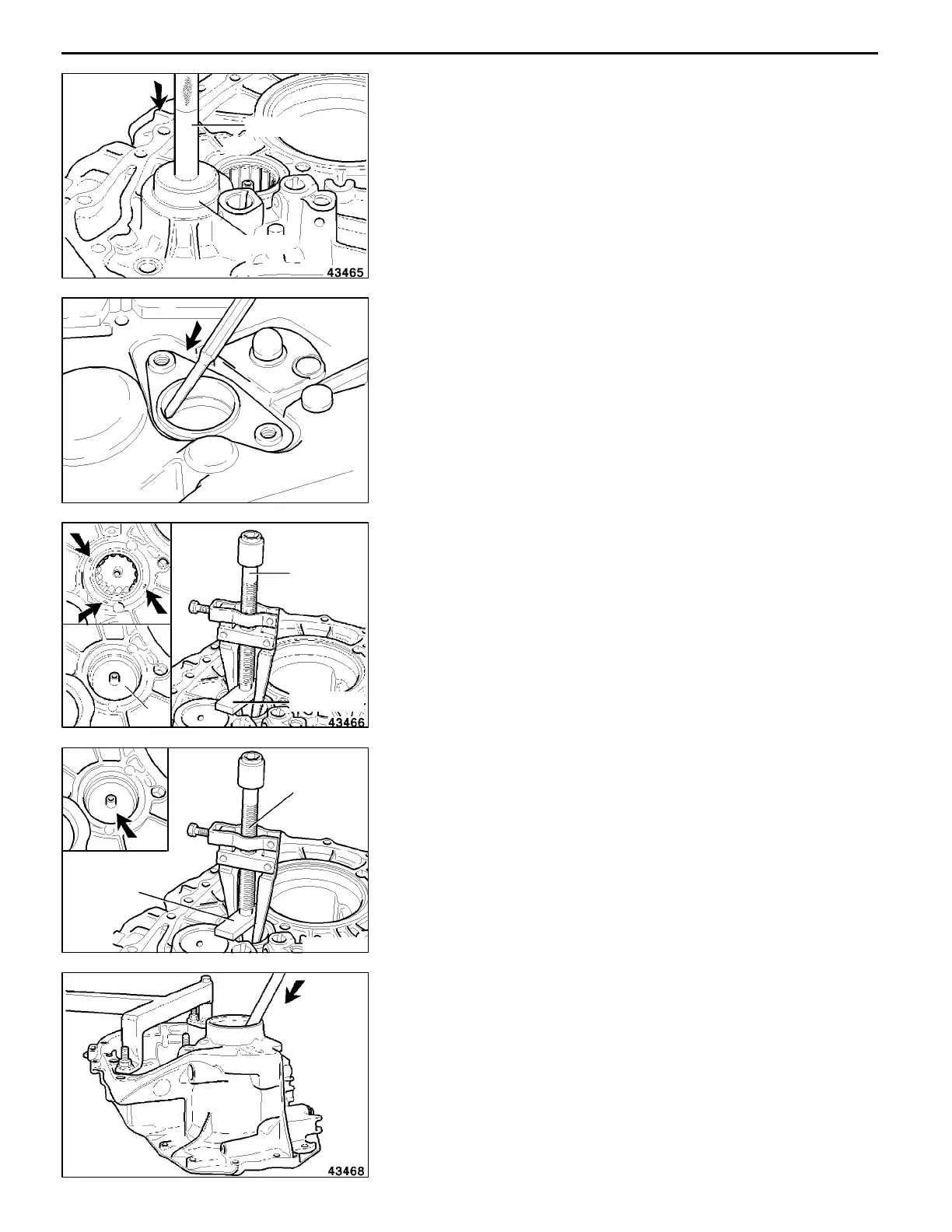

DISASSEMBLY SERVICE POINTS
A
A
"
INPUT SHAFT BEARING REMOVAL
Tap the bearing out of the housing with handle MB990938
and bearing installer set MB990927.
A
B
"
INPUT SHAFT BEARING CUP REMOVAL
Tap the bearing cup out of the housing with a drift.
NOTE
Take care not to damage any of the parts.
A
C
"
OUTPUT SHAFT BEARING REMOVAL
(1) Tap back the upset (staked) edges of the lock washer
with a punch.
(2) Locate puller MB996001 in the bearing and position
bracket MB996006 between the jaws.
(3) Pull the bearing out of the housing.
(4) Remove the oil baffle 1.
NOTE
Remove all traces of the staking with emery cloth.
A
D
"
OUTPUT SHAFT BEARING REMOVAL
(1) Locate bearing puller MB996001 in the bearing and
position the bracket MB996006 between the jaws.
(2) Pull the bearing out of the housing.
(3) Remove the oil baffle.
A
E
"
LARGE BEARING REMOVAL
Tap the bearing cup out of the housing with a long punch.
NOTE
Take care not to damage any parts.
RevisedPWEE9508-BMitsubishi Motors Corporation
May 1996
E
MB990927
MB990938
RMT0047
MB996001
MB996006
1
MB996001
MB996006
RMT0048
