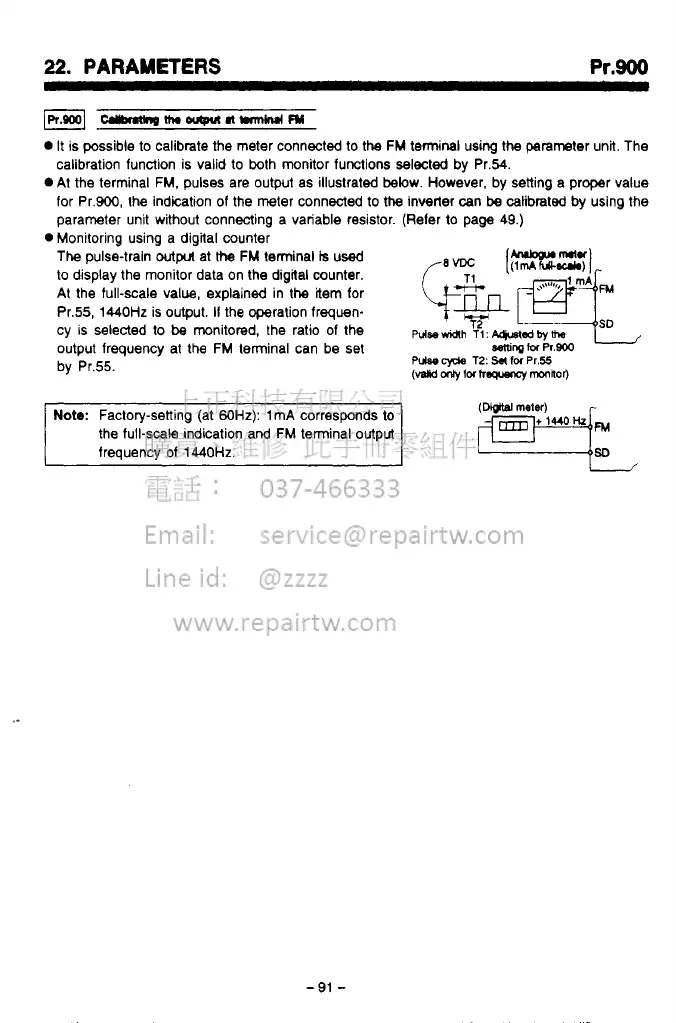

22.
PARAMETERS
Pr.900
-nw-nwm
0
It
is possible
to
calibmte the meter connected to the
FM
terminal using the parameter unit. The
calibration function is valid to both monitor functions selected by Pr.54.
0
At the terminal
FM,
pulses are output as illustrated
below.
However, by setting a proper value
for Pr.900, the indication
of
the meter connected
to
the
inverter can
be
calibrated
by
using the
parameter unit without connecting a variable resistor. (Reler
to
page 49.)
The
pulse-train
output
at
the
FM
terminal
is
used
to
display the monitor data on the digital counter.
At the full-scale value, explained in the item for
Pr.55,
1440Hz
is output.
If
the operation frequen-
cy
is
selected
to
be
monitored, the ratio
of
the
pdse~h
T(:
~qusl~~~
output frequency at the
FM
terminal can be set
Semrq
tu
Pr.800
by Pr.55.
0
Monitoring using a digital counter
Pulse
cyde
T2:
S#
IM
Pr.55
(vslid
fM
hw
mOnhOr)
Note:
Factory-setting (at
60Hz):
1
mA
corresponds to
the full-scale indication and
FM
terminal output
frequency of
1440Hz.
(Dbjtfi
meter)
-91
-
