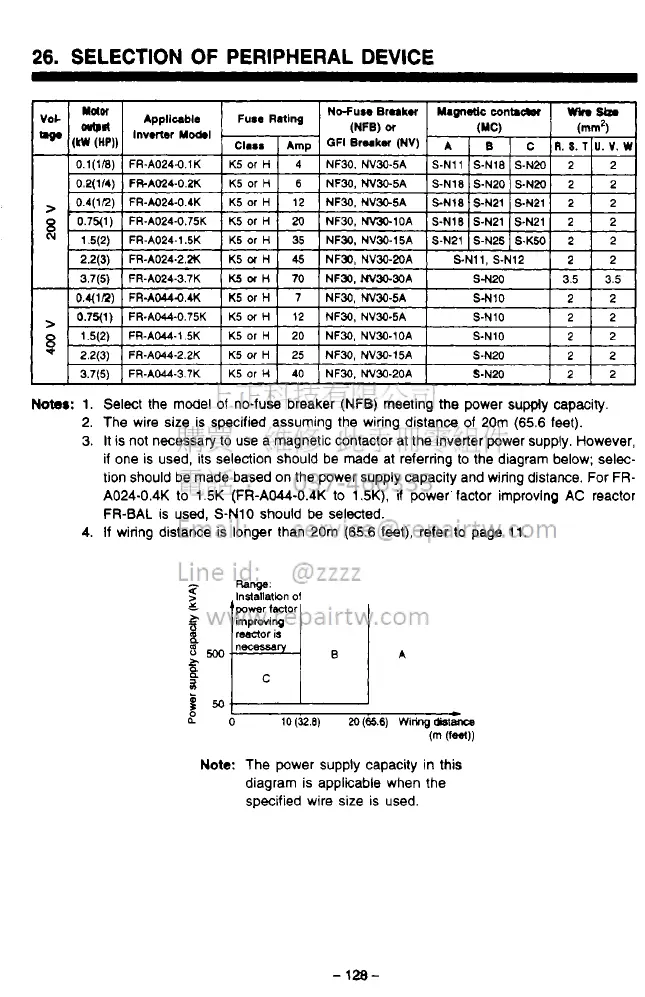

26.
SELECTION
OF
PERIPHERAL DEVICE
r?
J
Notes:
1. Select the model of no-fuse breaker (NFB) meeting the power supply capacity.
2. The wire size is specified assuming the wiring distance of
20m
(65.6
feet).
3.
It
is
not necessary
to
use a magnetic contactor at the inverter power supply. However,
if one is used, its selection should be made at referring
to
the diagram below; selec-
tion should be made based on the power supply capacity and wiring distance. For
FR-
A024-0.4K
to
1.5K
(FR-AW-0.4K
to
1.5K),
if
power factor improving
AC
reactor
1
FR-BAL
is used, S-N10 should
be
selected.
4.
If wiring distance is longer than 20m
(65.6
feet), refer to page 11.
LO
10
(32.8)
M
(65.6)
Wiring
&stance
(m
(fW)
Note:
The power supply capacity in this
diagram is applicable when the
specified wire size is used.
-
128-
To Next Page
