Location of rear-view camera

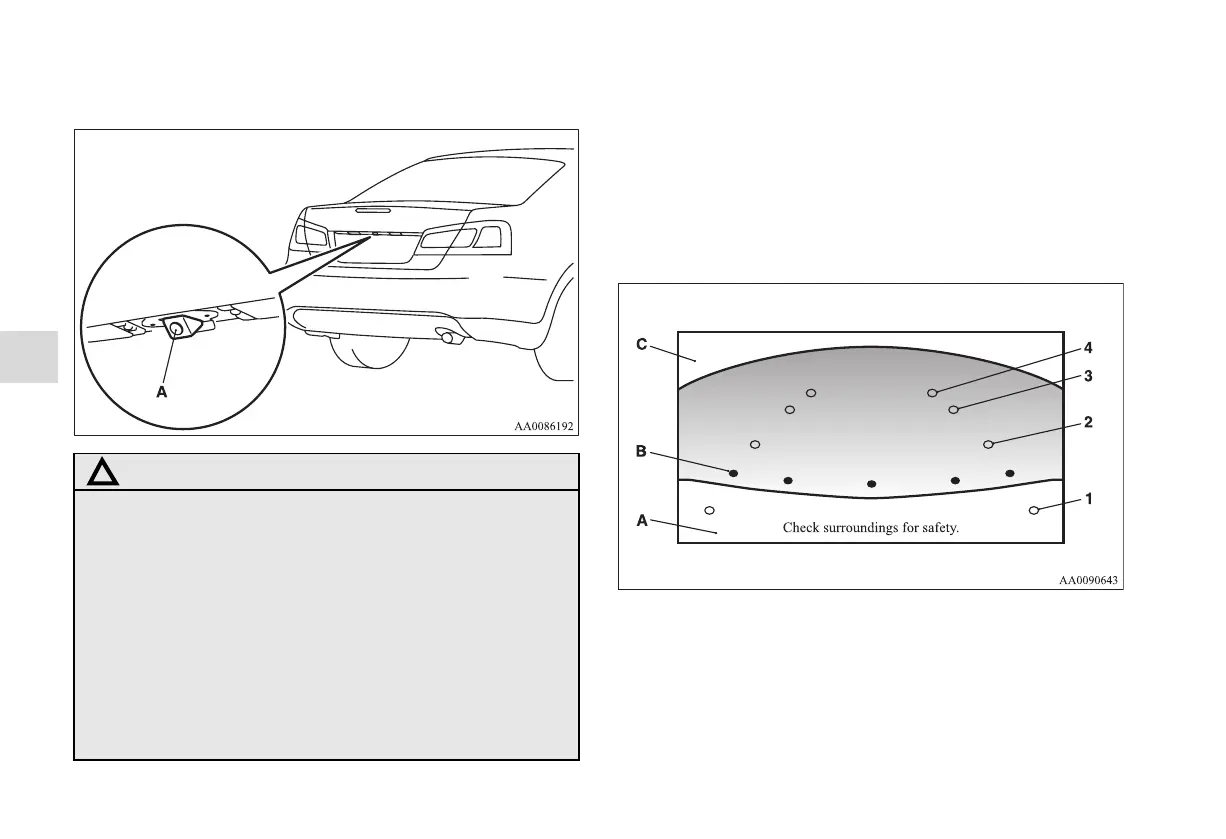

The rear-view camera (A) is in the trunk lid.
Screen image
Reference guide marks, upper surface of the rear bumper (A)
and a part of the trunk lid (C) are displayed on the screen.
● Five guide marks in red (B) indicates approximately 20
inches (50 cm) behind the rear bumper.
● Each row of green guide marks (1 to 4) indicates approxi-
mately 8 inches (20 cm) outside of the vehicle body.
● Every single green guide mark indicates distance from the
rear bumper.
CAUTION
!
● If the camera lens gets dirty, a clear image cannot be
obtained. As necessary, rinse the lens with clean
water and gently wipe with a clean, soft cloth.
● To avoid damaging the camera;
• Do not rub the cover excessively or polish it by
using an abrasive compound.
• Do not disassemble the camera.
• Do not splash hot water directly on the lens.
• Do not spray the camera and its surroundings with
high-pressure water.
• Make sure that the trunk lid is securely closed
when backing up.
1: Approximately at the rear edge of the rear bumper
2: Approximately 39 inches (100 cm)
3: Approximately 79 inches (200 cm)
4: Approximately 118 inches (300 cm)
