Fuses
N00942800263
Fuse block location
N00901000080
To prevent damage to the electrical system from short-circuit-
ing or overloading, each individual circuit is equipped with a
fuse. The fuse blocks are located in the passenger compartment
and in the engine compartment.
Passenger compartment

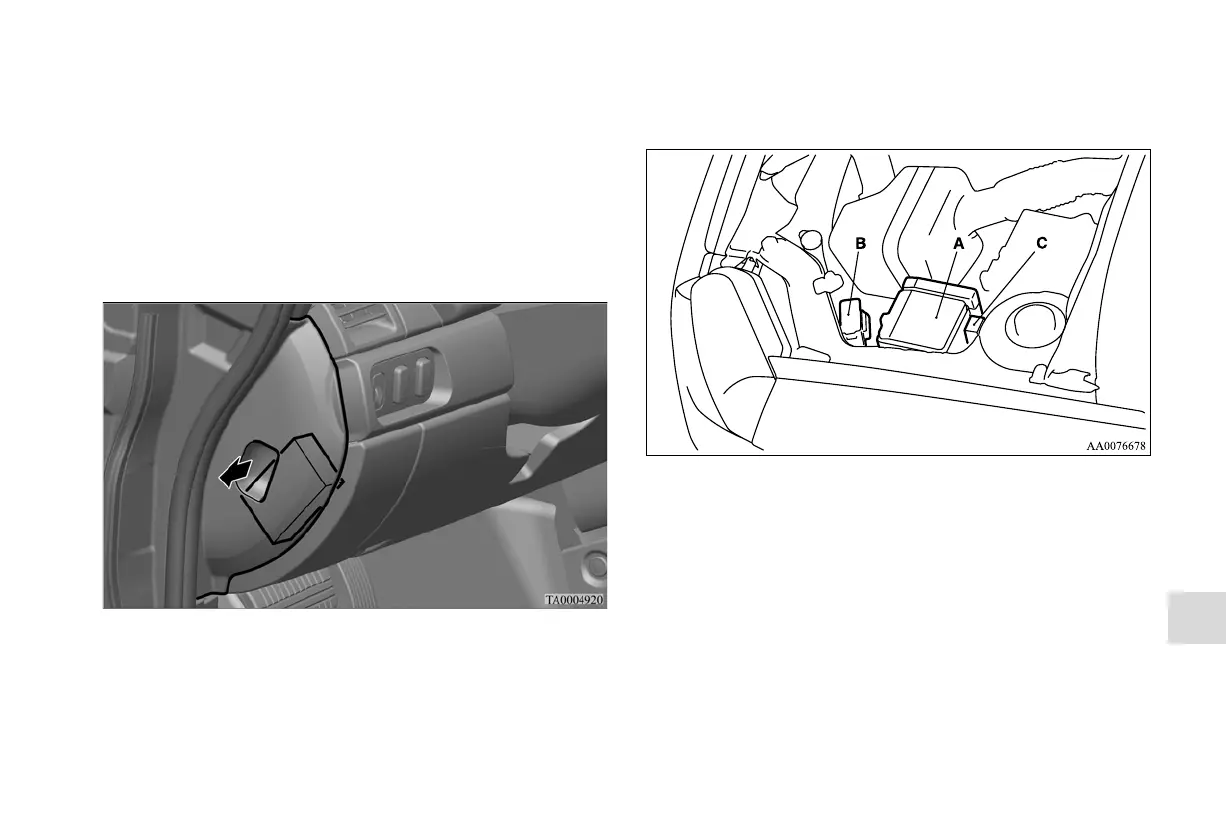

The fuse block in the passenger compartment is located in front
of the driver’s seat at the position shown in the illustration.
Engine compartment
In the engine compartment, the fuse blocks are located as
shown in the illustration.
