V
ehicle c
ar
e and m
aintena
nce
7-53
7

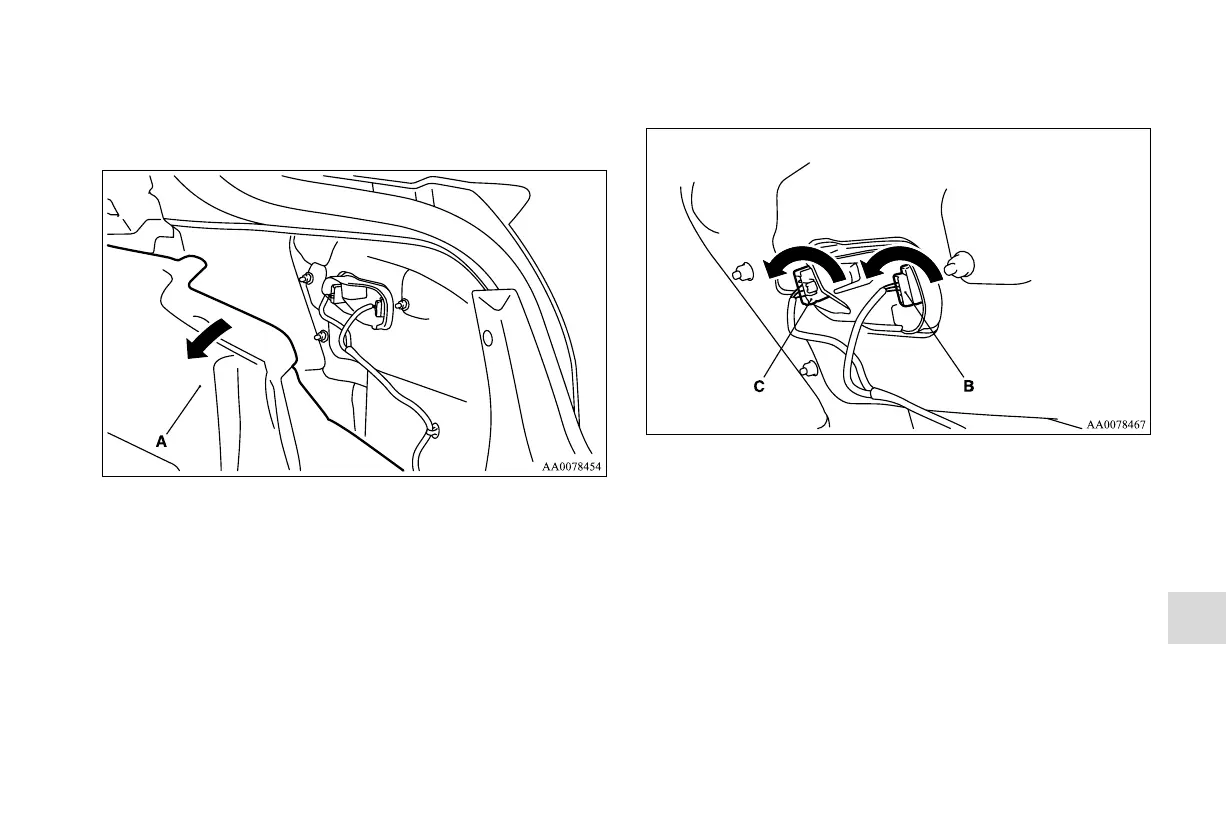

Rear comb
ination ligh
ts
N00943700416
1.
O
pen the lid.
Partially take off the trim cover (
A).
2.
Remove each socket and bulb assembly by turn
i
ng it
counterclockwise.
3.
T
o in
stall the bulb, perform the removal steps in reverse.
B-
Rear
turn-s
ignal ligh
t
Remove the bulb by pulling it out.
C-
T
ail and sto
p light
Remove the bulb by pulling it out.
BK01212
00US.boo
k 53
ペー
ジ
２０１
０年４
月１４
日 水
曜日
午前１
１時２
４分
387
389
