7-47
7
Headlight
s
N00943100856

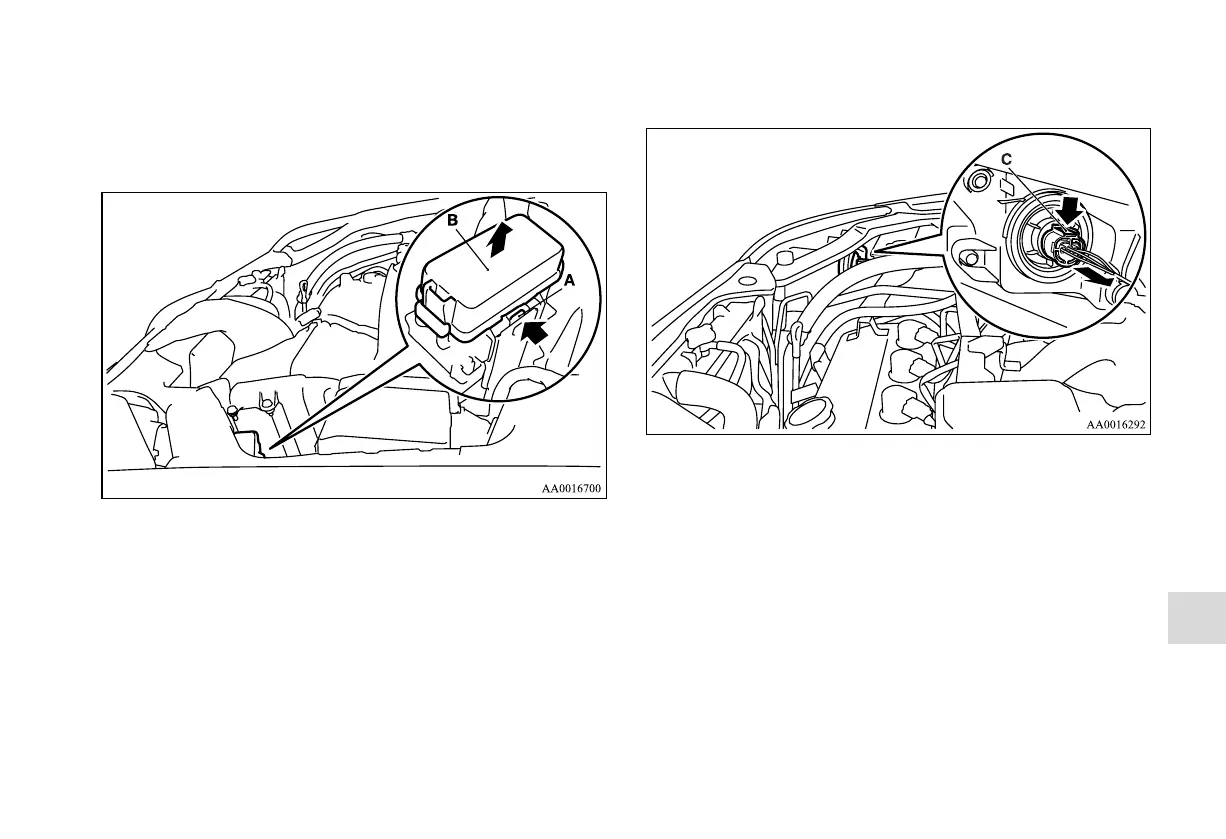

1.
W
hen replacing the headlight bulb on the le
ft side,
remove the rela
y box. Pu
ll the relay box (B) u
pward whi
le
pressing the tab
(A).
2.
Depress
the tab (C) on the harnes
s
connector an
d pull the
harness co
nnector tow
ard you t
o remove
it.
BK01212
00US.boo
k 47
ペー
ジ
２０１
０年４
月１４
日 水
曜日
午前１
１時２
４分
