BOLTED PANEL FIT AND ADJUSTMENT
REFERENCE MATERIAL
8-4

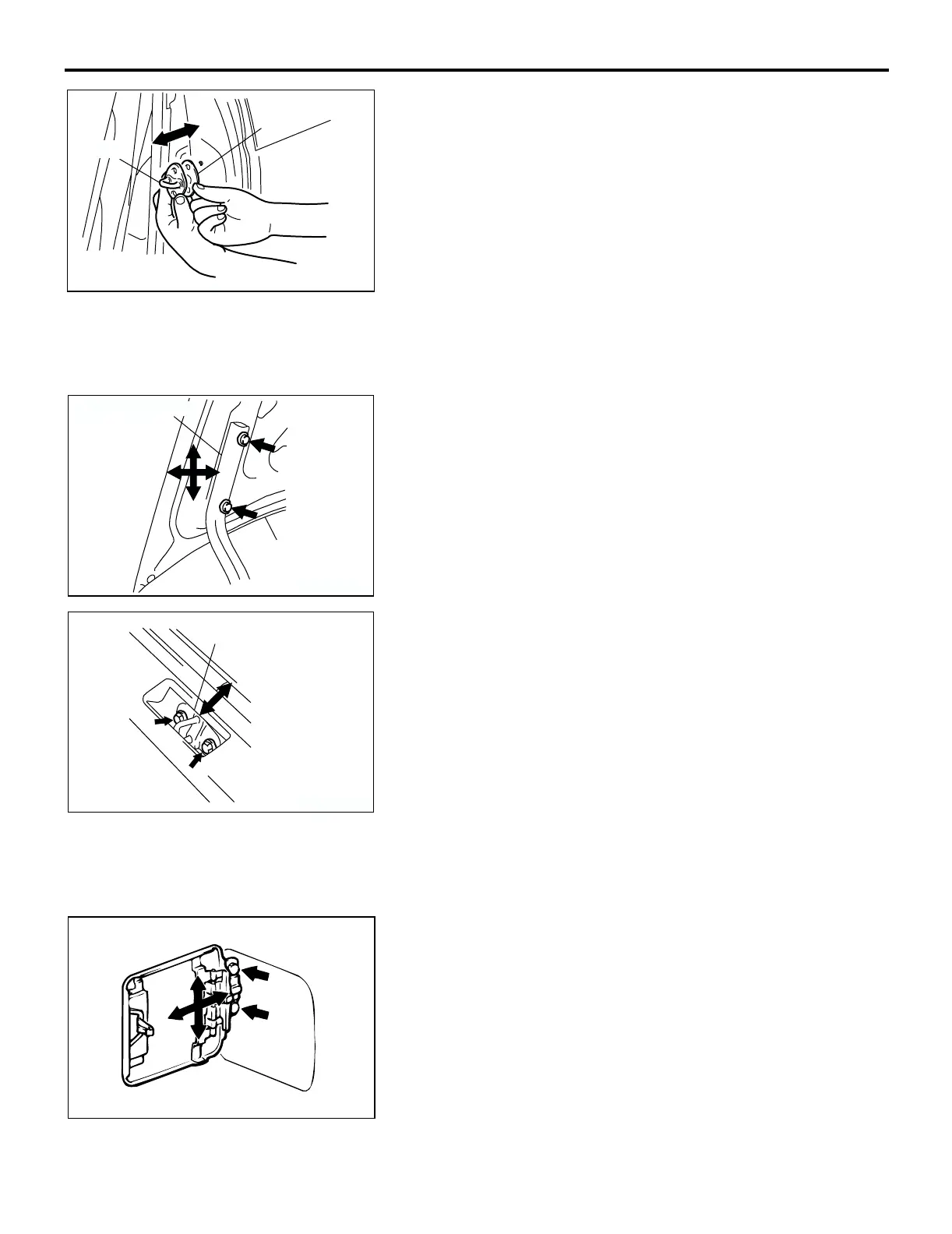

(3) Adjustment by using shims (forward and rearward)
Increase or decrease the number of shims so that the
striker engages with the door latch properly.
Door striker assembling bolt tightening torque:
11 ± 2 N⋅m (98 ± 17 ft-lb)
TRUNK LID
M4080017000012
ADJUSTMENT OF TRUNK LID FIT
1. If the clearance between the trunk lid and body is
inconsistent, loosen the trunk lid mounting bolt, and move
the trunk lid to adjust so that the clearance around the trunk
lid becomes consistent.
2. If the trunk lid is floating, if the trunk lid latch is released, or if
the latch is heavy, inspect the arrangement of the release
cable, loosen the trunk lid striker mounting bolts, and move
the trunk lid striker to adjust the alignment between the trunk
lid and latch.
Trunk lid striker mounting bolts tightening torque:
8.8 ± 2 N-m (78 ± 17 in-lb)
FUEL FILLER LID
M4080008000069
ADJUSTMENT OF FUEL FILLER LID FIT
If the leveling and clearance of the fuel filler door is uneven,
loosen the fuel filler door assembling bolt, then move and
adjust the fuel filler door.
Fuel filler door assembling bolt tightening torque: 5.0
±1.0 N-m (44 ±9in-lb)
AC006111
AB
SHIM
STRIKER
AC202897
TRUNK LID
PANEL ASSEMBLY
TRUNK LID HINGE
AB
AC202898
TRUNK LID STRIKER
AB
AB100498
