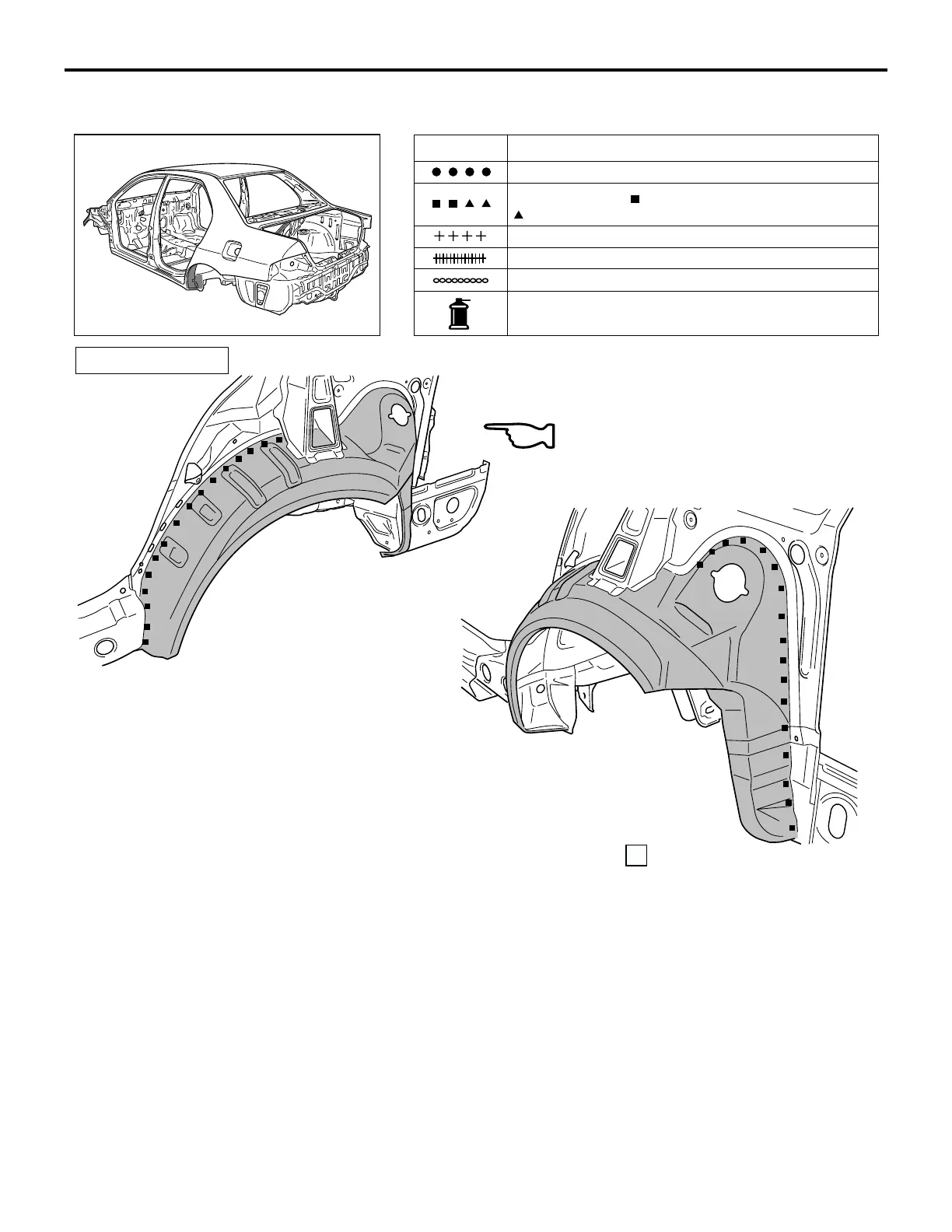

QUARTER INNER (PARTIAL REPLACEMENT)
WELDED PANEL REPLACEMENT
3-34
QUARTER INNER (PARTIAL REPLACEMENT)
M4030000200031
NOTE: Refer to the Quarter Outer Section on P.3-24
for the welding points with the quarter outer.
AB201914
SYMBOL
OPERATION DESCRIPTION
Spot welding
MIG plug welding ( : indicates two panels to be welded
: indicates three panels to be welded)
MIG spot welding
MIG arc welding (continuous)
Braze welding
Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)
AB
AB202232
REPAIR WELDS
A
A
AB
To Next Page
