BODY REPAIR
BASE OF BODY REPAIR
9-24
ATTACHMENT OF SILENCERS
M4090009000018
Silencers (petroleum-asphalt sheets) are attached to
the upper surface of the floor and at the interior side
of the dash panel in order to absorb vibrations and
shut out exhaust gas heat. If these silencers are
peeled off in the course of replacement or repair of a
welded panel, cut and attach replacement material
(in the shape shown in the figure). For detailed infor-
mation concerning the locations where silencers are
to be attached for individual models, refer to the
manual for that model.
1. Heat the "silencer layer" (petroleum-asphalt sheet) with a
blow drier to soften it.
2. Align the silencer layer in the position where it is to be
installed, and then press it down with a roller or a block of
wood so that it adheres well.
NOTE: An infrared lamp can also be used to heat both the
silencer layer and the body panels (be sure to wear gloves).

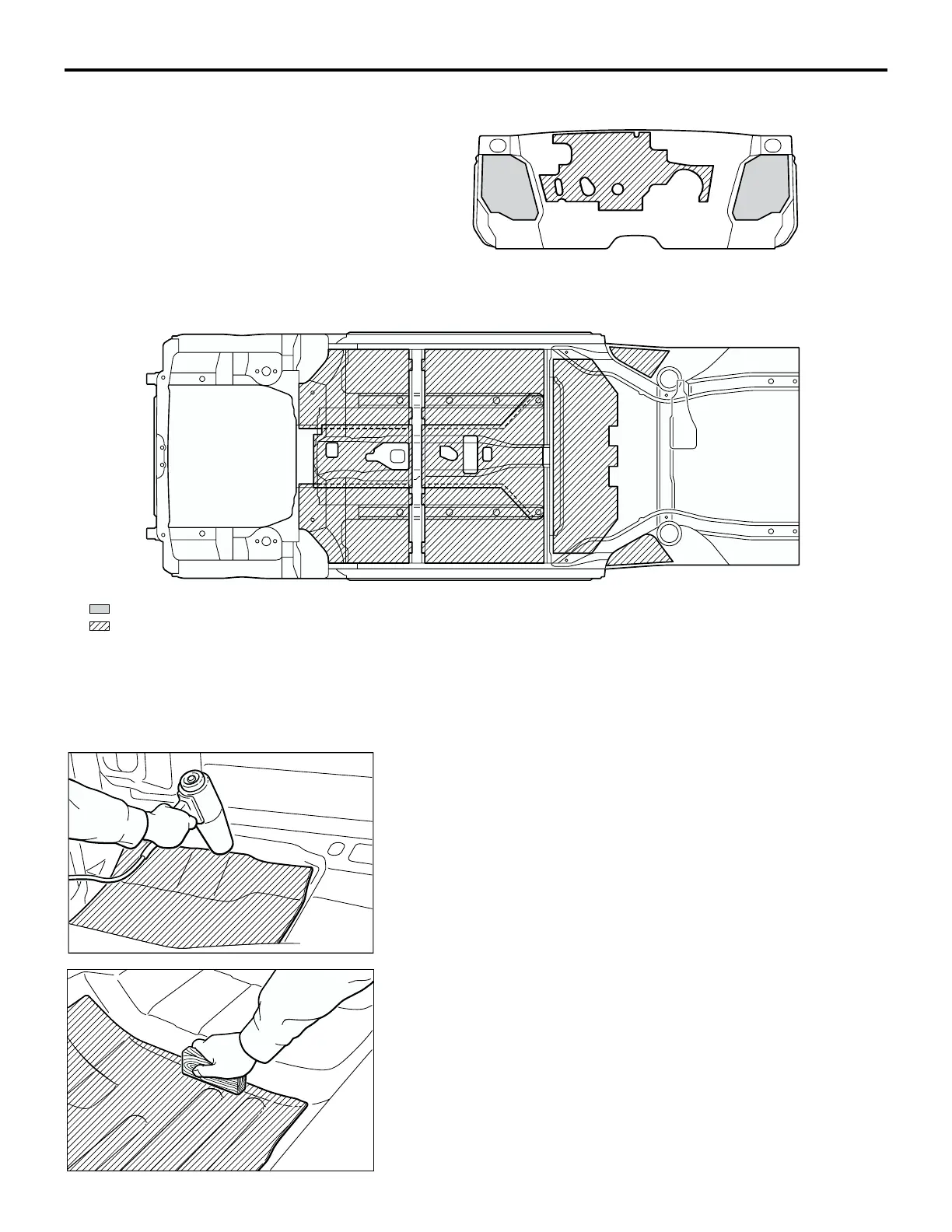

AB200097
:
:
AB
DASH PANEL INTERIOR SIDE
Thickness: 1.6 mm (0.06 in)
Thickness: 3.2 mm (0.13 in) (two 1.6 mm (0.06 in) silencers overlapped)
AB200098
AB200099
