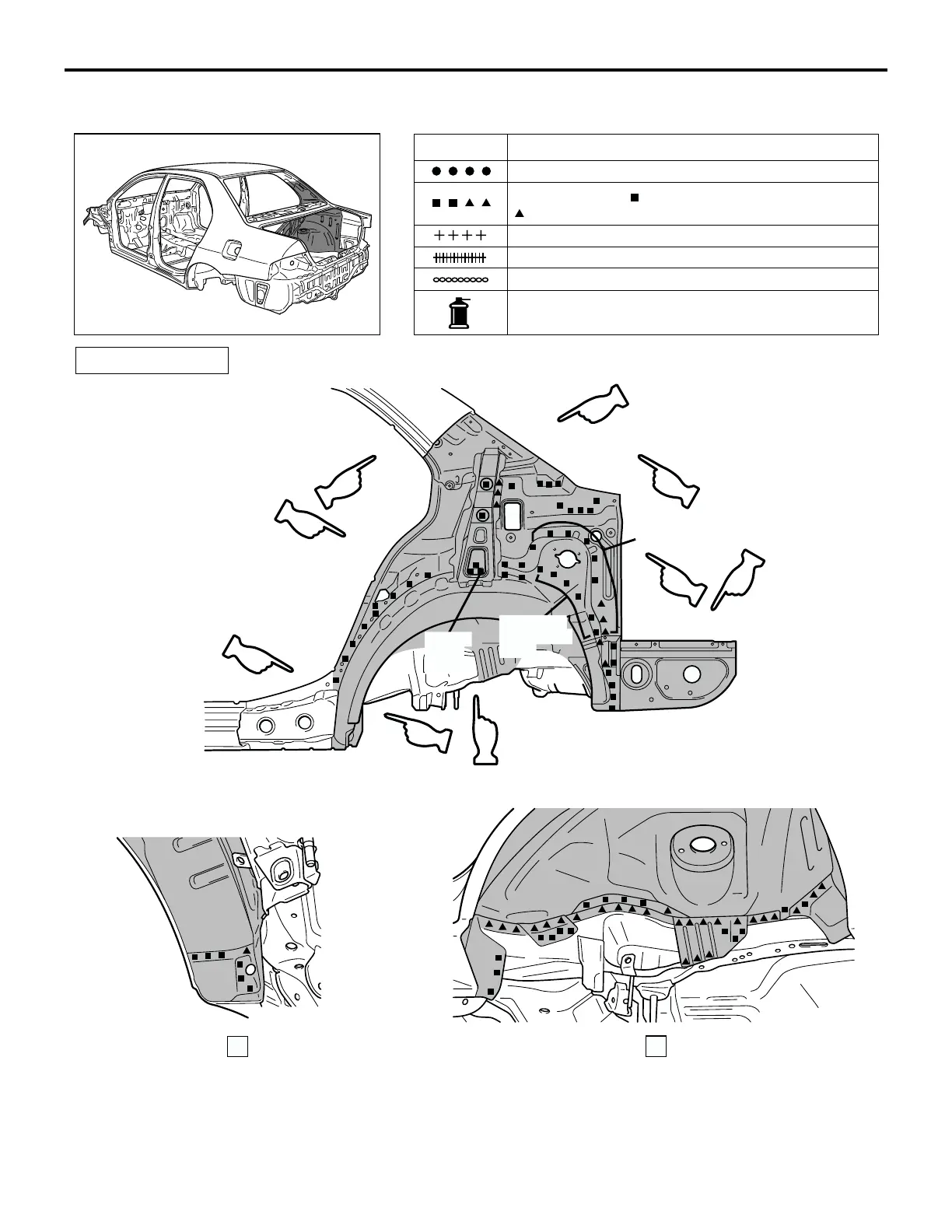

QUARTER INNER
WELDED PANEL REPLACEMENT
3-32
QUARTER INNER
M4030012000090
NOTE: Refer to the Quarter Outer Section on P.3-24
for the welding points with the quarter outer.
AB201913
SYMBOL
OPERATION DESCRIPTION
Spot welding
MIG plug welding ( : indicates two panels to be welded
: indicates three panels to be welded)
MIG spot welding
MIG arc welding (continuous)
Braze welding
Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)
AB
AB202230
I
F
F
B
A
G
E
H
C
AB
REPAIR WELDS
9 POINTS ON LEFT SIDE
6 POINTS
ON RIGHT
SIDE
RIGHT
SIDE
ONLY
(WITH THE QUARTER OUTER REMOVED)
A
B
To Next Page
