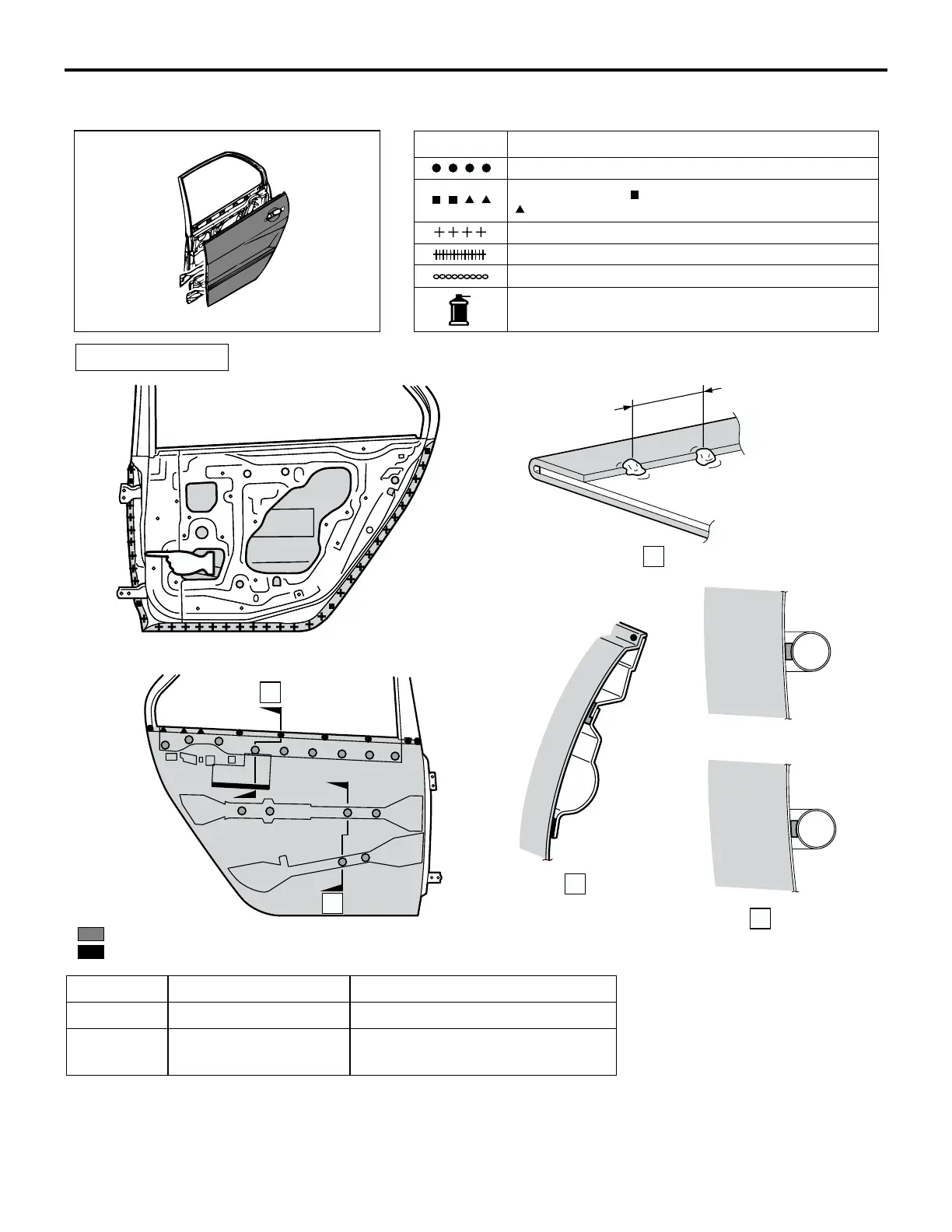

REAR DOOR OUTER PANEL
WELDED PANEL REPLACEMENT
3-38
REAR DOOR OUTER PANEL
M4030014000096
NOTE: After hemming the rear door outer panel, MIG
spot weld the flange overlap section at a pitch of 50
mm (1.97 in).
AB201893
SYMBOL
OPERATION DESCRIPTION
Spot welding
MIG plug welding ( : indicates two panels to be welded
: indicates three panels to be welded)
MIG spot welding
MIG arc welding (continuous)
Braze welding
Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)
AB
AB202234
A
50 mm
(1.97 in)
B
B
A
C
C
: ADHESIVE 1
: ADHESIVE 2
AB
REPAIR WELDS
ADHESIVE TYPE BRAND
adhesive 1 Urethane body sealer 3Mä Part No. 8542 or equivalent
adhesive 2 Epoxyayresin
adhesive
3Mä Part No. 8115 or equivalent
