REAR FLOOR
WELDED PANEL REPLACEMENT
3-31
NOTE ON REPAIR WORK
.
REMOVAL

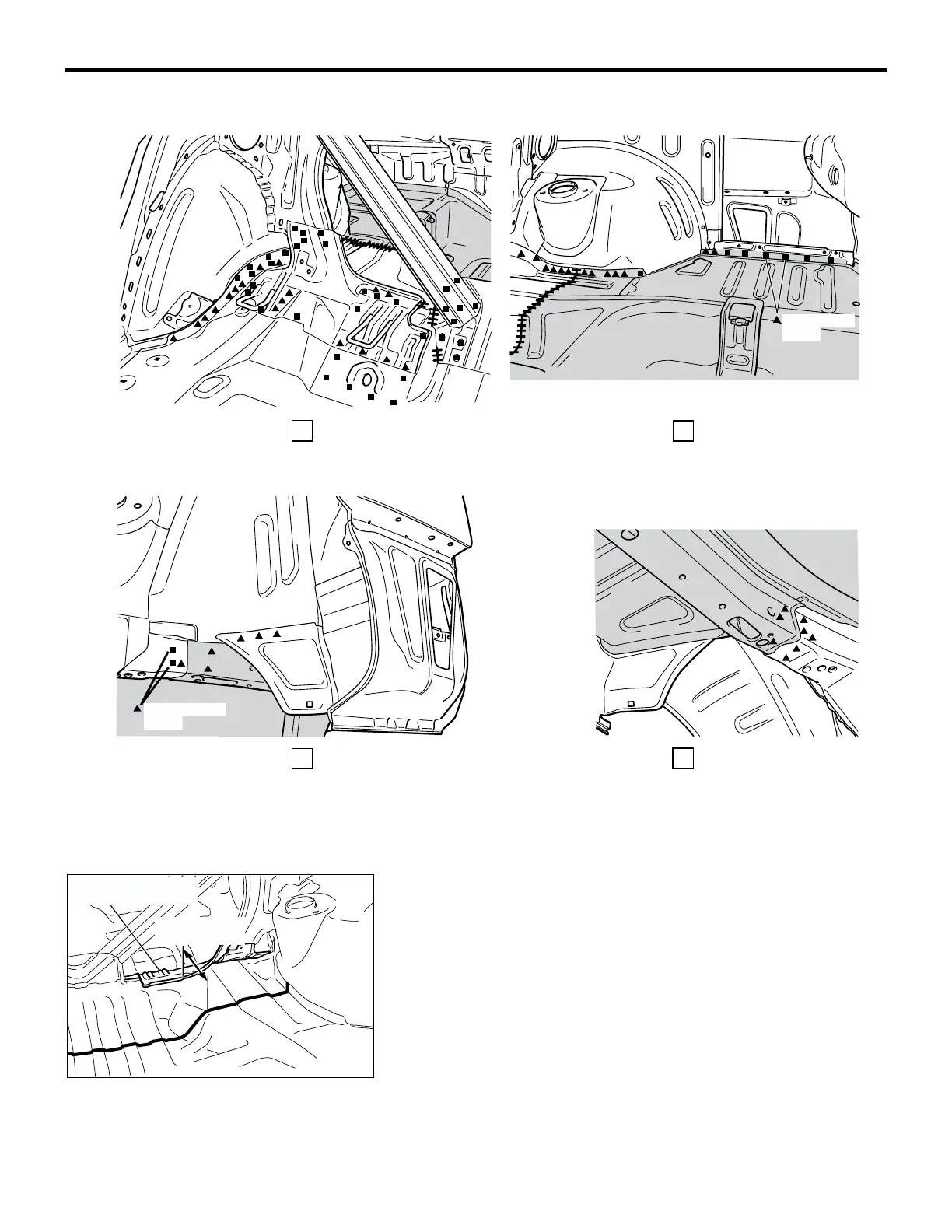

Cut the rear floor pan 200 ± 50 mm (7.9 ± 1.97 in) from the
back of the rear seat back reinforcement as shown in the illus-
tration.
AB202229
AB
RIGHT SIDE
ONLY
LEFT SIDE
ONLY
C
D
F
E
AB201934
AB
200 ± 50 mm
(7.9 ± 1.97 in)
REAR SEAT BACK
REINFORCEMENT
