QUARTER INNER (PARTIAL REPLACEMENT)
WELDED PANEL REPLACEMENT
3-35
NOTE ON REPAIR WORK
.
REMOVAL

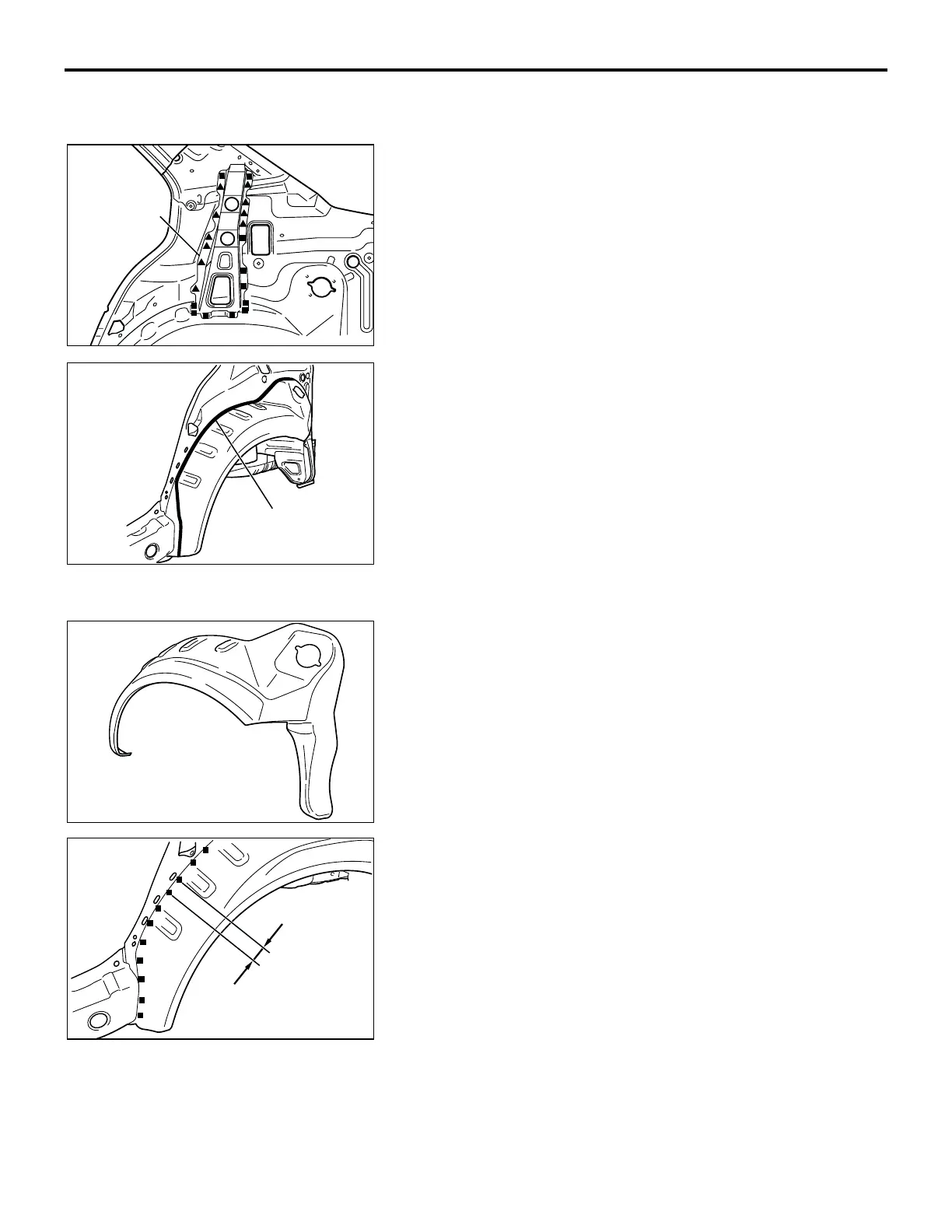

1. Since there is a rear pillar reinforcement in the quarter inner
panel cut area, remove the rear pillar reinforcement.
2. Adhere tape along the wheel arch of the quarter inner panel
as shown in the figure of the instructions, use the tape as a
guide so about 20mm (0.79 in) of the flange remains, then
cut and remove.
.
INSTALLATION
1. For the new quarter inner panel, cut the wheel arch end are
so that it overlaps with the flange on the body-side.
2. Overlap, assemble and weld the quarter inner panel with the
body-side flange. Weld at a pitch of 40mm (1.57 in).
AB202008
REAR PILLAR
REINFORCE-
MENT
AB
AB202293
AB
TAPE
AB202294
AB
AB202295
AB
40 mm
(1.57 in)
