6. Thoroughly clean fog light lenses.
7. Place the vehicle on a level floor, perpendicular to a flat
screen 7.62m (25.0 feet) away from the bulb center-marks
on the fog light lens.
8. Rock vehicle sideways to allow vehicle to assume its normal
position.
9. Bounce the front suspension through three (3) oscillations
by applying the body weight to hood or bumper.

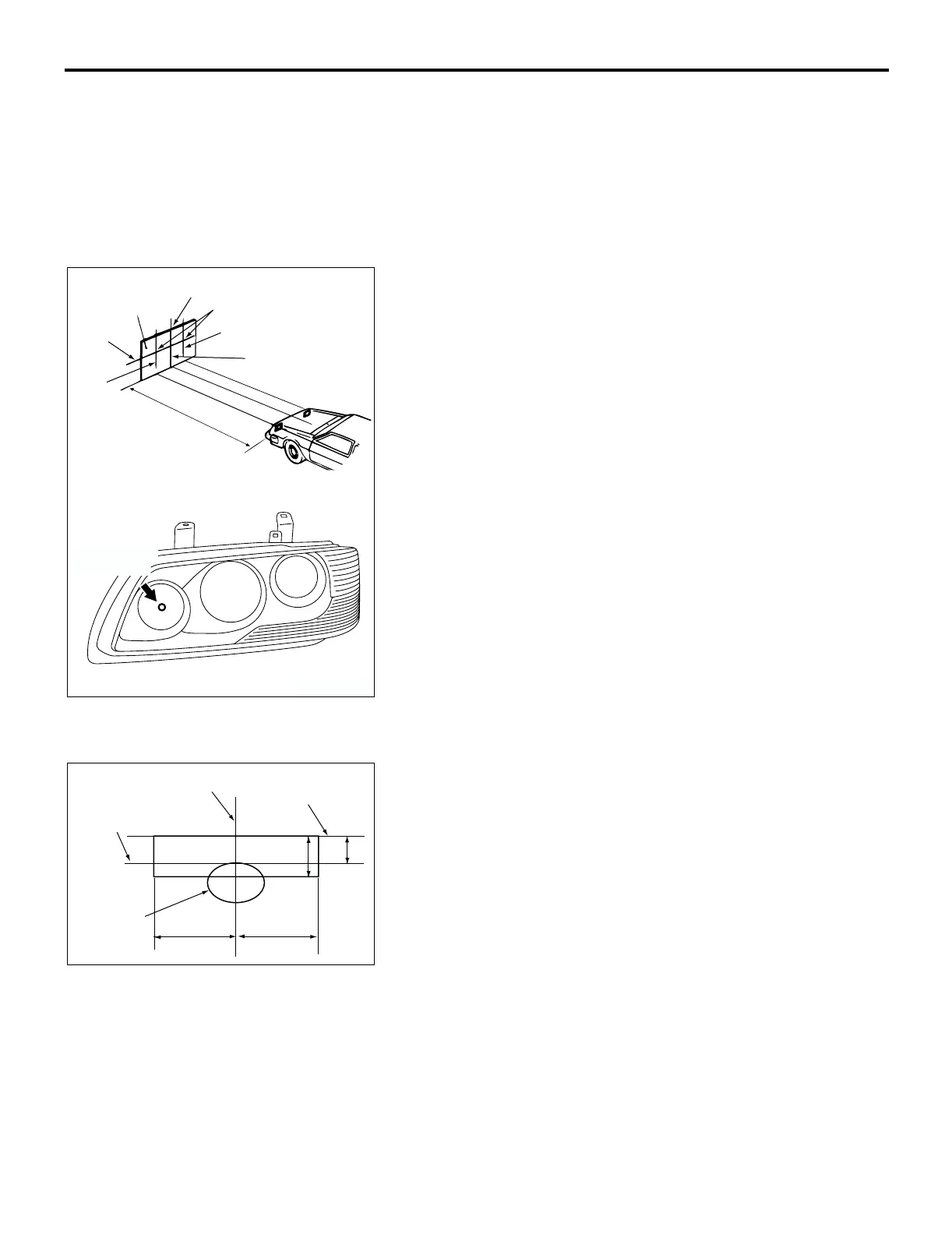

10.Measure the center of the fog lights as shown in the
illustration.
11.Four lines of adhesive tape (or equivalent markings) are
required on screen or wall:
(1) Position a vertical tape or mark so that it is aligned with
the vehicle center line.
(2) Measure the distance from the center-marks on the fog
light lens to the floor. Transfer the measurement to the
screen. Horizontal tape or mark on the screen is for
reference of vertical adjustment.
(3) Measure the distance from the center line of the vehicle
to the center of each fog light. Transfer the measurement
to the screen. Vertical tape or mark on the screen with
reference to the center line of each fog light bulb.
FOG LIGHT ADJUSTMENT
1. Check if the beam shining onto the screen is at the standard
value.
AC211173
(1)
(2)
(3)
VEHICLE CENTER
LINE
SCREEN
(3)
7.62m (25.0 ft)
AB
FOG LIGHT CENTER
CENTER OF
THE LIGHT
AC100547
HEIGHT OF FOG
LIGHT CENTER
VERTICAL CENTER LINE
AHEAD OF FOG LIGHT
UPPER MOST LEVEL
OF HOT ZONE
HOT ZONE
mm (in)
AB
152 (6.0)
101 (4.0)
598 (23.5)
598 (23.5)
To Next Page
