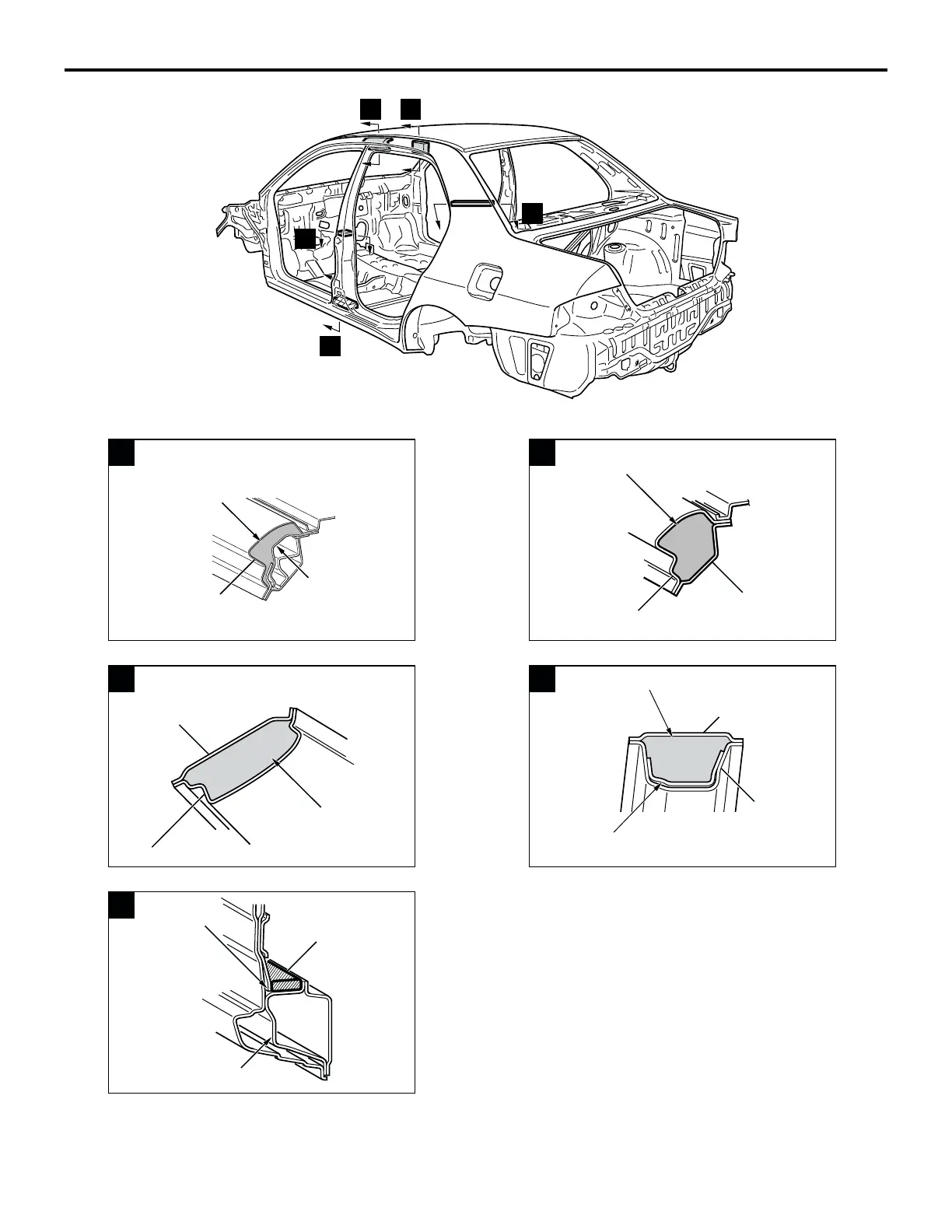

LOCATIONS USING URETHANE FOAM AND FOAM MATERIAL
BODY CONSTRUCTION
1-23
AB201918
E F
H
G
I
AB
AB100698
AB201977
AB
FRONT PILLAR
REINFORCEMENT
UPPER
SIDE OUTER PANEL
E
HIGH RIGIDITY
FOAM MATERIAL
AB201980
AB
SIDE ROOF
RAIL INNER
SIDE OUTER PANEL
F
FOAM ACOUSTIC MATERIAL
AB201981
AB
SIDE OUTER PANEL
REAR PILLAR INNER
FOAM ACOUSTIC
MATERIAL
G
AB201982
AB
CENTER PILLAR
INNER
REAR DOOR HINGE
REINFORCEMENT UPPER
SIDE OUTER
PANEL
H
FOAM ACOUSTIC MATERIAL
AB201983
AB
SIDE SILL OUTER
REINFORCEMENT CENTER
CENTER
PILLAR
REINFORCE-
MENT
URETHANE
FOAM
I
