Mitsubishi LANCER EVOLUTION 2003 Body Repair Manual

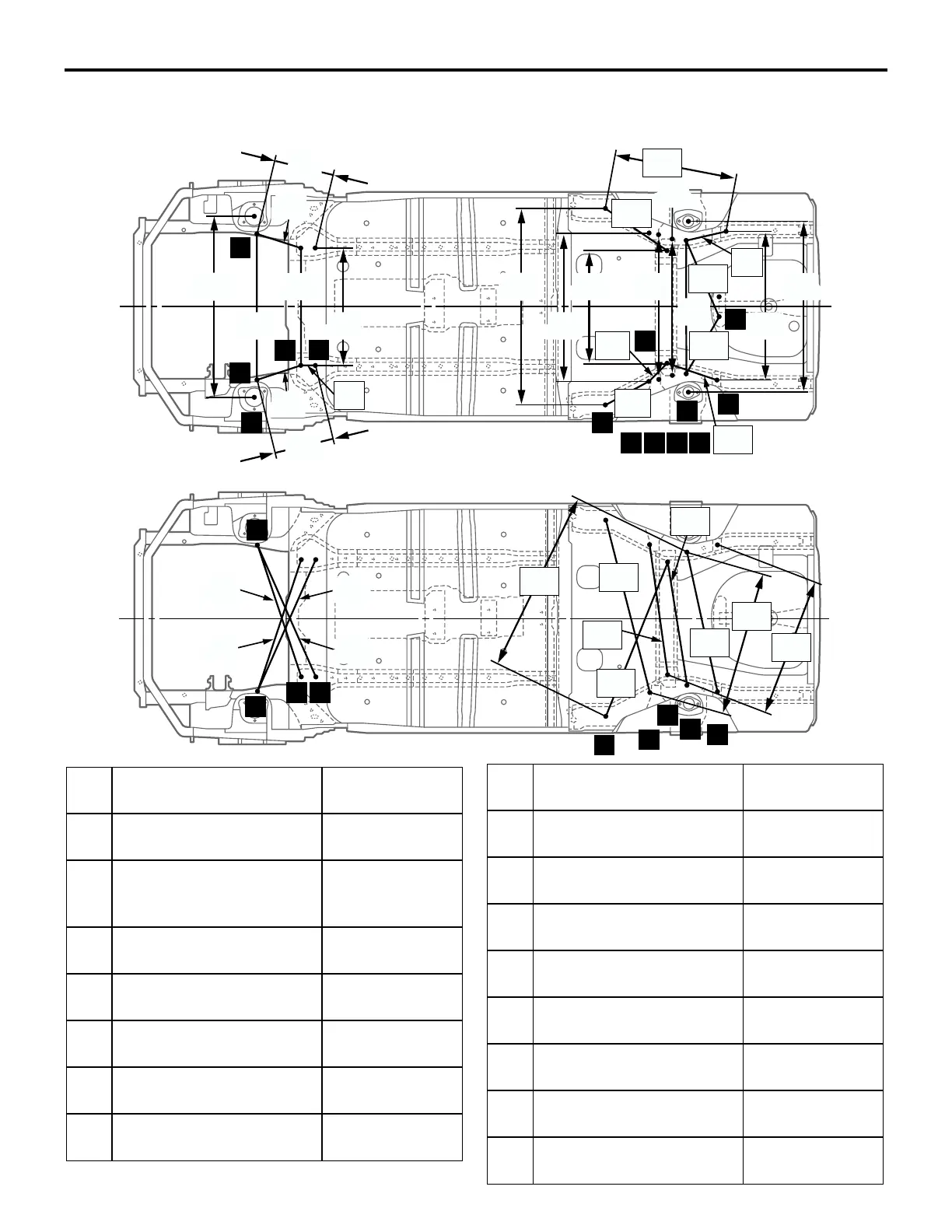

TYPE A (PROJECTED DIMENSIONS)
BODY DIMENSIONS
2-6
SUSPENSION INSTALLATION DIMENSIONS
M4020013000133
AB201751
AB
17
18 19
20
1,186
(46.7)
858
(33.8)
810
(31.9)
902
(35.5)
21
mm (in)
417
(16.4)
375
(14.8)
480
(18.9)
469
(18.5)
86
(3.4)
12
3
14
15
16
1,110
(43.7)
906
(35.7)
372
(14.6)
290
(11.4)
713
(28.1)
370
(14.6)
288
(11.3)
713
(28.1)
13
22
10
23
852
(33.5)
700
(27.6)
999
(39.3)
827
(32.6)
721
(28.4)
100
(3.9)
322
(12.7)
190
(7.5)
AB201752
AB
3
14
16
15
17
18
10
22
20
1,025
(40.4)
876
(34.5)
1,127
(44.4)
852
(33.5)
1,073
(42.2)
857
(33.7)
857
(33.7)
851
(33.5)
882
(34.7)
888
(35.0)
779
(30.7)
765
(30.1)
No. STANDARD
MEASUREMENT POINT
HOLE SHAPE−
SIZE mm (in)
3 Center of crossmember
mounting hole
Round−18 (0.7)
4 Center of front floor
sidemember positioning
hole
Round−25 (1)
10 Center of crossmember
mounting hole
Round−14 (0.6)
12 Center of front shock
absorber mounting hole
Round−110 (4.3)
13 Center of rear shock
absorber mounting hole
Round−68 (2.7)
14 Tip of crossmember
mounting bolt (left)
−
15 Tip of crossmember
mounting bolt (right)
−
16 Center of crossmember
mounting hole
Round−11 (0.4)
17 Trailing arm mounting
position
−
18 Control link mounting
position
−
19 Center of upper link
mounting hole
Round−14 (0.5)
20 Tip of differential support
mounting bolt
−
21 Center of upper link
mounting hole
Round−14 (0.5)
22 Center of upper arm
mounting hole
Round−13 (0.5)
23 Center of crossmember
mounting hole
Round−15 (0.6)
No. STANDARD
MEASUREMENT POINT
HOLE SHAPE−
SIZE mm (in)
