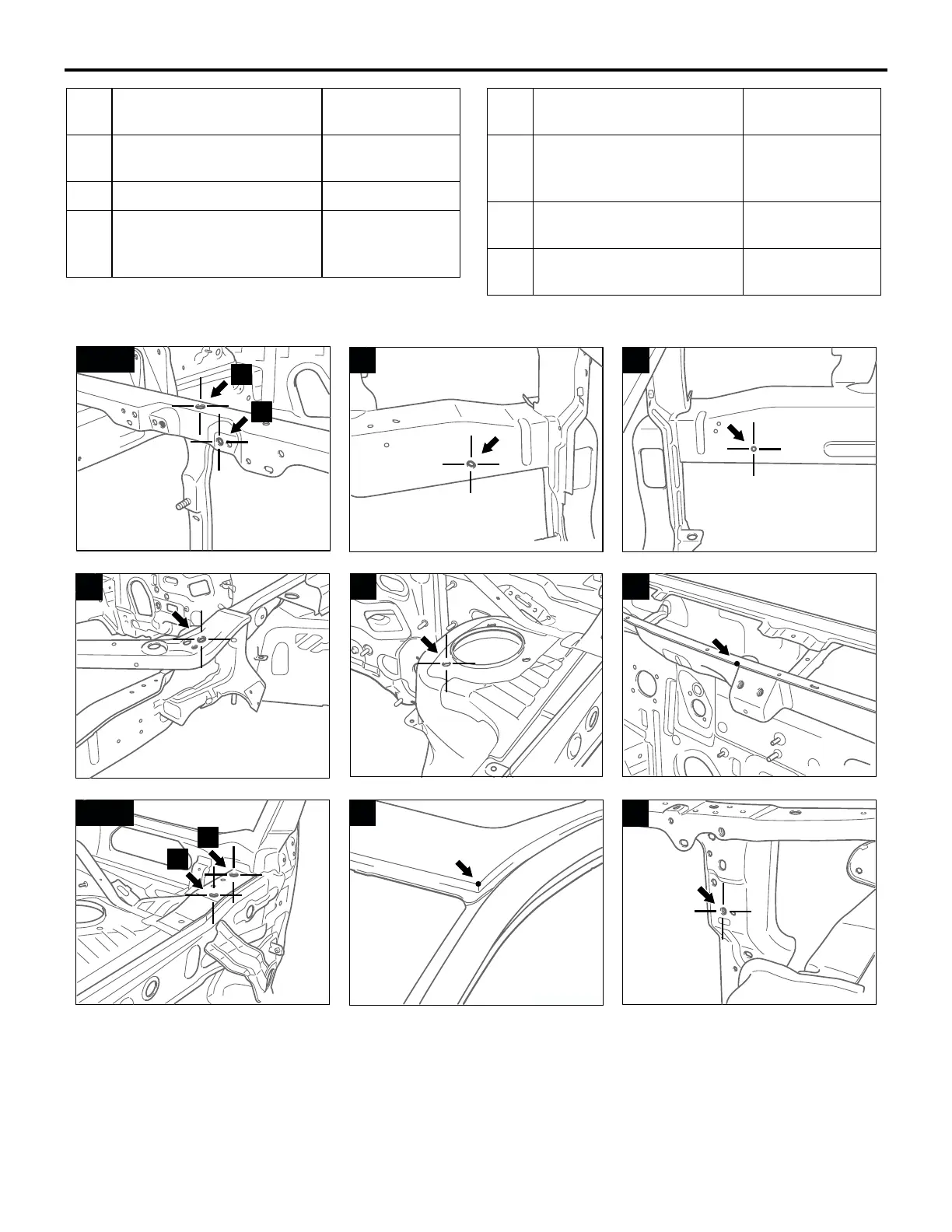

Mitsubishi LANCER EVOLUTION 2003

TYPE B (ACTUAL-MEASUREMENT DIMENSIONS)
BODY DIMENSIONS
2-13
31 Center of hood hinge
mounting hole
Round−9 (0.4)
32 Corner of roof panel
−
33 Center of front end
crossmember outer
positioning hole
Round−20 (0.8)
No. STANDARD
MEASUREMENT POINT
HOLE SHAPE−
SIZE mm (in)
34 Center of front bumper
reinforcement mounting
hole
Round−9 (0.4)
35 Center of headlamp
mounting hole
Round−6.6 (0.3)
36 Center of hood latch
mounting hole
Round−6.6 (0.3)
No. STANDARD
MEASUREMENT POINT
HOLE SHAPE−
SIZE mm (in)
AB201826
AB
24, 36
36
24
AB201827
AB
25
AB201828
AB
26
AB201829
AB
27
AB201830
AB
28
AB201831
AB
29
AB201832
AB
30
31
30, 31
AB201833
AB
32
AB201835
AB
35
