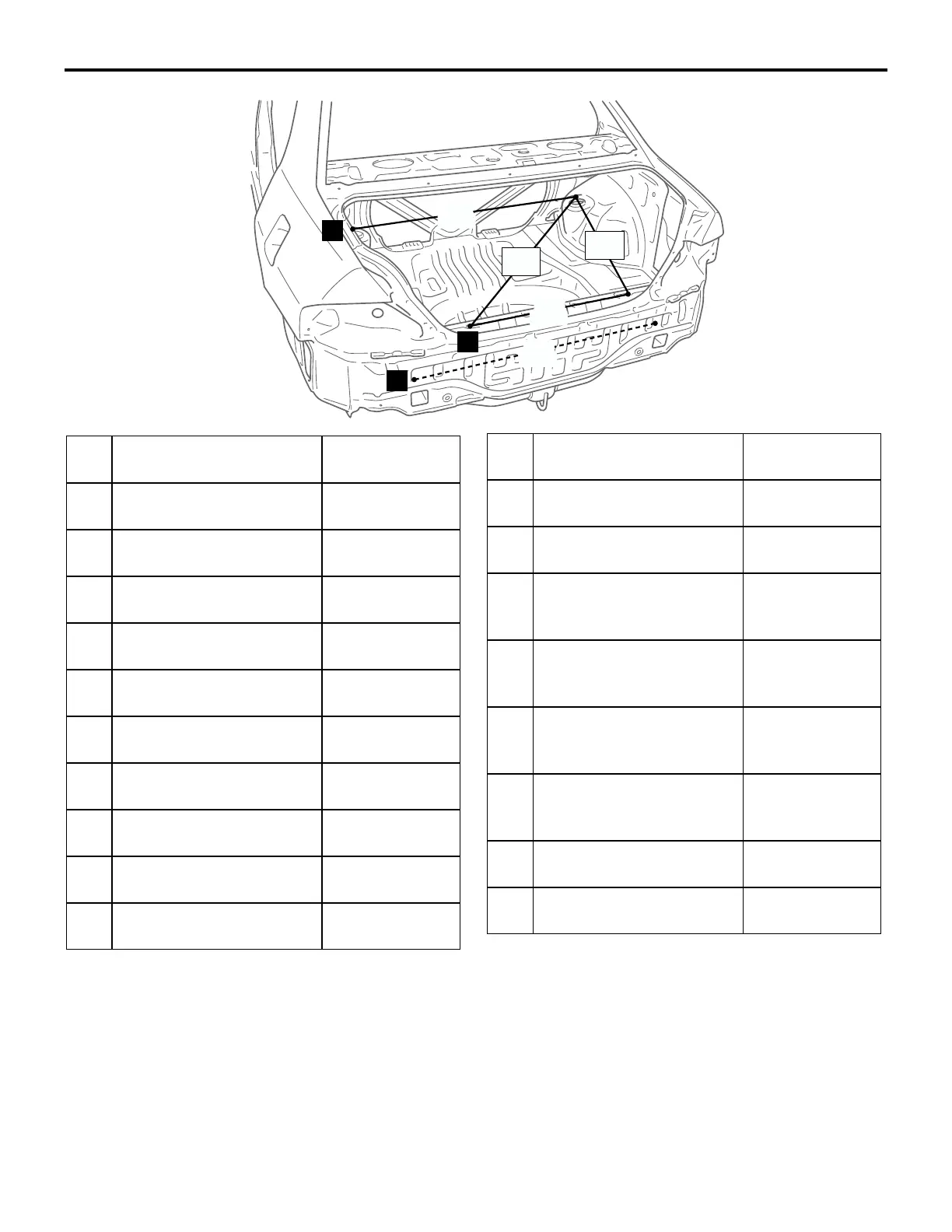

TYPE B (ACTUAL-MEASUREMENT DIMENSIONS)
BODY DIMENSIONS
2-19
AB201765
AB
57
64
65
807
(31.8)
1,106
(43.5)
mm (in)
985
(38.8)
580
(22.8)
940
(37.0)
No. STANDARD
MEASUREMENT POINT
HOLE SHAPE−
SIZE mm (in)
37 Front pillar positioning
notch (upper)
−
38 Front pillar positioning
notch (lower)
−
39 Side roof rail positioning
notch (front)
−
40 Side sill positioning notch
(front)
−
41 center pillar positioning
notch (upper)
−
42 center pillar positioning
notch (lower)
−
43 Side roof rail positioning
notch (rear)
−
44 Side sill positioning notch
(rear)
−
45 Quarter panel positioning
notch (upper)
−
46 Quarter panel positioning
notch (lower)
−
57 Center of rear end trim
mounting hole
Round−8.5 (0.3)
59 Center of front seat rail
mounting hole
Round−14 (0.6)
60 Center of floor carpet
mounting hole
(Body center point)
Round−6 (0.2)
61 Tip of instrument panel
bracket center
(Body center point)
−
62 Center of deck
crossmember mounting
hole (upper)
Round−11 (0.4)
63 Center of deck
crossmember mounting
hole (lower)
Round−11 (0.4)
64 Center of rear shock
absorber mounting hole
Round−12 (0.5)
65 Center of rear bumper
mounting hole
Round−16 (0.6)
No. STANDARD
MEASUREMENT POINT
HOLE SHAPE−
SIZE mm (in)
