FRONT PILLAR
WELDED PANEL REPLACEMENT
3-13

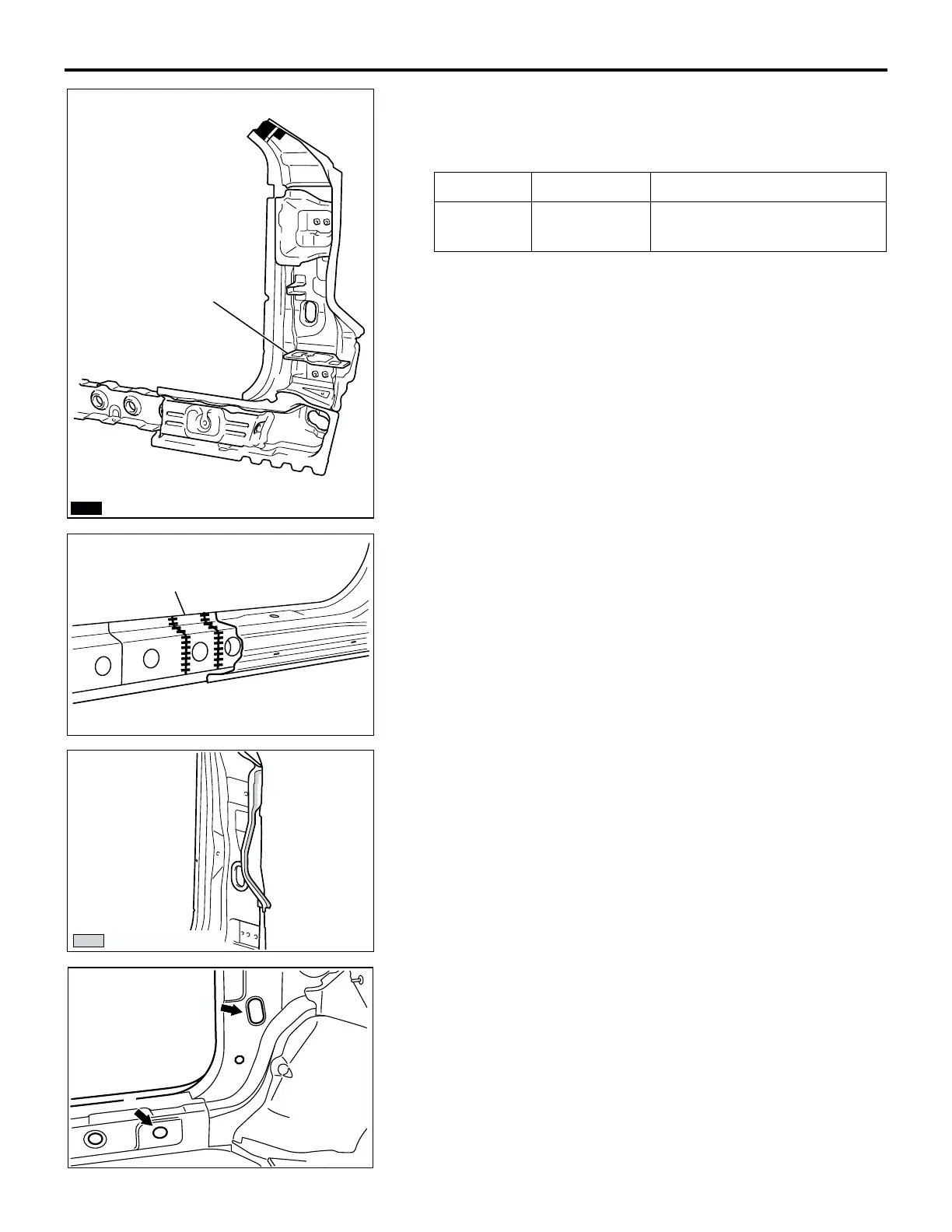

8. When assembling a new front pillar outer parts, apply a front
pillar silencer protector in advance, bury the clearance with
butyl tape then apply structural adhesives in the areas
shown in the figure of the instructions.
9. Weld the side sill reinforcement support then weld the cover
of the side sill outer reinforcement center.
10.Apply in advance body sealant in the areas shown in the
figure of the instructions when assembling the side outer
panel.
11.Assemble the side outer panel, then bolt and tape the hole
and flange with aluminum tape and fill the hole with foam
materials as shown in the figure of the instructions.
FOAM (Hole A): 3Mä ULTRAPRO Panel foam-Yellow
FOAM (Hole B): 3Mä Super panel filler
ADHESIVE TYPE BRAND
Epoxyayresin
adhesive
3Mä Part No.8115 or
equivalent
AB202040
AB
FRONT PILLAR
SILENCER
PROTECTOR
: ADHESIVE
AB200374
AB
COVER
AB200475
AB
: BODY SEALANT
AB202041
AB
A
B
