CENTER PILLAR
WELDED PANEL REPLACEMENT
3-19

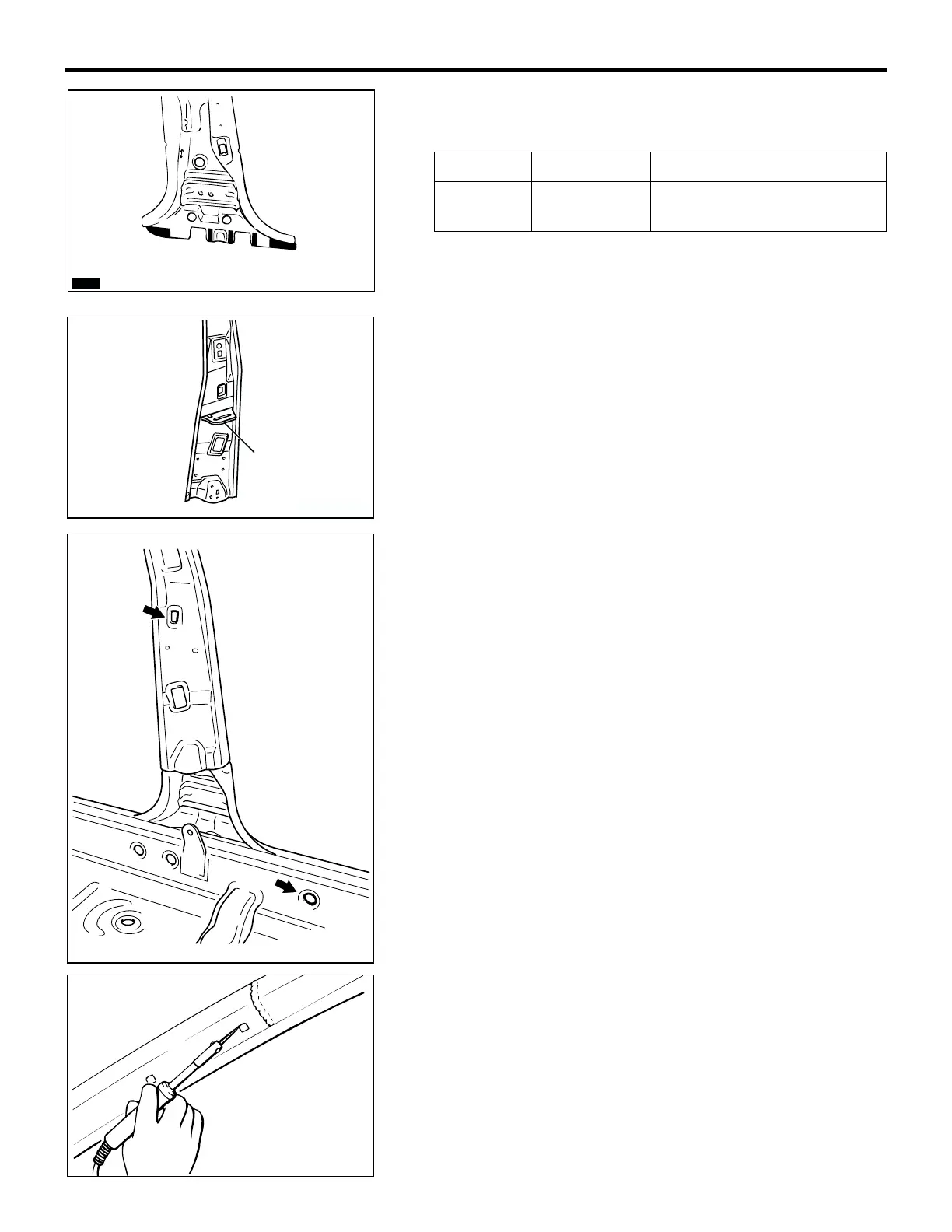

4. When assembling the center pillar reinforcement, apply
adhesives in the areas shown in the figure of the
instructions.
5. When attaching the center pillar inner, attach the center
pillar silencer protector to the center pillar inner, and seal the
holes of the center pillar silencer protector with butyl tape.
6. Assemble the side outer panel, then bolt and tape the hole
and flange with aluminum tape and fill the hole with foam
materials A and B as shown in the figure of the instructions.
FOAM (Hole A): 3Mä ULTRAPRO Panel foam-Yellow
FOAM (Hole B): 3Mä Super panel filler
7. Wait 2 hours after filling the foam materials to remove the
bolt and aluminum tape, then melt the foam materials with a
soldering gun so a clip, etc. can thoroughly be inserted in
the hole filled with foam materials.
ADHESIVE TYPE BRAND
Epoxyayresin
adhesive
3Mä Part No.8115 or
equivalent
AB100796
AC
: ADHESIVE
AB202093
AB
CENTER PILLAR
SILENCER
PROTECTOR
AB202094
A
B
AB
AB100787
