ROOF
WELDED PANEL REPLACEMENT
3-28
ROOF
M4030011000097
AB201909
SYMBOL
OPERATION DESCRIPTION
Spot welding
MIG plug welding ( : indicates two panels to be welded
: indicates three panels to be welded)
MIG spot welding
MIG arc welding (continuous)
Braze welding
Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)
AB
AB202227
AB

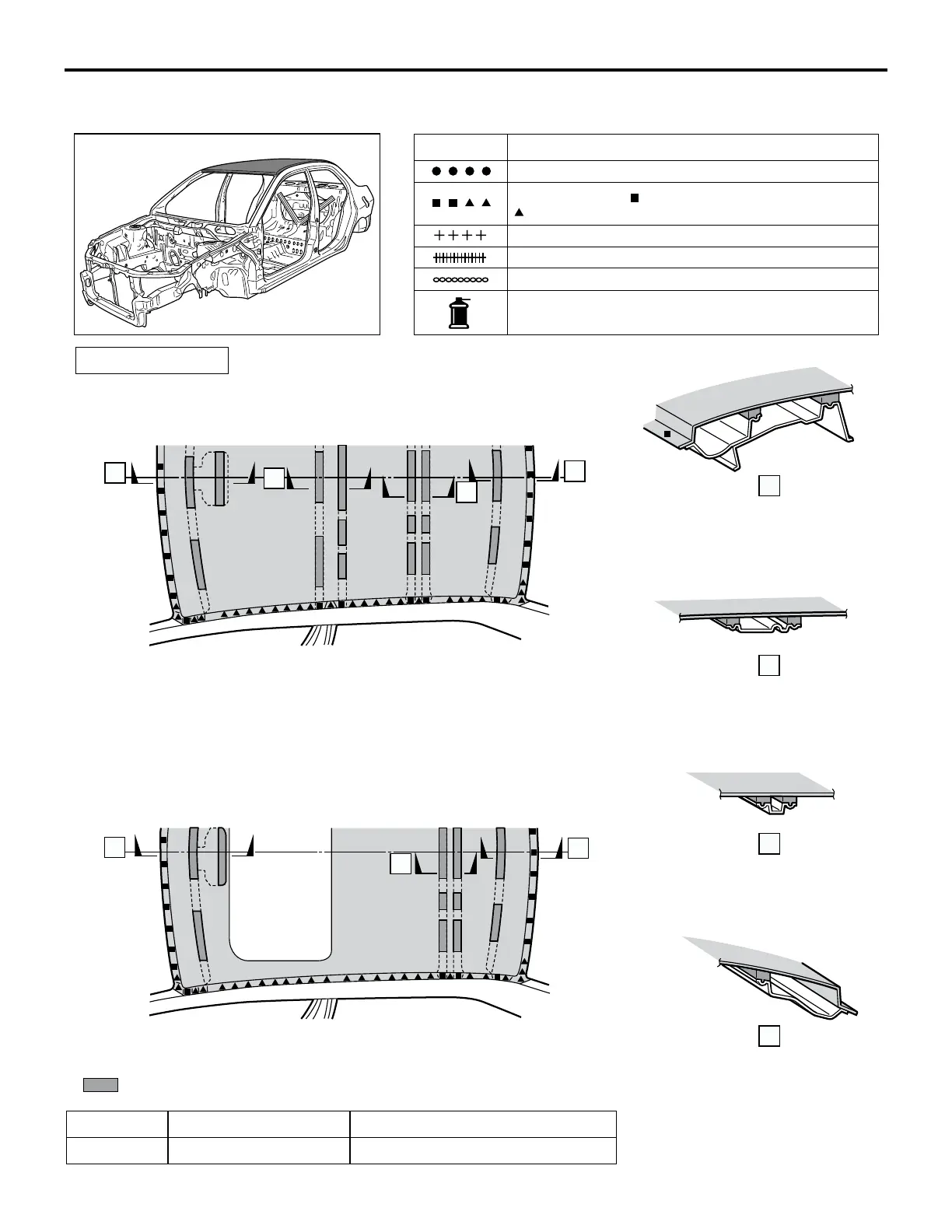

REPAIR WELDS
STANDARD ROOF
SUN ROOF
: ADHESIVE
A
A
B
C
C
D
A
B
C
D
D
ADHESIVE TYPE BRAND
Urethane body sealer 3Mä Part No. 8542 or equivalent
To Next Page
